Suspension bridges are the great projects of humans. And a suspension bridge is made up of three components: deck (the load-bearing portion), railing and suspension cables. The railings of many suspension bridges are made of stainless steel rope mesh, namely stainless steel suspension bridge railing mesh.
It has many incomparable features:
light weight and soft.
Stainless steel suspension bridge rope mesh is light, making the installation easier. And the mesh is very soft, so it will not hurt hands if you touch it.
Aesthetic appearance.
Stainless steel suspension bridge rope mesh has diamond-shape openings and smooth surface. So it makes the suspension bridge a grand landscape.
High flexibility.
The mesh size and rope diameter can be modified according to the bridge.
High strength.
Stainless steel suspension bridge rope mesh is soft, but it has high strength. So it can ensure the safety of the people.
Resistant to corrosion and rust.
Stainless steel suspension bridge rope mesh is made of high quality stainless steel ropes, and it is resistant to rust and corrosion in spite of damp environment for long time. What's more, its life span can be up to more than 30 years.
Non-toxic, environmentally friendly and maintenance-free.
There is no any toxic material in stainless steel suspension bridge rope mesh. And it does not require maintenance

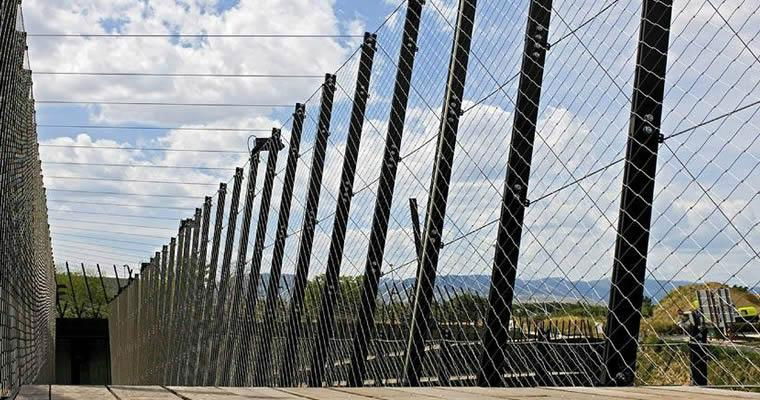

Stainless steel ferrule rope mesh makes the suspension bridge more beautiful and safer.
Stainless steel ferrule rope mesh makes Cliffwalk Capilano Suspension Bridge more attractive and safer.
Stainless steel ferrule rope mesh makes the bridge grand and safe.
Suspension Bridge Railing Mesh Details:
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
|---|---|---|---|---|---|
| Inch | mm | mm | kN | ||
| SSBRM-01 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| SSBRM-02 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| SSBRM-03 | 7 × 7 | 5/64 | 2.0 | 80 × 139 | 3.17 |
| SSBRM-04 | 7 × 7 | 5/64 | 2.0 | 70 × 121 | 3.17 |
| SSBRM-05 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| SSBRM-06 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| SSBRM-07 | 7 × 7 | 3/64 | 1.2 | 51 × 87 | 1.22 |
| SSBRM-08 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22
|
