| Model: | JD3050 |
|---|---|
| Brand: | JD |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | small laser , mini laser , laser etching |
| Price: |
US $1950
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:14 Jan, 2016 |

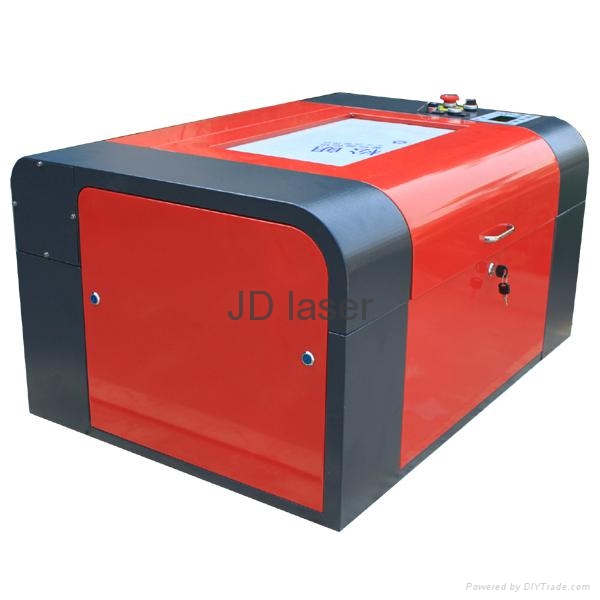

Small Laser Engraving Machine
Special Features:
1. Laser tube: 40W, 60W
2. Software: Lasercut, support output from Coreldraw, Autocad Directly
3. High engraving speed: 0-75000mm/min
4. Honeycomb table for fabric, leather engraving, cutting
Aluminum Blade-piece table for acrylic, wood cutting
Standard parts:
1. Air Pump
2. USB interface
3. Exhaust fan
4. Exhaust Pipe
5. Electrical up down 100mm for Z axis
6. Software + dongle
7. User manual
Technical Parameter:
|
Product model |
JD3050 |
|
Maxi working area |
300x500mm |
|
Laser power (standard configuration) |
40W |
|
Options: 60W |
|
|
Laser Types |
Hermetic And Detached CO2 Laser Tube |
|
Engraving speed |
0-75,000mm/min |
|
Cutting speed |
0-40,000mm/min |
|
Location precision |
<0.01mm |
|
Resetting positioning accuracy |
<0.01mm |
|
Power supply |
AC 220V/50Hz |
|
Gross power |
<1,000W |
|
Operating temperature |
0 - 45° |
|
Operating humidity |
5 - 95% |
|
Minimum shaping character |
English 1×1mm |
|
360°slope engrave |
Yes |
|
Driving system |
stepper |
|
Cooling mode |
Water-cooling and protection system |
|
Auxiliary Devices |
Exhauster And Exhaust Pipe |
|
Software |
Lasercut 5.3 |
|
Graphic format supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
|
Optional |
Red dot light Rotary Clamp |
|
Optional water cooling system |
water pump, water chiller, air cooler |
Available materials: acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials
