Residual Circuit Breaker CE 1P+N 20A RCBO
Product Description
Features
- 6kA & 10kA breaking capacity: RCBOs have a high breaking capacity throughout the range. They operate on current limiting principle ensuring extremely low let through energy under fault conditions.
- Trip free mechanism: The RCBO trips positively even when it's locked in on position.
- Safety terminals: The terminals are touch proof ensuring maximum operator safety against accidental contact (IP20 of protection).
- Uniform components profile: The RCBOs have a uniform profile and can be connected through pin type & fork type busbars. Bottom terminal for fork type busbar is isolated between the poles.
- Energy Saver: The watt loss of the RCBOs is extremely low providing valuable savings over its entire lifecycle.
- Functionality depends on line voltage.
- Single pole with one over-current protected pole and uninterrupted neutral
- Sensitivity non-adjustable
Technical Specifications
- Standards: EN61009-1
- Rated Current: In 10A, 16A, 20A, 25A, 32A
- Voltage: 230V AC
- Sensitivity: 10mA, 30mA, 100mA, 300mA
- Module Width: 1 x 18 mm
- Module Length: 110 mm
- Magnetic range: Curve C - 5(In) to 10 (In)
- Connection Type: Cable, Busbar (Fork & Pin)
- IP Rating: IP20
- Operating Temperature range: -5° C to +40° C Ambient
- Rated Insulation Voltage (Un): 500V
- Impulse Withstand Voltage (Vimp): 2.5 kV
- Mounting: DIN RAIL 35mm
-

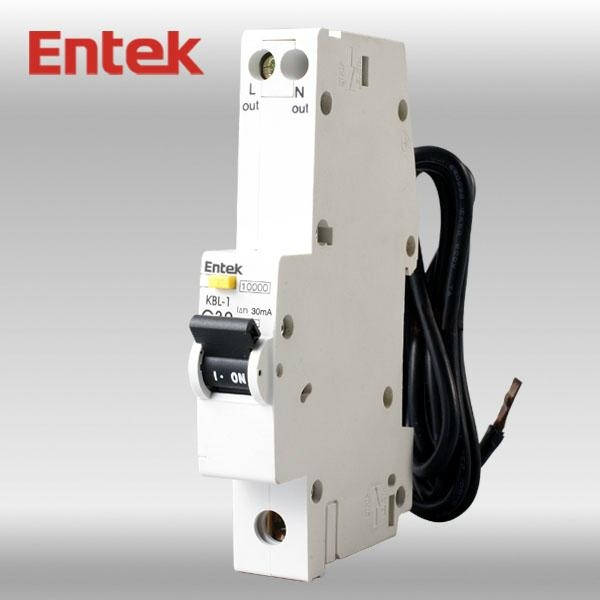

Product Image
