Stainless Steel Wire Rope Zoo Fence Netting

Model:DecorRope
Brand:Carton Case
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:Zoo Fence Netting , Zoo Fence Netting , Zoo Fence Netting
Price: ¥88 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

DongGuan Candurs Cable Mesh Systems Co.,Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:23 Oct, 2023

Product Description

Unique design stainless steel wire rope zoo fence netting is assembled by seamless ferrule/sleeve made from stainless steel wire rope,total 304,316 stainless steel finish. Diamond mesh style. High safety offers, architectural & security fencing application.

DecorRope

zoo fence netting

Feature

Flexible stainless steel rope zoo fence netting has characteristic property and capacity to replace other steel wire mesh in certain application.Sometimes better.

  • Unique design idea.3D-structure,Flexible,elegant,discreet,filigreed,multifuncational.
  • Light weight,High open area % .
  • Corrosion resistant,allows strongh airflow.
  • Total pro-environment,recyclable,no toxic,non flammable.
  • Maintenaance free,don't ask any special cleaning & coating.
  • At least 10 years rust and quality guaranteed.
  • High security and safety.

Widely Application

DecorRope stainless steel wire rope zoo fence netting widely use for building facade, balustrade & railing systems, green wall systems,security fencing,animal enclosure,bird protection net etc.

zoo fence netting

OEM Service

Colourful Solution

Candurs provide colourful stainless steel wire rope for Decorrope and Wovenrope flexible stainiless steel wire rope meshAvailable:

  • Black oxide hand woven stainless wire rope mesh.
  • Colourful ferrules assembled with standard stainless steel wire rope.
  • Colourful stainless steel wire rope assembled with standard ferrules.

Frame Solution

Candurs provide flexible stainless steel cable mesh with wire rod,tubular frame.welded finish.Available:

  • Rectangular panel,trapezoid panel,round shape panel and other special shap panel.
  • Stainless steel wire rod,round tube,square tube and other shape tube.

High Quality

zoo fence netting

Candurs DecorRope stainless steel wire rope ferrule meshhas same back and front face,flat and smooth surface,full DecorRope is assembled by high quality seamless ferrules,offer high safety.save install time etc.Promote your business and brand.

Advantage of DecorRope

  • Precision opening
  • Accurately panel size
  • Variety of edge design plans
  • Special shape panels can be processed

Easily Order

1. Stainless Steel Wire Rope

Available AISI 304 and 316 stainless steel

Rope diameter : 1.0mm,1.5mm,2.0mm,3.0mm,4.0mm

Rope Structure

Rope Diameter 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
Rope Structure 7 x 7 7 x 7 7 x 7 7 x 19 7 x 19

Single Wire TS

(N/mm2)

1770 1770 1770 1570 1570


zoo fence netting

2. Opening Size

Diamond mesh when it is stretched at 60° (standard ),other angle 30° - 90°

Opening size : 20mm x 35mm to 200mm x 347mm

Mesh Structure

Opening (mm)

OW X OH

Wire Diameter
1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
25 x 43 CD1025 CD1525
30 x 52 CD1030 CD1530
35 x 61 CD1035 CD1535
40 x 69 CD1040 CD1540 CD2040
50 x 87 CD1050 CD1550 CD2050 CD3050 CD4050
60 x 104 CD1060 CD1560 CD2060 CD3060 CD4060
70 x 121 CD1070 CD1570 CD2070 CD3070 CD4070
80 x 139 CD1080 CD1580 CD2080 CD3080 CD4080
100 x 173 CD10100 CD15100 CD20100 CD30100 CD40100
120 x 242 CD10120 CD15120 CD20120 CD30120 CD40120
160 x 277 CD10160 CD15160 CD20160 CD30160 CD40160
180 x 312 CD10180 CD15180 CD20180 CD30180 CD40180
200 x 346 CD10200 CD15200 CD20200 CD30200 CD40200

3.Opening Orientation:

DecorRope Mesh Opening Orientation

4. Edge Pattern

Available No.30 different edge pattern finish to meed different install requirement

zoo fence netting L18 Pattern zoo fence netting
L22 Pattern zoo fence netting L24 Pattern zoo fence netting

5. Nets height and length,and Quantity.

6. Drawing is necessary if it is available

7. Other required

Order No : e.g. CD1560 - H - L18- Panel size

Email Us : sales@candurs.com



  •

Lead Time:10-15 days after received the payment
Standards Certificate:CE

Product Image

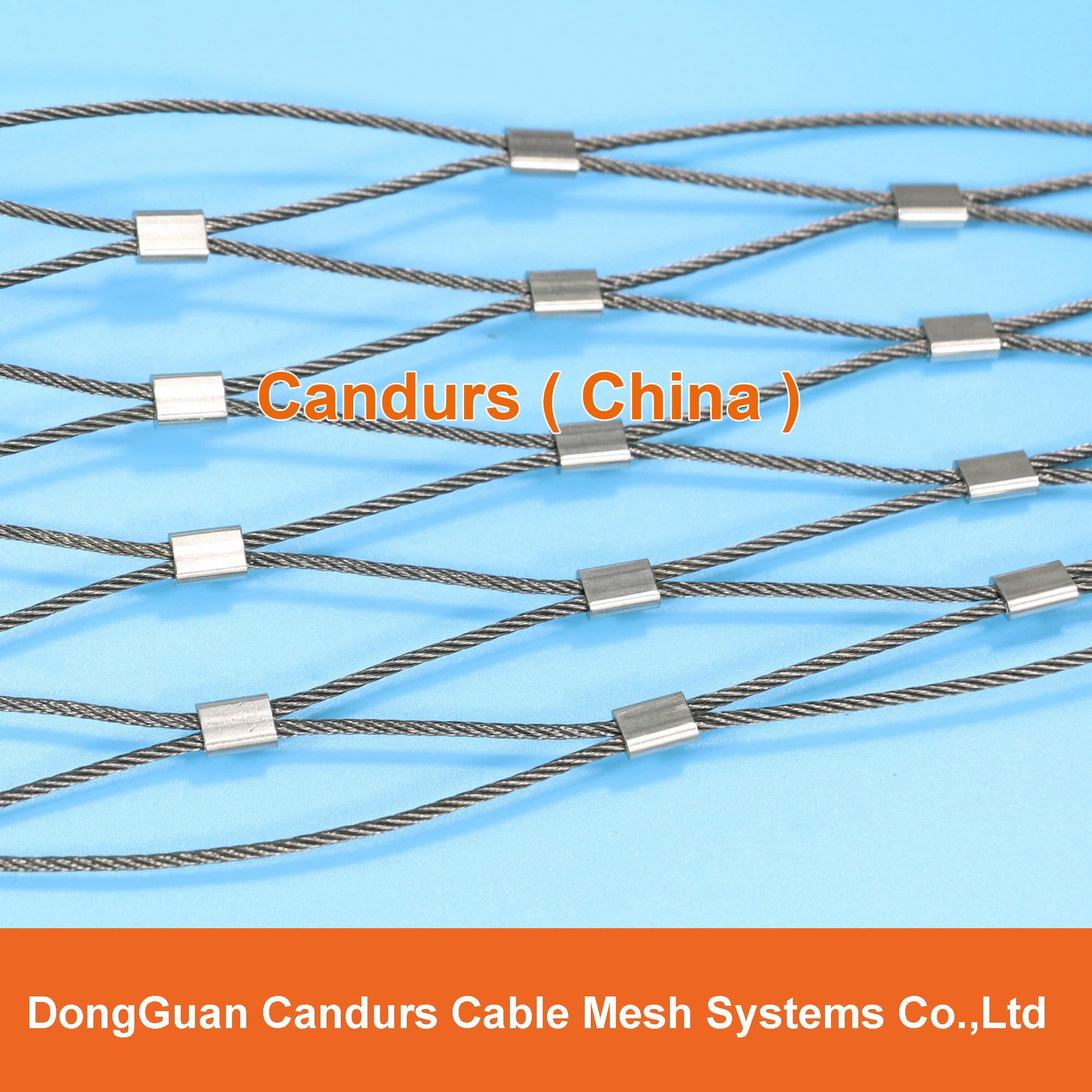

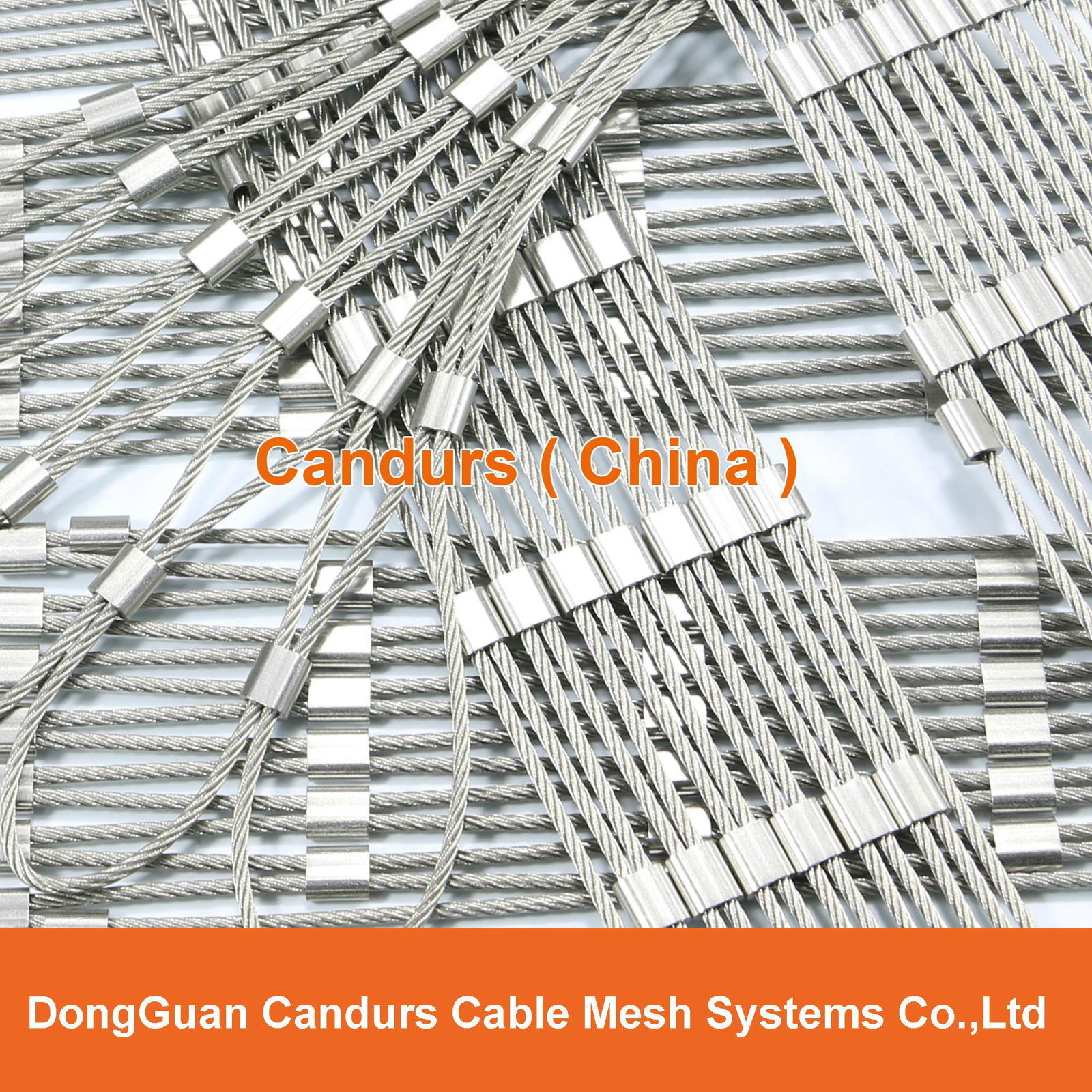

Stainless Steel Wire Rope Zoo Fence Netting 1
Img 1

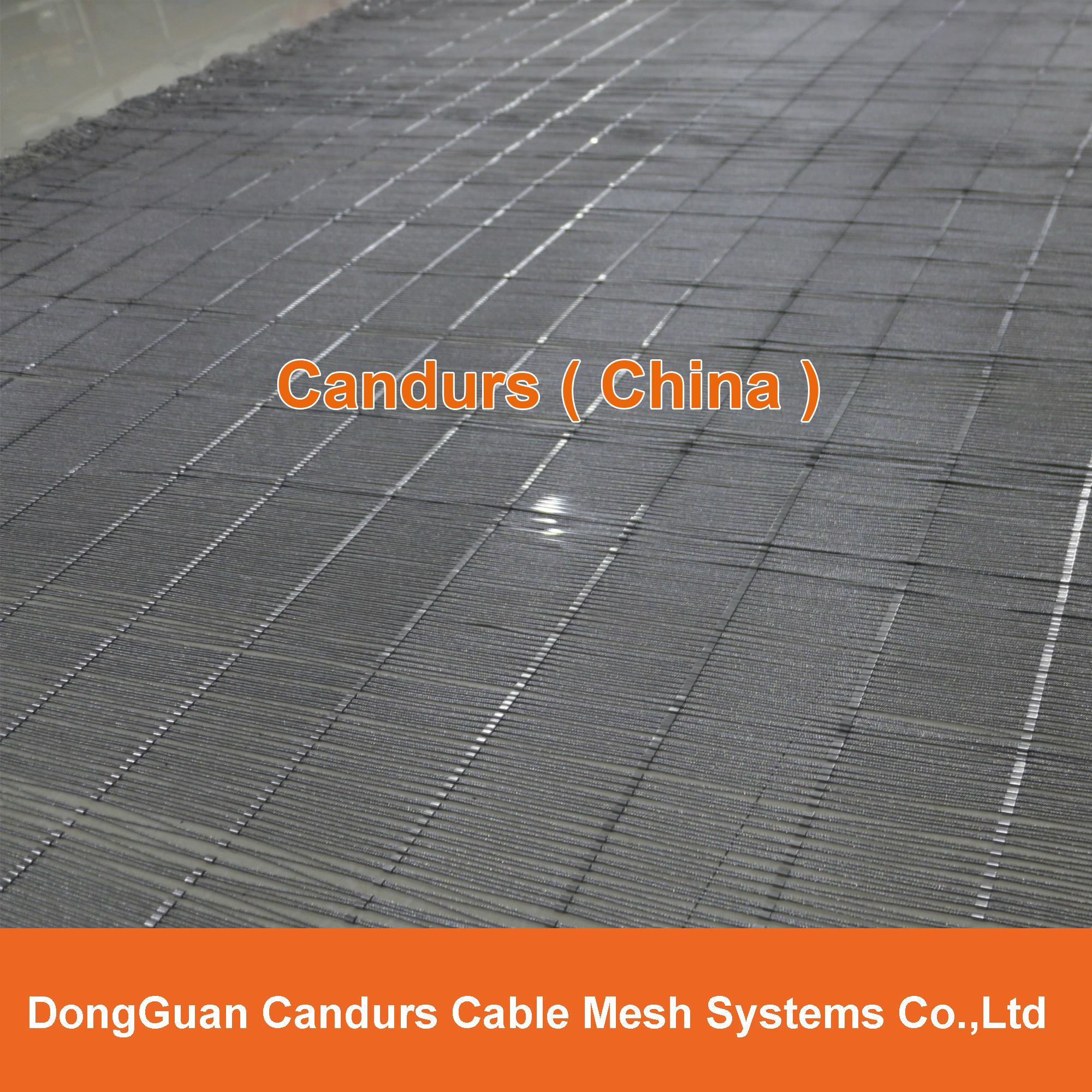

Stainless Steel Wire Rope Zoo Fence Netting 2
Img 2

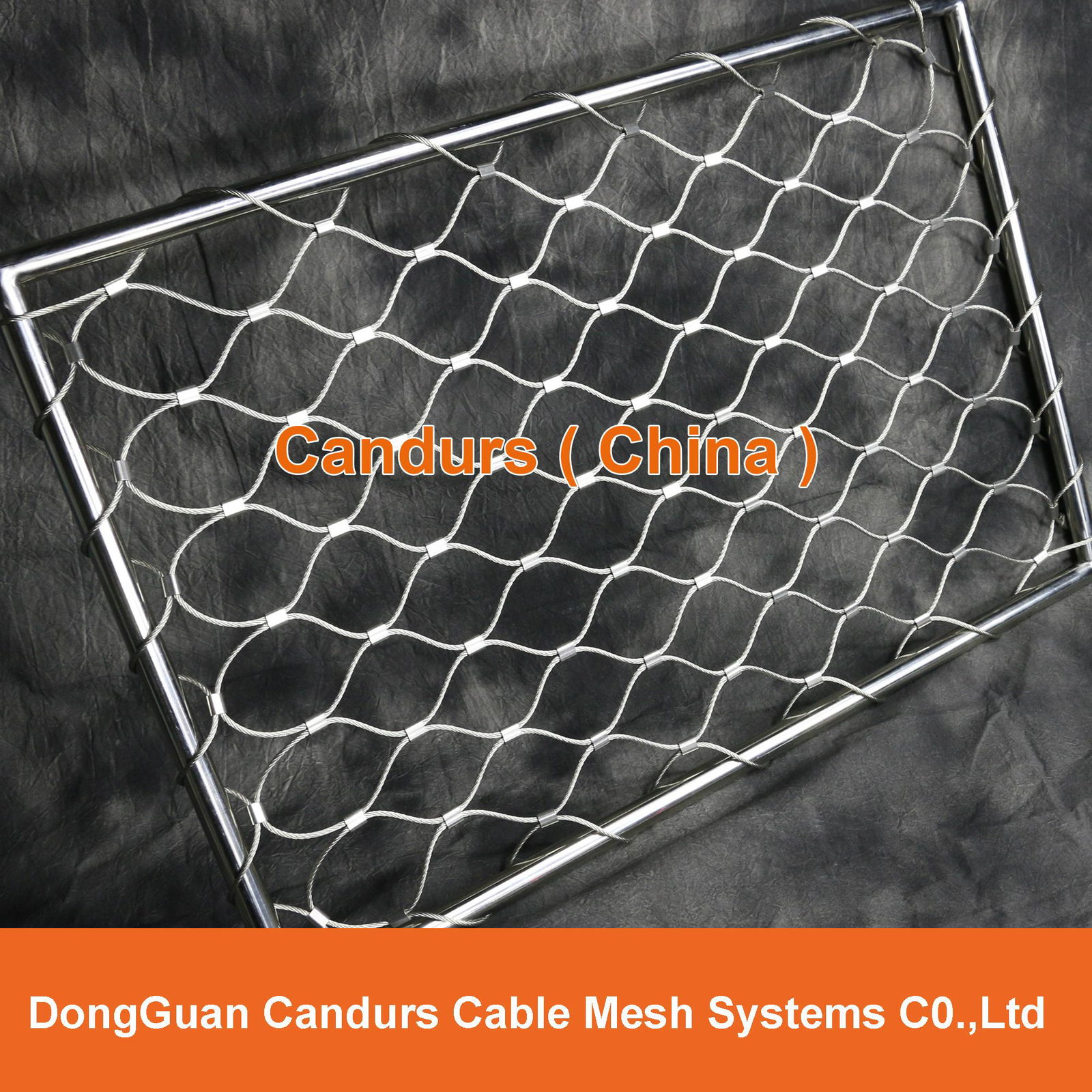

Stainless Steel Wire Rope Zoo Fence Netting 3
Img 3

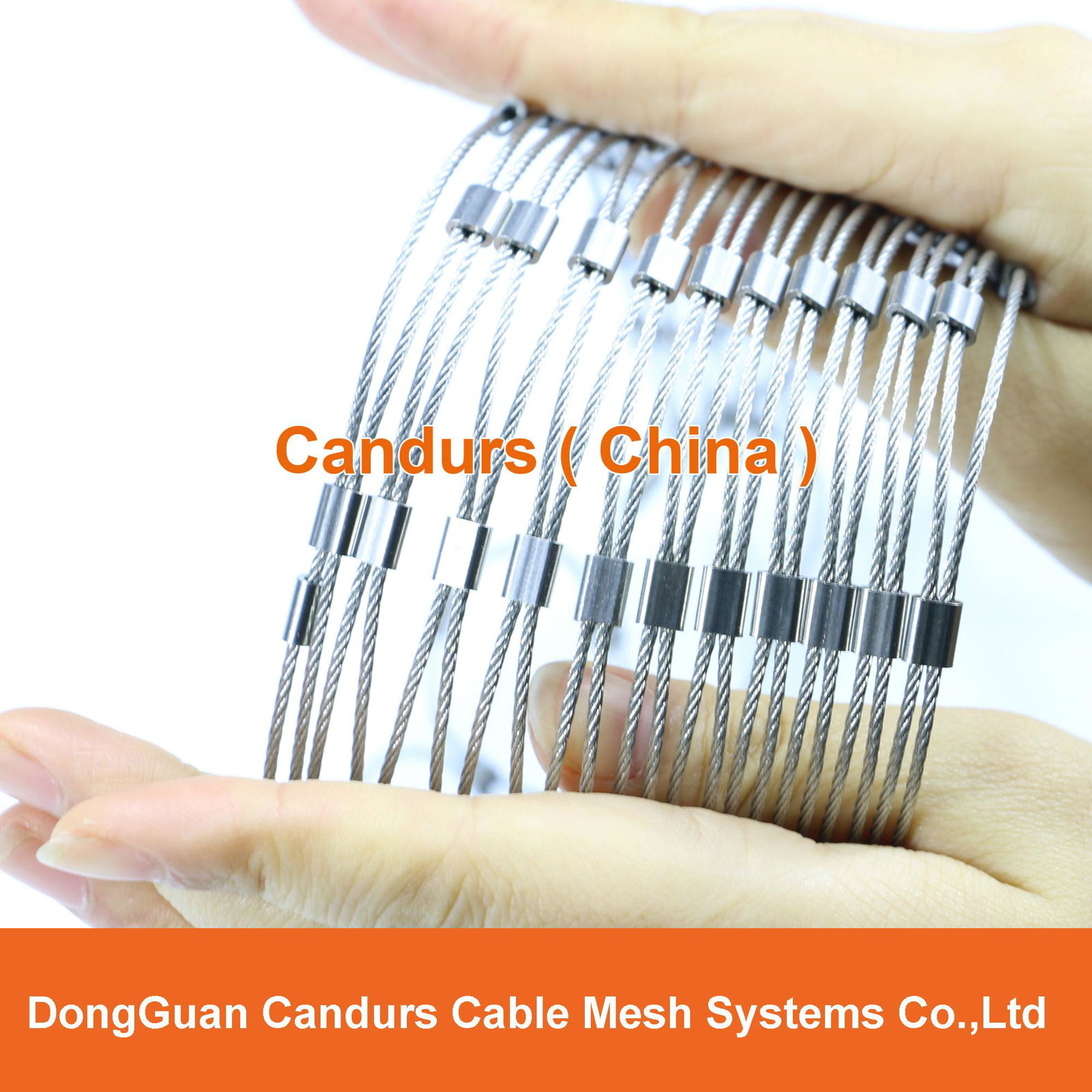

Stainless Steel Wire Rope Zoo Fence Netting 4
Img 4

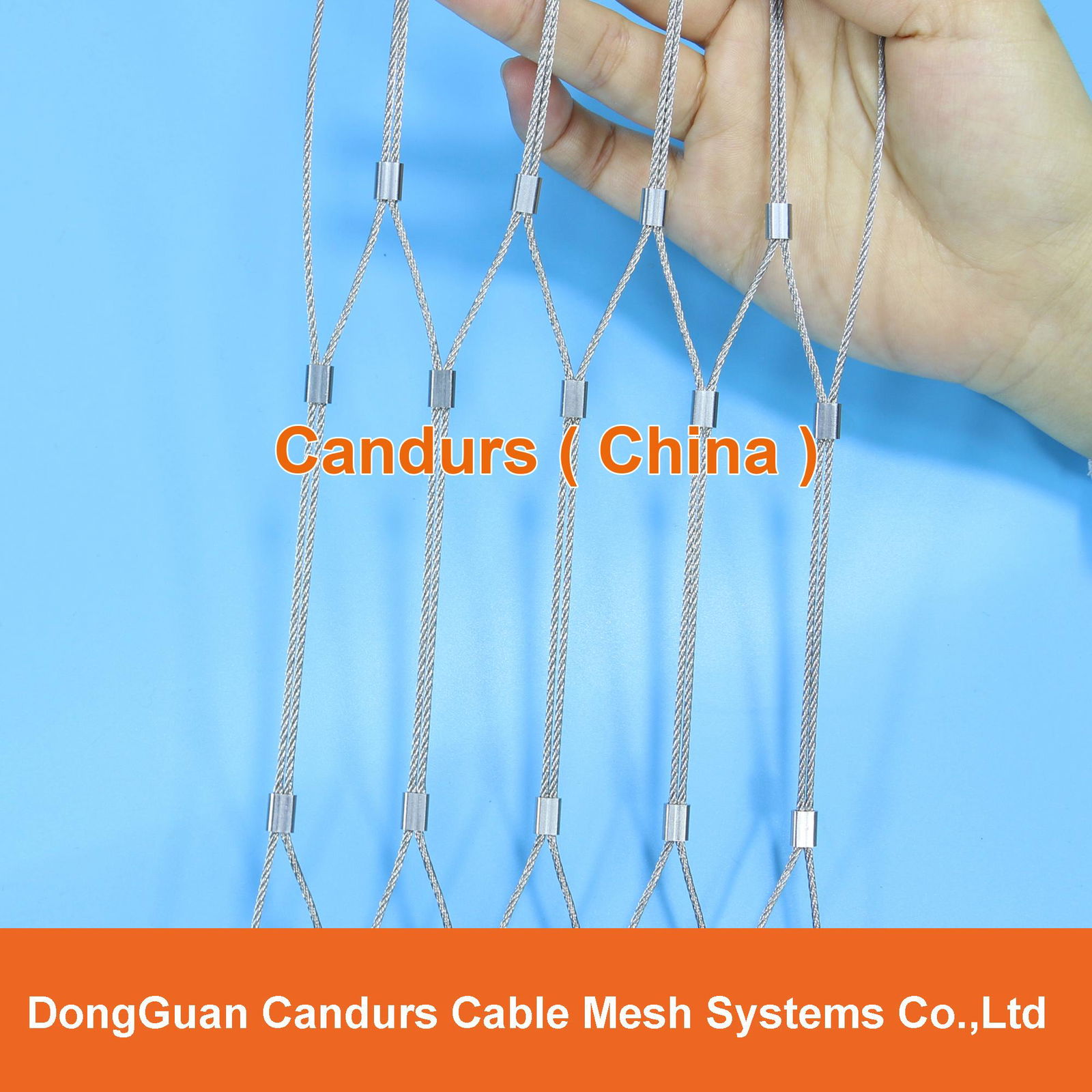

Stainless Steel Wire Rope Zoo Fence Netting 5
Img 5

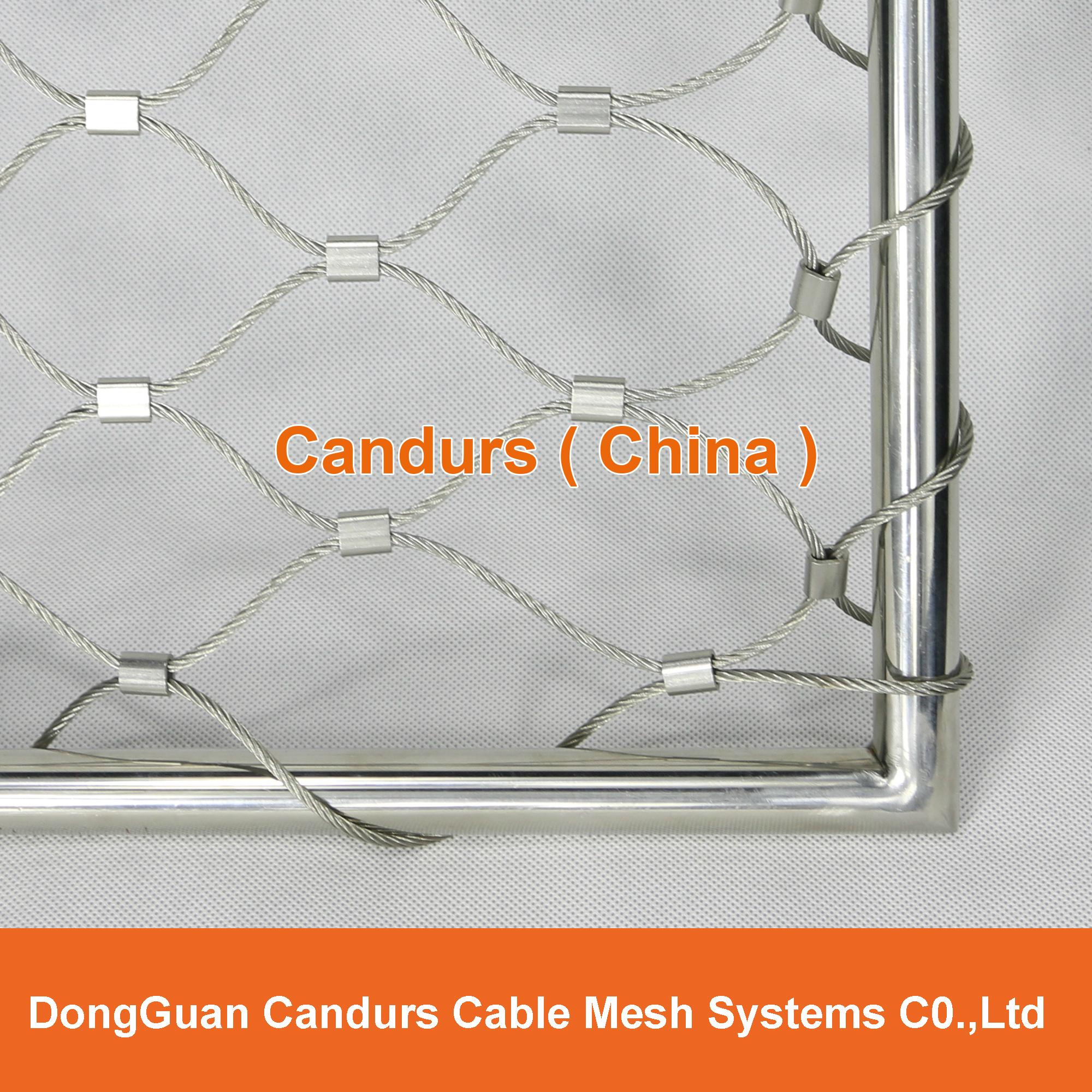

Stainless Steel Wire Rope Zoo Fence Netting 6
Img 6

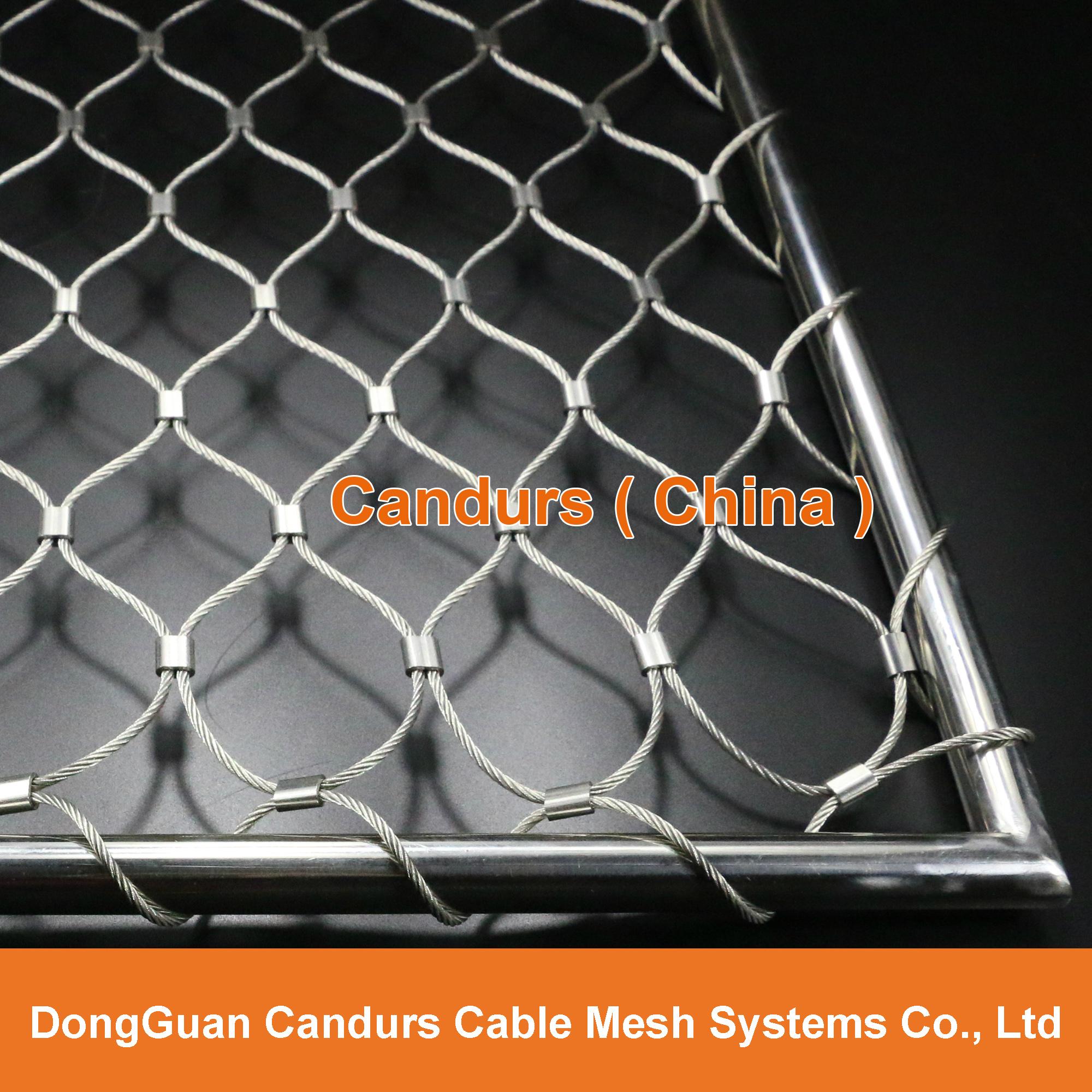

Stainless Steel Wire Rope Zoo Fence Netting 7
Img 7

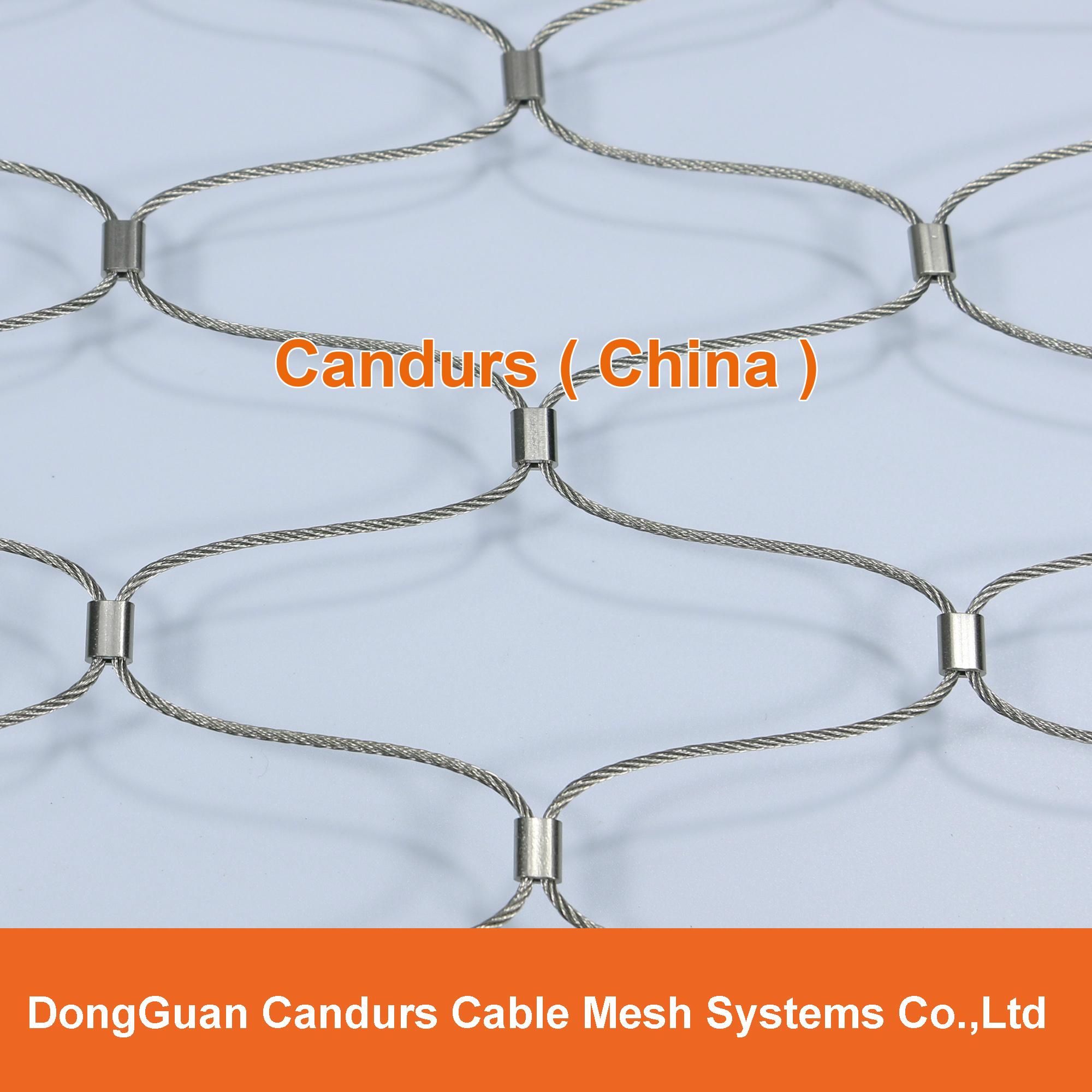

Stainless Steel Wire Rope Zoo Fence Netting 8
