| Model: | SJ-A50|A55|A65| |
|---|---|
| Brand: | HONGTAO |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | film machine , bag-making machine , packaging machine |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: |  | Last Online:30 Apr, 2024 |

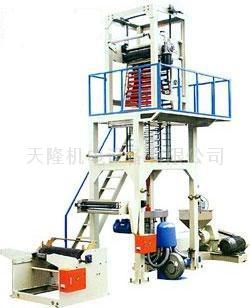

The machinge body is channel steel frame with single rolling friction ,which is suitable for blowing high-low pressure polyethylene industral film and agricultural mulch film.
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ50 | φ55 | φ65 | φ65 |
| Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
|
Max.Extrusion(Kg/h) |
35 |
50 |
65 |
80 |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main moto(kw) | 7.5 | 11 | 15 | 18.5 |
| Power of Tracion main moto(kw) | 0.75 | 0.75 | 0.75 | 0.75 |
| Heating Power(kw) | 11 | 13 | 19 | 21 |
|
Outline diameter(LxWxH) (mm) |
4800x1900x4100 | 5500x2100x4700 | 6500x2300x4900 | 6500x2500x5600 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
| Payment Terms: | TT |
|---|---|
| Packing: | According to customer requirements |
| Lead Time: | According to customer requirements |
