| Model: | 6090 |
|---|---|
| Brand: | AOL |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | Laser cutting machin , laser engrave cnc , laser machine |
| Price: |
US $2500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:11 Jul, 2015 |

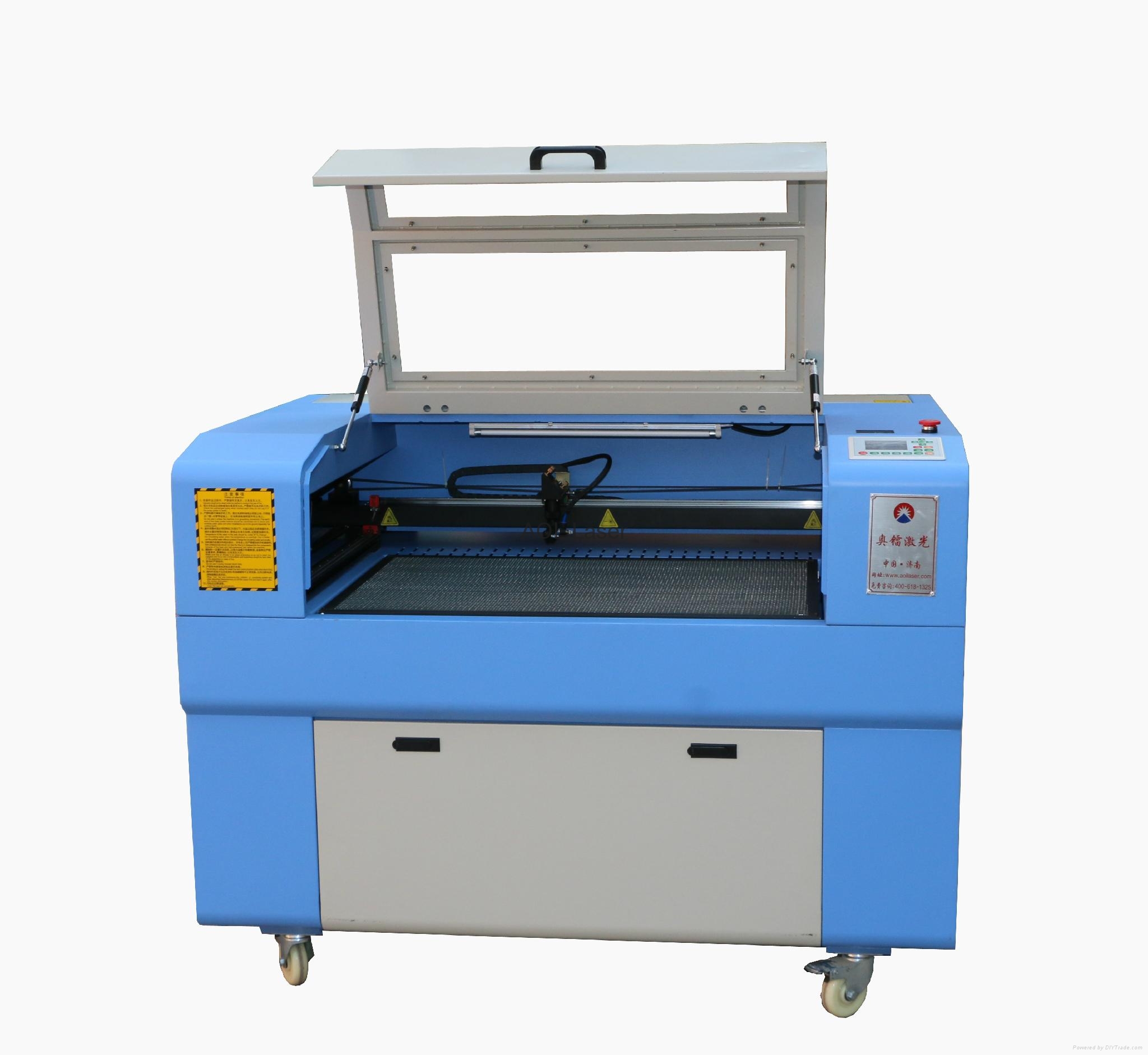

AOL-Laser machine features:
1. Taiwan Hiwin brand liner guide ensures the precise processing effect, which can make delicate and complicated design on Acrylic, wood, PVC, and so on for the Advertisement, handicraft industries, etc.
2. Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost.
3. Stainless roller platform ensures the steady speed and high precision. DSP control system and moderate using environment.
4. Scientific ventilation equipments, high power exhaust fan and strong honeycomb worktable play a vacuum adsorption, which can make the soft material very flat.
Technical Parameters:
|
Model |
AOL-6090 |
|
Focus lens |
USA imported D20mm/FCL50.1mm |
|
Power supply |
AC220/110V±10% 50/60hz |
|
Working area |
600*900mm |
|
Laser power |
80W (Optional:40W/60W/100W/150W) |
|
Max engraving speed |
0-1000mm/s |
|
Max cutting speed |
0-400mm/s |
|
Laser energy control |
1-100% set by hand or software |
|
Working table |
Honey comb/Blade Knife |
|
Locating precision |
<0.01mm |
|
Min shaping character |
Character: 1x1mm Letter:0.7*0.7mm |
|
Operating temperature |
-5℃-45℃ |
|
Resolution ratio |
4500dpi |
|
Control program |
RUIDA |
|
Data transfer interface |
USB |
|
Cooling way |
Water cooling and protection system |
|
Graphic format supported |
The file which Corel Draw, Photo shop, Auto-CAD can identify |
|
Compatible software |
Corel Draw, Auto-CAD |
|
Cutting thickness |
0-25 mm (depends on different materials) |
|
Color separation |
Separation of cutting up to 256 colors |
|
Sloping engraving |
yes |
|
Packing |
Plywood case |
|
Net weight |
200KG |
|
Gross weight |
280KG |
|
Delivery time |
Within 10Working days after receive machine deposit |
