| Model: | different |
|---|---|
| Brand: | MORE SUPER HARD |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Abrasives |
| Label: | centerless wheel , diamond wheel , grinding wheel |
| Price: |
-
|
| Min. Order: | 3 pc |
| Last Online:06 Jul, 2015 |
Application:
Mainly used for processing tungsten cabide,ceramics, silica glass, magnetic materials, stainless steel bar, PCD, PCBN, etc.
Details:

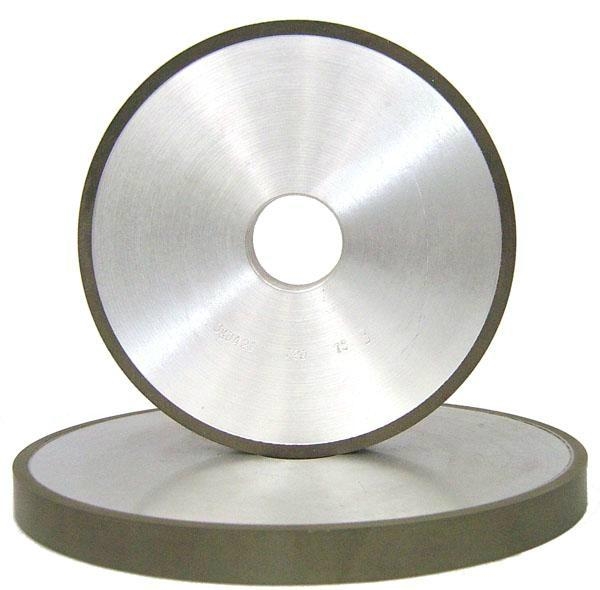

| Product Name | Diamond Centerless Grinding Wheel |
| Abrasive | Diamond/CBN |
| Mateial | Aluminium & Steel |
| Bond | Resin,electroplated,vitrified |
| Size | D:125-600mm,T:60-205mm,H:32-305mm,W:3-15mm |
| Packing | 1pc/box |
| Shapes | 1A1/T3 etc. |
| ODM&OEM | Availiable |
| Sample Cost | Depends on the design, please contact us to discuss further |
Specifications:
| Type | D (mm) | T (mm) | H (mm) | X (mm) | Grit | ||
| 1A1,6A1,9A1 | 200 | 50 | 75 | 10 | W40~100/120
100/120 140/170 170/200 |
||
| 250 | 100 | 75 | 10 | ||||
| 300 | 100,150 | 127 | 10 | ||||
| 350 | 125,150 | 127 | 10 | ||||
| 400 | 150,300 | 203 | 10 | ||||
| 450 | 150,200,300 | 228.6 | 10 | ||||
| 500 | 150,200 | 305 | 10 | ||||
| According to customer's requirements. | |||||||
Main features:
①Efficient batch external grinding.
②High roundness and cylindricity of work piece and good consistency of dimension.
③Good surface finish after fine grinding.
④Used for rough grinding, semi-fine grinding and fine grinding.
