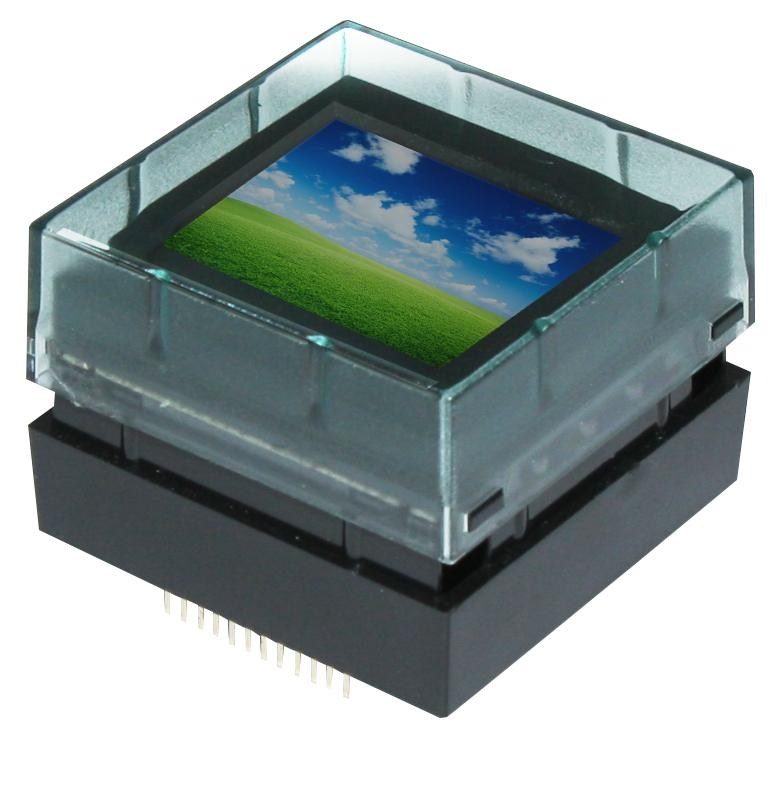

| Model: | CY-1031 |
|---|---|
| Brand: | iDisplay |
| Origin: | Made In Taiwan, China |
| Category: | Electronics & Electricity / Switch / Push Button Switch |
| Label: | OLED display button , push button , LED display |
| Price: |
-
|
| Min. Order: | 100 pc |
| Last Online:13 Jul, 2015 |
DISPLAY SPECIFICATIONS
- Display Type: OLED
- Display Mode: Passive Matrix
- Display Color : 65,536 Colors (Maximum)
- Drive Duty: 1/96 Duty
- Number of Pixels : 96(RGB) x 96
- Pixel Size: 0.049 x 0.191 mm
- Pixel Pitch : 0.069 x 0.207 mm
- Active Area: 19.852 x 19.856 mm
SWITCH SPECIFICATIONS
- Function: Normally Open Contact
- Supply Voltage: 2.4~3.3V
- Insulation Resistance: 100MΩ at 100V
- Bounce Time: ≦5ms
- Life: > 1 million operations
- Initial Contact Resist.: <200MΩ (25MΩ typical)
- Total Travel: 0.118'' – 0.020''
MECHANICAL DIMENSIONS
- Dimension: 32 x 32 x 22.3 mm (LxWxH)
- Window Size: 21.65 x 21.65 mm (LxW)
- Active Area: 19.852 x19.8 mm
*This module is phase out.
