Stringer Pallet Nailing Machine, SH9025
Product Description
|
Complete Produce Line Machine for Wood Pallet Manufacture
|
|
1.Stringer Pallet Nailing Machine, Model : SH9025
|
| Feature |
| 1.Introduction to the whole machine: the whole assembly line is operated by one person, covering a total area of about 10 * 3.2 * 3.7m, with a total power of 3kw |
| 2.The whole machine includes: automatic nailing head + pneumatic stacker + discharge platform |
| 3.Production: 300-500 / 8 hours / shift |
| 4.Tray processing range: length: 700-1300mm; width: 950-1500mm; height: 110-145mm |
| 5.Equipment: 4 N70 nailing guns are equipped as standard, and the position of nailing is checked by photoelectricity, and the number of nailing is 1-3 adjustable |
| 6.Equipment requirements: nail length 45-70mm, nail diameter φ 2.3-2.8mm, air pressure 0.65-0.8mpa |
| 7.Accessories brand: Yaskawa servo motor + drive Taiwan N70 nail gun Taiwan Yade polite moving parts Schneider electrical equipment in France, efumen sensor in Germany, etc |
| |
|
|
| |
| Option Machine List |
|

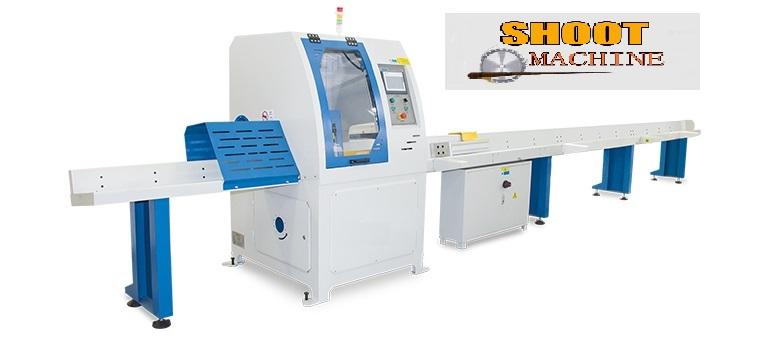

2. Automatic Chop Saw Machine, Model SH6045, SH6060
|
| Look Machine Video,click the Youtube website: |
| https://youtu.be/CNoh97gZgwM |
|
