Woodworking Milling Machine with Sliding table, SH5112AS
Product Description
| Milling Machine with Sliding Table |
| Model |
SH5112AS |
| Diameter of the spindle |
φ35mm or 50mm |
| Max. height of the spindle above the table |
185mm |
| Useful working height of the spindle |
120mm |
| Max. rotating diameter of the tool extending to the below of the worktable |
φ100mm |
| Max. deepness of the tool extending to the below the worktable |
85mm |
| Spindle speed |
6000r/min or 8000r/min or 9000r/min |
| Brake time of the spindle |
≤10s |
| Size of the main worktable |
1126 × 430 mm |
| Max. rotating diameter of the tools |
φ220mm |
| Diameter of the exhausting hole |
φ100mm |
| Size of the sliding table |
310×1220mm |
| Motor |
4kW 380V 50Hz |
| Weight of the machine |
370kg |
| Outside size of the machine |
2470 × 2700 ×1250mm |
| Packing size |
1330x960x1090cm |

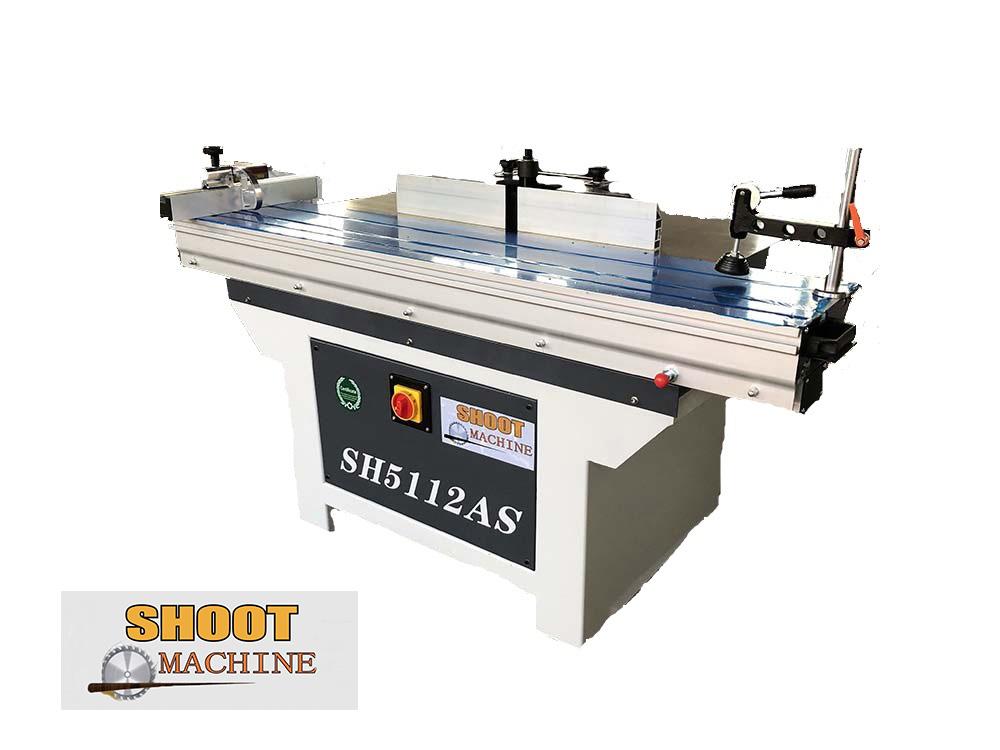

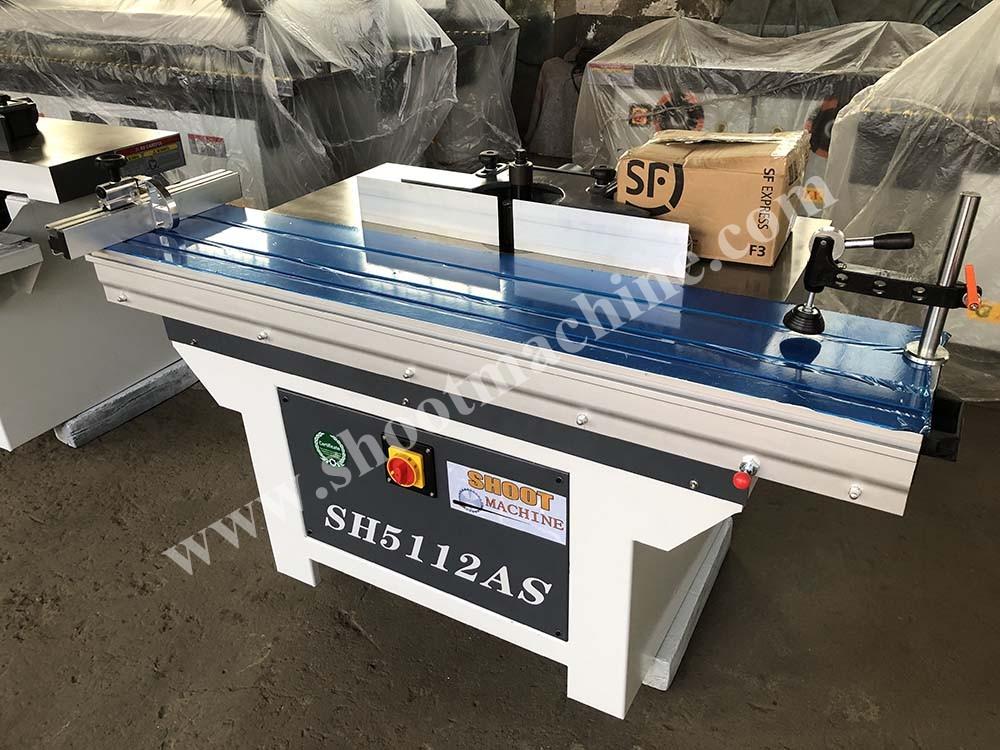

Product Image
