| Model: | - |
|---|---|
| Brand: | SHOOT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Woodworking |
| Label: | woodworking machine , mortiser machine , saw machine |
| Price: |
US $1100
/ pic
|
| Min. Order: | 5 pic |
| Live Chat: | Last Online:18 Oct, 2023 |

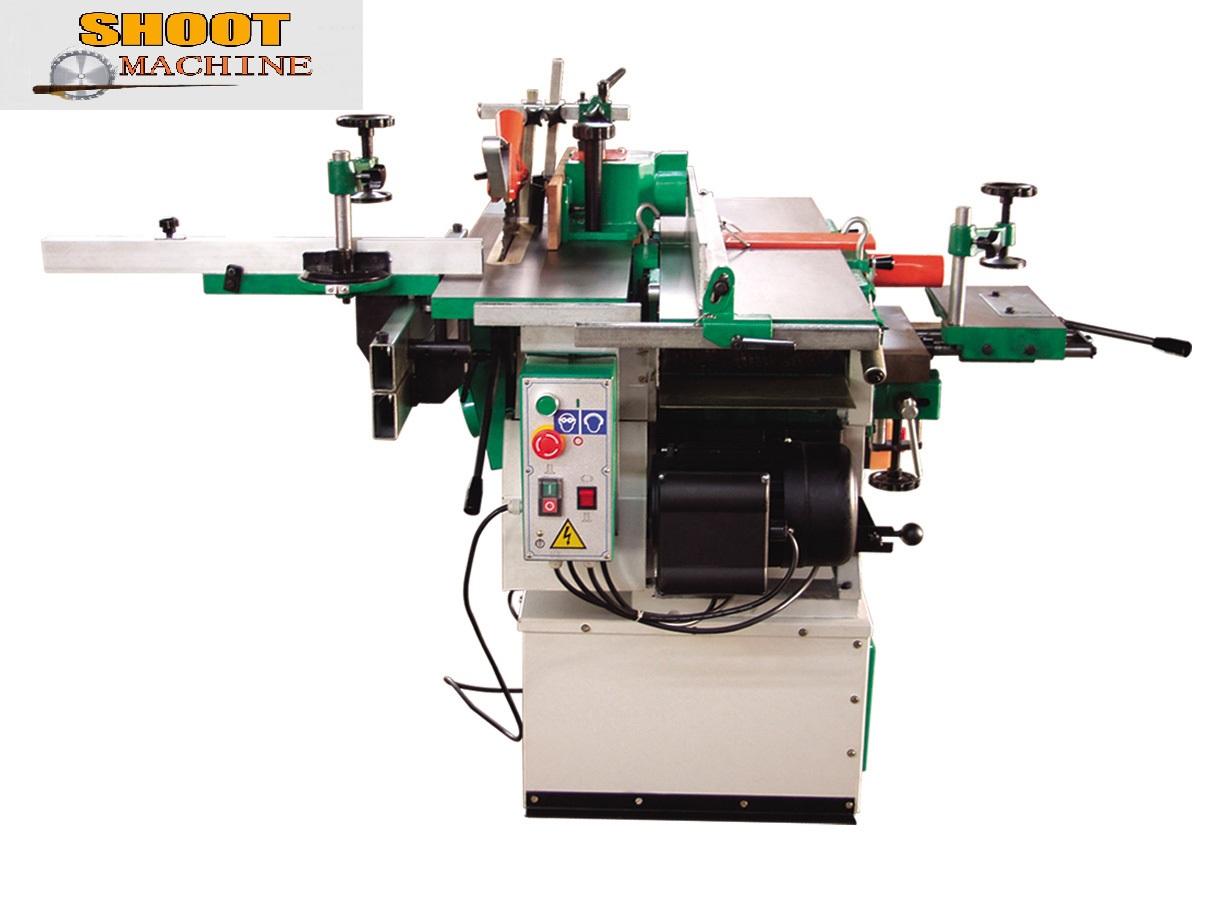

| Model ML392FIII.TGI Combine Woodworking Machine | |
| 1.1 Surface planer | |
| Arbor dia.: | 72mm |
| Arbor speed: | 4000r/min |
| Max.planning width: | 250mm |
| Max.removal: | 3mm |
| Length of surface tables: | 960mm |
| 1.2 Thickness planer | |
| Max.planning width: | 250mm |
| Range of thickness: | 6-120mm |
| Feeding speed: | 6.5m/min |
| 1.3 Round saw | |
| Blade dia.: | 250mm |
| Max. cutting thickness: | 70mm |
| Arbor speed: | 8100r/min |
| Max. crosscutting width: | 300mm |
| 1.4 Milling | |
| Milling tool dia.: | 72x40x20mm |
| Arbor speed: | 8100r/min |
| Arbor height: | (20 spindle)40mm |
| (30 spindle)80mm | |
| Milling height: | 40mm |
| Max. removal: | 8mm |
| Motor: | 1200w 200v 50Hz |
| 1.5 Drilling | |
| Max. aperfure: | 12mm |
| Max. drilling depth: | 90mm |
| 1.6 Other | |
| Motor power: | 1.5kW or 2.2kW or 1.2kW |
| N.W./G.W.: | 210/245kg |
| Packing size: | 113x80x70cm |
Model ML392FIII Combine Woodworking Machine |
|
| 1.1 Surface planer | |
| Arbor dia.: | 72mm |
| Arbor speed: | 4000r/min |
| Max.planning width: | 250mm |
| Max.removal: | 3mm |
| Length of surface tables: | 960mm |
| 1.2 Thickness planer | |
| Max.planning width: | 250mm |
| Range of thickness: | 6-120mm |
| Feeding speed: | 6.5m/min |
| 1.3 Round saw | |
| Blade dia.: | 250mm |
| Max. cutting thickness: | 70mm |
| Arbor speed: | 8100r/min |
| Max. crosscutting width: | 300mm |
| 1.4 Milling | |
| Milling tool dia.: | 72x40x20mm |
| Arbor speed: | 8100r/min |
| Arbor height: | (20 spindle)40mm |
| (30 spindle)80mm | |
| Milling height: | 40mm |
| Max. removal: | 8mm |
| Motor: | 1200w 200v 50Hz |
| 1.5 Drilling | |
| Max. aperfure: | 12mm |
| Max. drilling depth: | 90mm |
| 1.6 Other | |
| Motor power: | 1.5kW or 2.2kW or 1.2kW |
| N.W./G.W.: | 210/245kg |
| Packing size: | 113x80x70cm |
