20 Series 278 High Elastic TPR Caster (Swivel Plate)

Model:-
Brand:Y.H CASTER
Origin:Made In Taiwan, China
Category:Industrial Supplies / Other Industrial Supplies
Label:CASTER , Light duty , WHEEL
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Y.H CASTER CO., LTD.

Biz MemberTaiwan, China
Live Chat:点击这里给我发消息Last Online:05 Jul, 2024

Product Description

20 Series 278 High Elastic TPR Caster



Wheel Diameter50mm (2”)

Wheel Width20mm (7/8”)

Wheel TypeHigh Elastic TPR (Hardness65 Shore A)

Moving Loading30 KG / pcs

Maximum Moving Loading for 4 pcs90 KG

TypeRigidSwivel PlatePlate with side BrakeSwivel Threaded StemThreaded Stem with side BrakeSwivel Friction-ring StemFriction-ring Stem with Total Brake

Bearingwithout Bearing

ColorOrang with Grey



Features

1. Light weight and easy to move (quietlynon-marking)

2. Sturdy and durable

3. High elastic

※High Elastic TPRhigh molecularhigh elasticnon-toxicnon hydrolysisbut not resistant to grease and iron filings



Applicationoffice equipmentmedical equipmenthotelfurnitureelectronic factory



Details

Rigid

Plate Size

58 x 40mm (thk.2.0mm)

Bolt Hole Spacing

46 x 26mm

Total Height

66mm

Swivel Plate

Plate Size

50.5 x 50.5mm (thk.2.0mm)

Bolt Hole Spacing

39 x 39mm

Total Height

65mm

Threaded Stem

Stem Size

3/8" x 19mm

Friction-Ring Stem

Stem Size

11 x 22mm (fit to office chair)



Code

Item

Code

 278 High Elastic TPR Swivel Plate

 20-278JNA12-SW

 278 High Elastic TPR Plate with Side Brake

 20-278JNA12-SB

 278 High Elastic TPR Swivel Threaded Stem (3/8”)

 20-278JNA23-SW

 278 High Elastic TPR Threaded Stem with side Brake (3/8”)

 20-278JNA23-SB

 278 High Elastic TPR Rigid

 20-278JNA-RG

 278 High Elastic TPR Swivel Friction-Ring Stem (11mm)

 23-278JNA61-SW

 278 High Elastic TPR Friction-Ring Stem with Total Brake (11mm)

 23-278JNA61-TB




Product Image

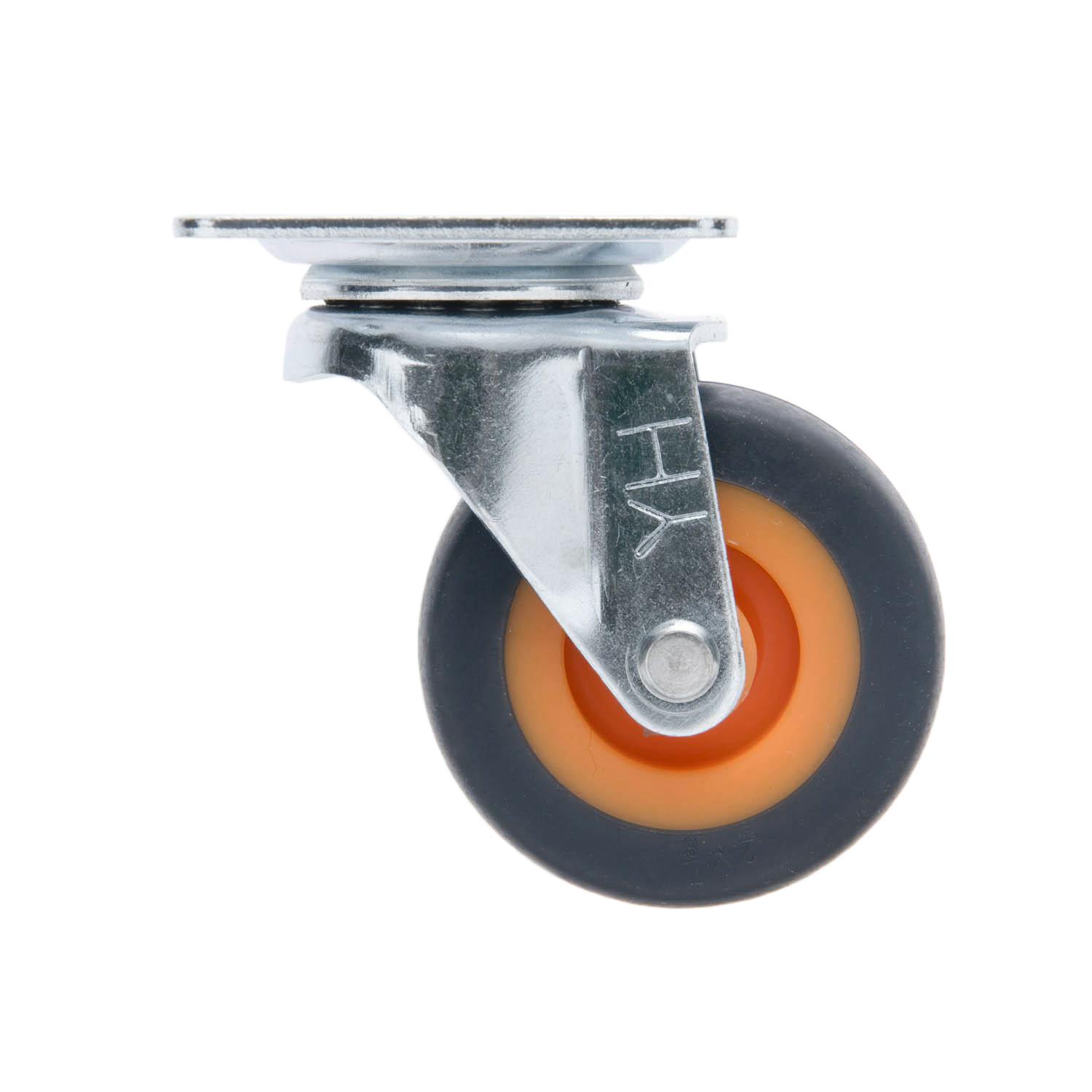

20 Series 278 High Elastic TPR Caster (Swivel Plate) 1
Img 1

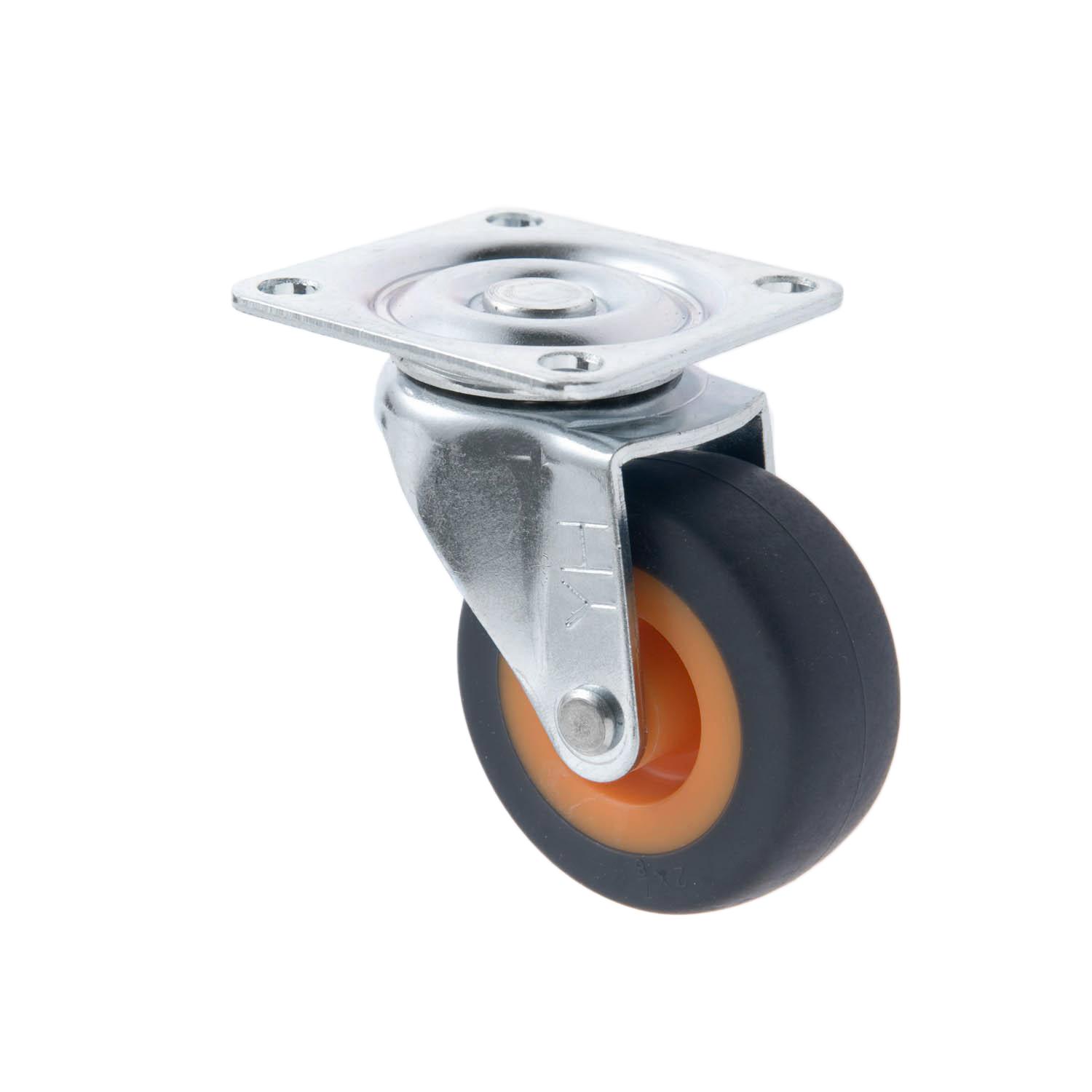

20 Series 278 High Elastic TPR Caster (Swivel Plate) 2
Img 2

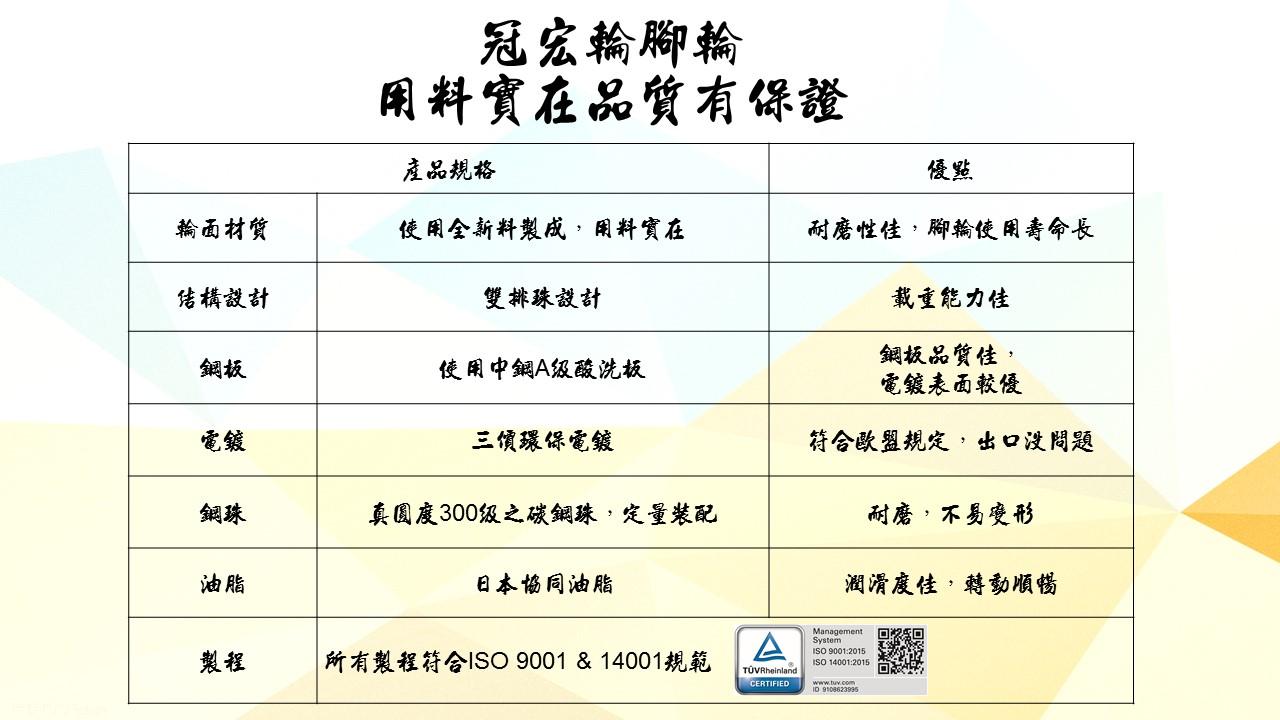

20 Series 278 High Elastic TPR Caster (Swivel Plate) 3
Img 3
20 Series 278 High Elastic TPR Caster (Swivel Plate) 4
Img 4
20 Series 278 High Elastic TPR Caster (Swivel Plate) 5
Img 5
