| Model: | keyoupcb1 |
|---|---|
| Brand: | KEYOU PCB |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Circuit Board |
| Label: | pcb , pcb board , pcb circuit board |
| Price: |
US $5
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:30 Jun, 2015 |

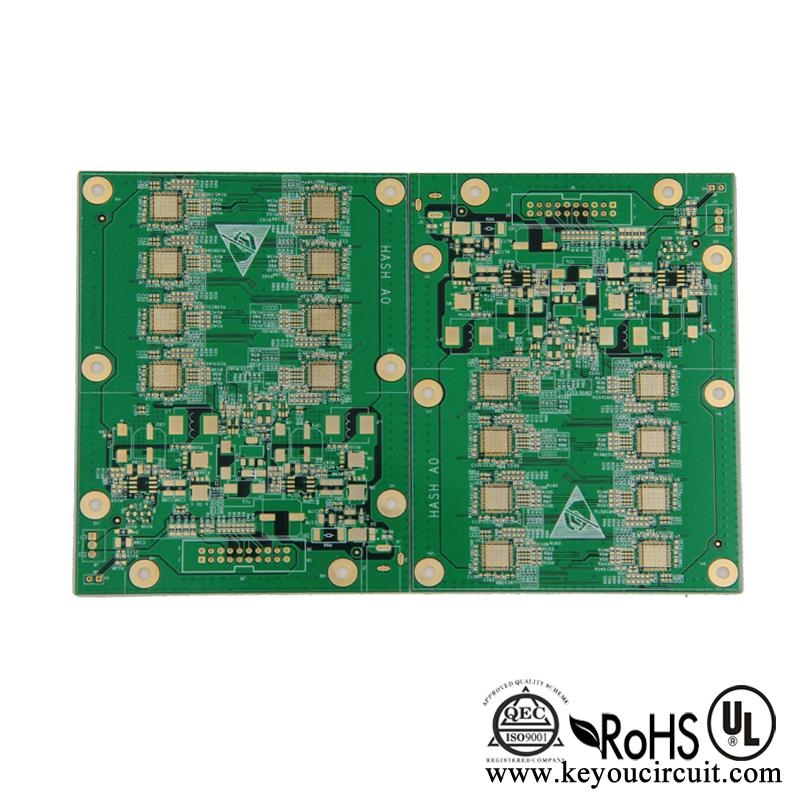

| Name: | pcb printed circuit board |
| Layers: | 4L |
| Board thickness: | 0.2-3.2mm |
| Minimum line width/spacing: | 4 mil |
| Minimum hole diameter: | 0.1mm |
| Finishing copper thickness: | 1oz |
| Surface finishing: | lead free HASL |
| Solder mask: | Yellow |
| Silkscreen: | White |
| Base material: | FR4 |
| Flammability: | 94V0 standard |
| Certificates: | UL,SGS,ISO9001:2008
|
Production Capability for PCB:
| No | Item | Data |
| 1 | Layer: | 1 to 24 layers |
| 2 | Material type: | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
| 3 | Board thickness: | 0.20mm to 3.4mm |
| 4 | Copper thickness: | 0.5 OZ to 4 OZ |
| 5 | Copper thickness in hole: | >25.0 um (>1mil) |
| 6 | Max. Board Size: | (580mm×1200mm) |
| 7 | Min. Drilled Hole Size: | 4mil(0.1mm) |
| 8 | Min. Line Width: | 3mil (0.075mm) |
| 9 | Min. Line Spacing: | 3mil (0.075mm) |
| 10 | Surface finishing: | HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating |
| 11 | Solder Mask Color: | Green/Yellow/Black/White/Red/Blue |
| 12 | Shape tolerance: | ±0.13 |
| 13 | Hole tolerance: | PTH: ±0.076 NPTH: ±0.05 |
| 14 | Package: | Inner packing: Vacuum packing / Plastic bag,Outer packing: Standard carton packing |
| 15 | Certificate: | UL,SGS,ISO 9001:2008 |
| 16 | Special requirements: | Buried and blind vias+controlled impedance +BGA |
| 17 | Profiling: | Punching, Routing, V-CUT, Beveling |
About Us
Founded in 2003, KeYou PCB is a leading manufacturer specializing in Printed Circuit Board(PCB) to serving a wide variety of industrial with their needs.
With 5000 sqm area, advanced equipments and professional teams,KeYou can produce 8000 square meters per month, including single-sided, double-sided, multilayer PCB ( up to 24 layers), copper /aluminum based PCB, high frequency PCB and so on.
Advanced Equipments
The advanced equipments from Japan Hitachi,Europe Opel and Taiwan Universal: drilling machines, etching machines, electroplating line, electricity milling machines, clean machines, flying probe machines etc, to help control product manufacturing costs and improve overall quality.
Choose Us
Our advantages:
Quality guarantee:
| Payment Terms: | L/C, T/T or PayPal |
|---|---|
