| Model: | M1-1700 |
|---|---|
| Brand: | signstech |
| Origin: | Made In China |
| Category: | Construction & Decoration / Kitchen Appliance |
| Label: | Heat-Assist Laminato , Laminator |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:20 Jul, 2016 |
|
Model |
M1-1700 |
|
Application |
Laminating for indoor/outdoor printings |
|
Maximum Working width |
1630mm 64” |
|
Rollers Dia |
130mm |
|
Roller lifting mode |
Single side linkage lifting |
|
Max laminating temperature |
60℃ |
|
Heating mode |
Infrared inner heating |
|
Laminating mode |
Single side |
|
Laminating speed |
o-6m/min |
|
Roller lifting height |
23mm |
|
Roller pre-heating time |
5-10min |
|
Power supply |
AC220±10% 50HZ, Optional 110v, 60HZ |
|
Power input |
1400W |
|
Power consumption |
0.8-1KW/hour |
|
Net weight |
170KG |
|
Size |
1860×1140×680(mm) |
|
Pedal |
With |
With anti-adhere silicone roller, single unit up to 40kg. reliable and long-lasting.
40 ℃heat assistance, can completely avoid the bubbles and snow-state mass while laminating.
Fast processing with speed up to 6m/min.
Unique anti-tint and anti-fold system,No tilt for whole 50 meters laminating.
Can achieve 240 square/hour working by one-man operation or unattended operation.
No wrinkle for thin medias laminating.
Self peeling back paper.
*60W speed adjustable force moment motor
*Anti-scratch stainless steel platform front and back
*130mm silicone roller
*Auto taking up system,Collecting the printing automatically.

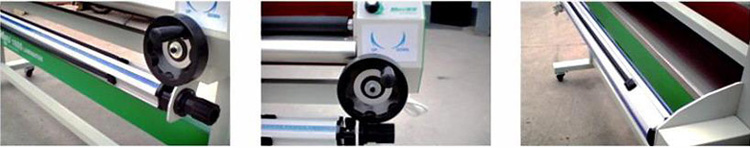

*Hand wheel
*Infrared temperature control device
*With foot-pedal, easy operation
|
|
||
|

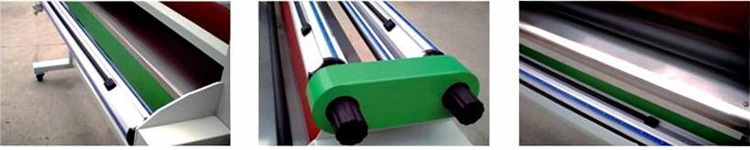

Anti-tilt system |
Single side lifting, easy operation |
Auto take up |
|
|
||
|
Auto take up system |
Friction adjustment system |
Stainless steel platform |
|
|
||
