Shuttle pad printer PM2-150T

Model:	PM2-150T
Brand:	LC
Origin:	Made In China
Category:	Industrial Supplies / Plate Making & Printing Machine
Label:	pad printer , pad printing machine , pad press
Price:	US $2717 / pc
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Summary:	The two-color pad printer is the semi-automatic pad printer with the largest sales volume. It can print more than 40% of small size products, suitable for those who have just entered the pad printing industry to engage in pad printing. According to relevant data, most products only print one color or two colors, so the two-color pad printer is undoubtedly the type that can complete the most printing tasks and has the lowest cost. The shuttle-type two-color pad printer is equipped with a shuttle table with two stations, which in turn can clamp a product for printing, and the overprinting accuracy is relatively high. The video shows the use of a two-color shuttle pad printer to print a lighter.

The two-color pad printer is the semi-automatic pad printer with the largest sales volume. It can print more than 40% of small size products, suitable for those who have just entered the pad printing industry to engage in pad printing. According to relevant data, most products only print one color or two colors, so the two-color pad printer is undoubtedly the type that can complete the most printing tasks and has the lowest cost.
The shuttle-type two-color pad printer is equipped with a shuttle table with two stations, which in turn can clamp a product for printing, and the overprinting accuracy is relatively high. The video shows the use of a two-color shuttle pad printer to print a lighter.

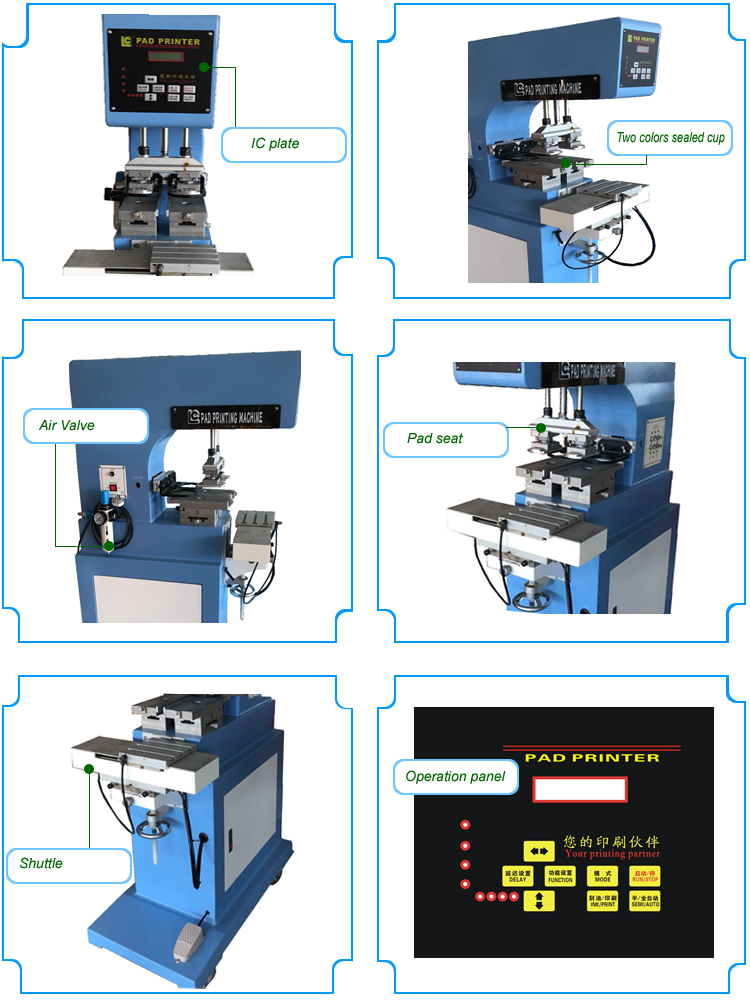

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5

Img 6

Send Inquiry to this Member

LC industrial company Limited

Dongkeng , dongguan , guangdong province

Phone:: 86-769-85329062

Fax:: 86-769-85473469

Contact:: Mr kelven bai (Sales Manager)

Mobile:: 13592766499

Related Products of this Company

This member assumes full responsibility for the content of this listing. DIYTrade accepts no responsibility whatsoever in respect of such content.
To report fraudulent or illegal content, please click here.

Two colors pad printer with shuttle//Structure
Working table	Two stations Shuttle-type working table
Shuttle stroke	125mm
Ink supply system	Closed -type system
Plate type and size	10mm Thick steel plate.
Pad dropping control	Simple-cylinder , simultaneously pressing
Ink drying	Heat air
Two colors pad printer//Usage and characters
Guide	Print both one color and two colors with shuttle worktable， Overprint is more precision. With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%. With coin aluminum structure ensure more stabilization and long life. Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate; Both thick steel plates and thin steel plates installed , Choose according to customer requirements. Can print almost small size objects . So sold very nice in the world. Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations. Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples; One of china famous brand pad printer. Shuttle stroke: 125mm.
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
Two colors pad printer with shuttle//Parameter
Technical parameters	PM2-100T
	Max. plate size: 100×200 mm; Max. worktable area: 125×200mm; Cup diameter: Φ90mm; Max. printing speed: 1000pcs/h; Printable color :2; Max printing area: 85×85mm. Shuttle stroke: 125mm
	PM2-150T
	Max. plate size: 100×250mm; Max. worktable area: 125×200mm; Cup diameter: Φ90mm; Max. Printing speed: 900pcs/h; Printable colors:2; Max printing area: 85×130mm. Shuttle stroke: 125mm
	PM2-200T
	Max. plate size: 100×300mm Max. worktable area: 125×200mm; Cup diameter: 90mm; Max. printing speed: 800pcs/h; Printable colors:2; Max printing area: 85×170mm. Shuttle stroke: 125mm
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package size :0.95×0.6×1.46M; Gross 145KG; CBM: 0.8322CBM
H.S.Code	8443198000
Certicate	CE
Two colors pad printer with shuttle//Advantage
Function	Microcomputer program controlling operating technique ; Streamline design ensure dexterous Appearance impressions; Coin aluminum structure frame coated Gross-Green color paint; Shuttle working table installed to get more precision overprint; Independency pressure adjustment of pad press-printing and picking up ink; Either testing or running mode to operate ; Closed cup to store and coating ink , save ink and protect environment Automatism digital count function; Double colors pad printing with drying through blowing hot air: Ten grade printing speed setting, auto, semi-auto, testing operation mode setting; Sealed cup driven by independent cylinder , ink remove clean
