Shuttle pad printer(P2-616C)

Model:P2-616C
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pad printer , pad printing machine , Tempo printer
Price: US $4206 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:24 Jun, 2019

Product Description

Two colors pad printer with shuttle //Structure

Working table

Two stations Shuttle-type working table

Shuttle stroke

200mm

Ink supply system

Closed -type system

Plate type and size

0.3mm Thin steel sheets.

Pad dropping control

Simple-cylinder , simultaneously pressing

Ink drying

Heat air

Two colors pad printer//Usage and characters

Guide

  • Print both one color and two colors with shuttle worktable, Overprint is more precision.
  • With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
  • With coin aluminum structure ensure more stabilization and long life.
  • Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
  • Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
  • Can print almost small size objects . So sold very nice in the world.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
  • One of china famous brand pad printer.
  • Shuttle stroke: 200mm
  • Installing 140mm diameter sealed cup for more big size products.

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Two colors pad printer with shuttle//Parameter

Technical parameters

P2-614C

  • Plate size: 150×350 mm;
  • Max. worktable area: 165×200mm;
  • Max. printing speed: 800pcs/hr;
  • Printable colour :2;
  • Max printing area:130×170mm;
  • Shuttle stroke: 200mm;
  • Height adjustment of table: 200mm;
  • Diameter of sealed cup: Φ140mm.


P2-612C

P2-616C

  • Max. plate size: 150×300 mm;
  • Max. worktable area: 165×200mm;
  • Max. printing speed: 850pcs/hr;
  • Printable colour :2;
  • Max printing area:130×130mm;
  • Shuttle stroke: 200mm;
  • Height adjustment of table: 200mm;
  • Diameter of sealed cup: Φ140mm.
  • Max. plate size: 150×400 mm;
  • Max. worktable area: 165×200mm;
  • Max. printing speed: 700pcs/hr;
  • Printable colour :2;
  • Max printing area:130×220mm;
  • Shuttle stroke: 200mm.
  • Height adjustment of table: 200mm.
  • Diameter of sealed cup: Φ140mm

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package dimension:1.21×0.68×1.55m
  • Gross weight: 155kg
  • CBM: 1.275

H.S.Code

8443198000

Certicate

CE

Two colors pad printer with shuttle //Advantage

Function

  • Microcomputer program controlling operating technique ;
  • Streamline design ensure dexterous Appearance impressions;
  • Coin aluminum structure frame coated Gross-Green color paint;
  • Shuttle working table installed to get more precision overprint;
  • Independency pressure adjustment of pad press-printing and picking up ink;
  • Either testing or running mode to operate ;
  • Closed cup to store and coating ink , save ink and protect environment
  • Automatism digital count function;
  • Double colors pad printing with drying through blowing hot air:
  • Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
  • Sealed cup driven by independent cylinder , ink remove clean;
  • 140mm sealed cup installed for large size products.

Product Image

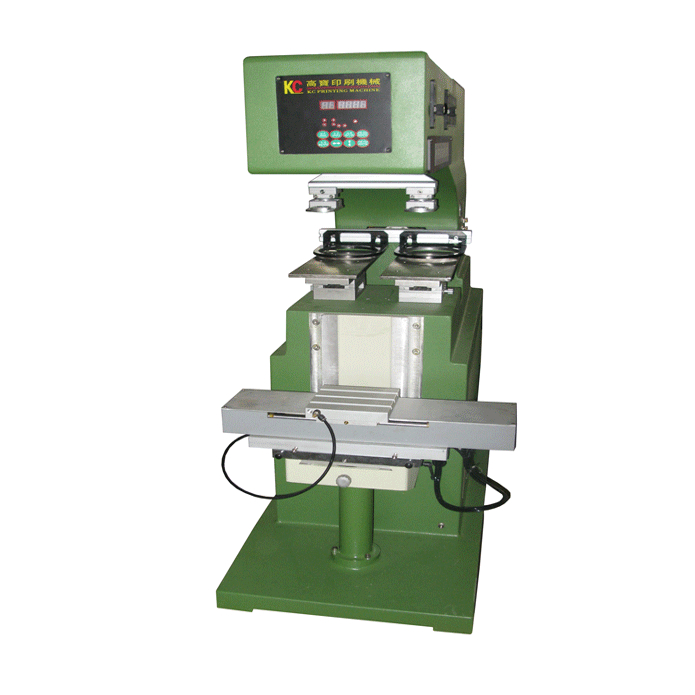

Shuttle  pad printer(P2-616C) 1
Img 1

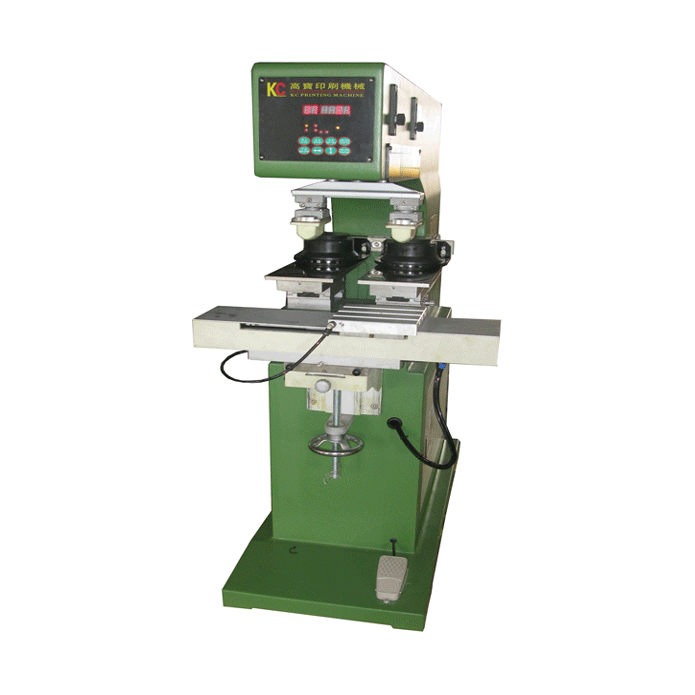

Shuttle  pad printer(P2-616C) 2
Img 2
Shuttle  pad printer(P2-616C) 3
Img 3
Shuttle  pad printer(P2-616C) 4
Img 4
Shuttle  pad printer(P2-616C) 5
Img 5
