| Model: | VWG2014 |
|---|---|
| Brand: | HUAXIAO |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / New Energy / Solar Energy |
| Label: | solar charge control , street light , wind charge controll |
| Price: |
-
|
| Min. Order: | 5 pc |
| Last Online:12 May, 2015 |
Product Description
VWG2014 wind solar hybrid charge controller is a small controller which controller both wind turbine and solar panel
charge to the battery or battery bank intelligently. It can detect 12v/24v battery system automatically.High accuracy
control charge or discharge. High charge efficiency, low no-load losses, safety, stability, reliability and long time.
Main features
1. LCD display with input keys to allow user to alter values
2. The unit will store information such as
Total amps generated
Total Kw hours generated
Amps used by load

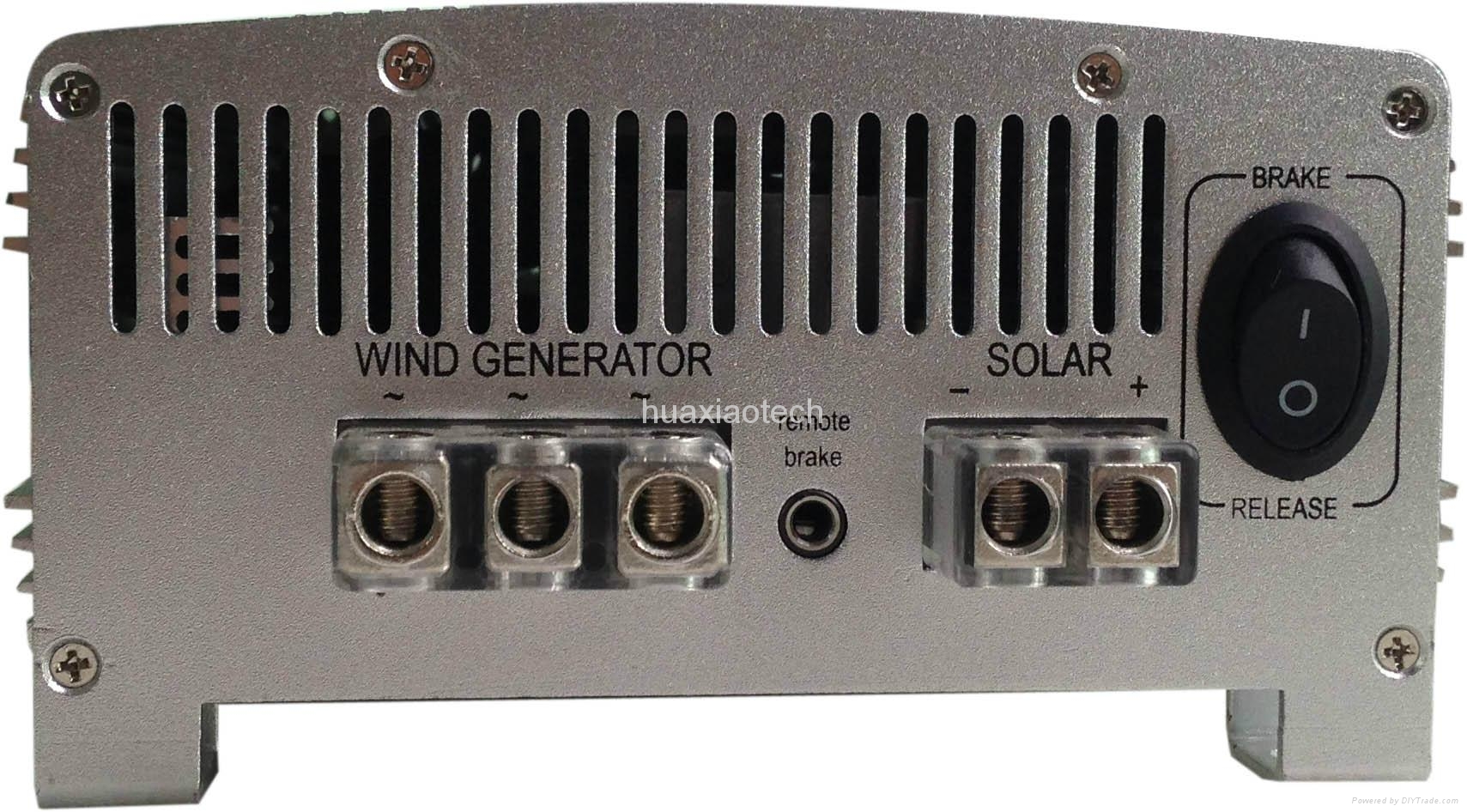

3. Connection of both solar and wind
4. Auto sensing of voltage of batteries connected
5. Ensures the battery is maintained in best possible condition by preventing overcharging and over discharging.
6. Automatic braking of the turbine when battery fully charged and/or no load connected
7. Manual brake switch, also have remote brake interface.

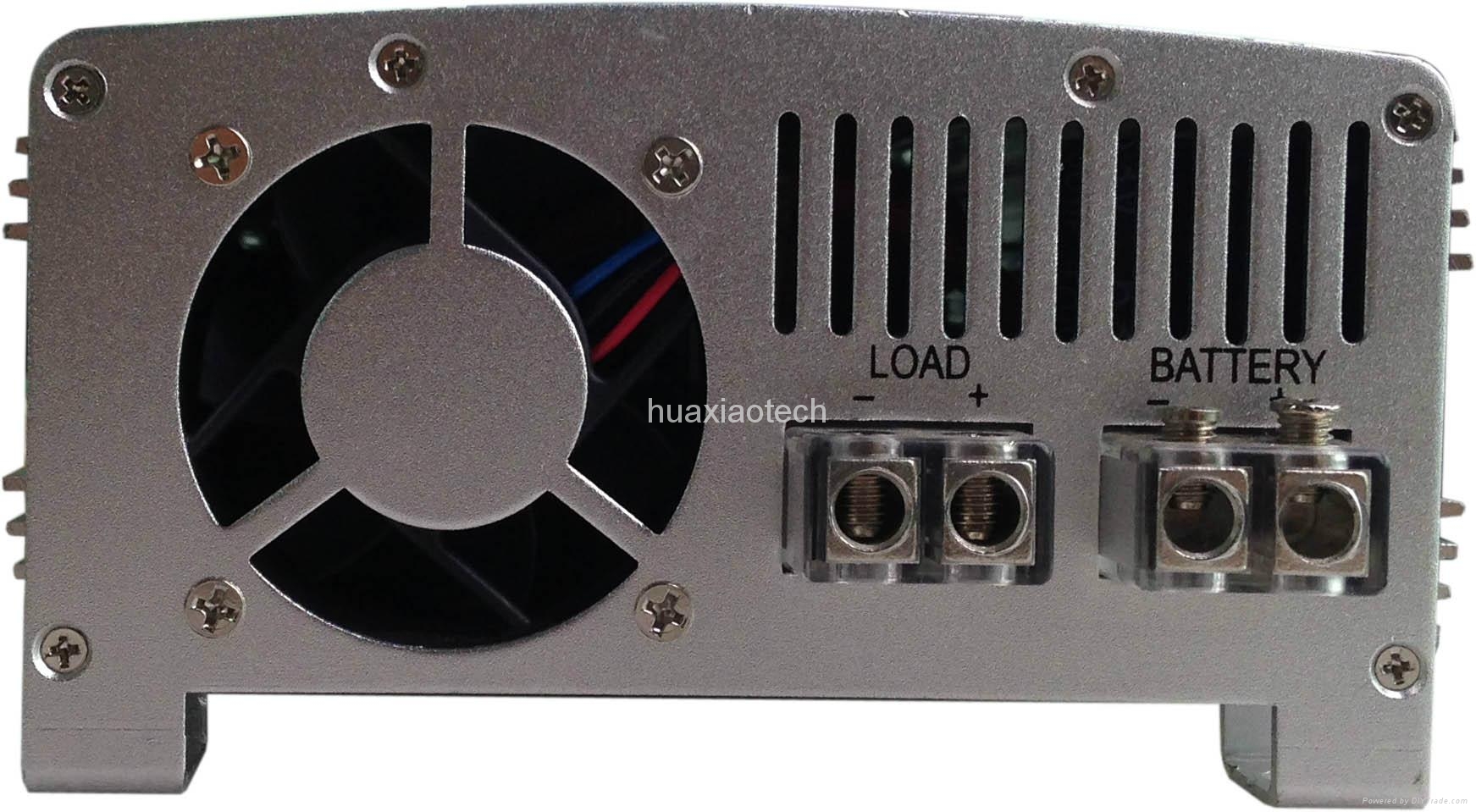

8. A “Load” output where external devices can be switched on and off at user determined voltages.
9. The “load” output is also current limited to protect the connected device
10.Night lamp control. when the Light dimmed load will automatically open, when the light is illuminated, the load will automatically close.
Specification
|
MODEL |
VWG2014 |
|
Rated Power |
1000W (Best ration: wind turbine600W, PV cells400W) |
|
Applicable batteries |
12/24V,100-300Ah(automatic distinguish voltage) |
|
Night lamp control |
On:5.93V/11.87V off:2.96V/5.93V |
|
Battery full charge cut |
14.24V/28.49V(default, adjustable) |
|
Battery low voltage disconnect load |
11.27V/22.55V(default,adjustable) |
|
Battery low voltage reconnect voltage |
12.55V/25.10V(default, adjustable) |
|
Brake on current |
20.48A/10.24A (default adjustable) |
|
Max Load current |
15A |
|
Recovery time after the automatic braking |
6 mins |
|
No load loss |
≤40mA |
|
Dimensions |
278×133×75mm |
|
Net Weight |
1.7kg |
|
Working environment |
Environment temperature -10℃~+50℃,Relative humidity 0~90% |
| Payment Terms: | TT/PAYPAL |
|---|---|
| Packing: | carton package 16p/c |
| Standards Certificate: | CE |
