| Model: | Y80-160 |
|---|---|
| Brand: | Anyang Forging Press |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Hydraulic Pressure Machine & Parts |
| Label: | Metal Chip , Briquetting Press , Hydraulic Press |
| Price: |
US $10000
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:19 Jun, 2021 |

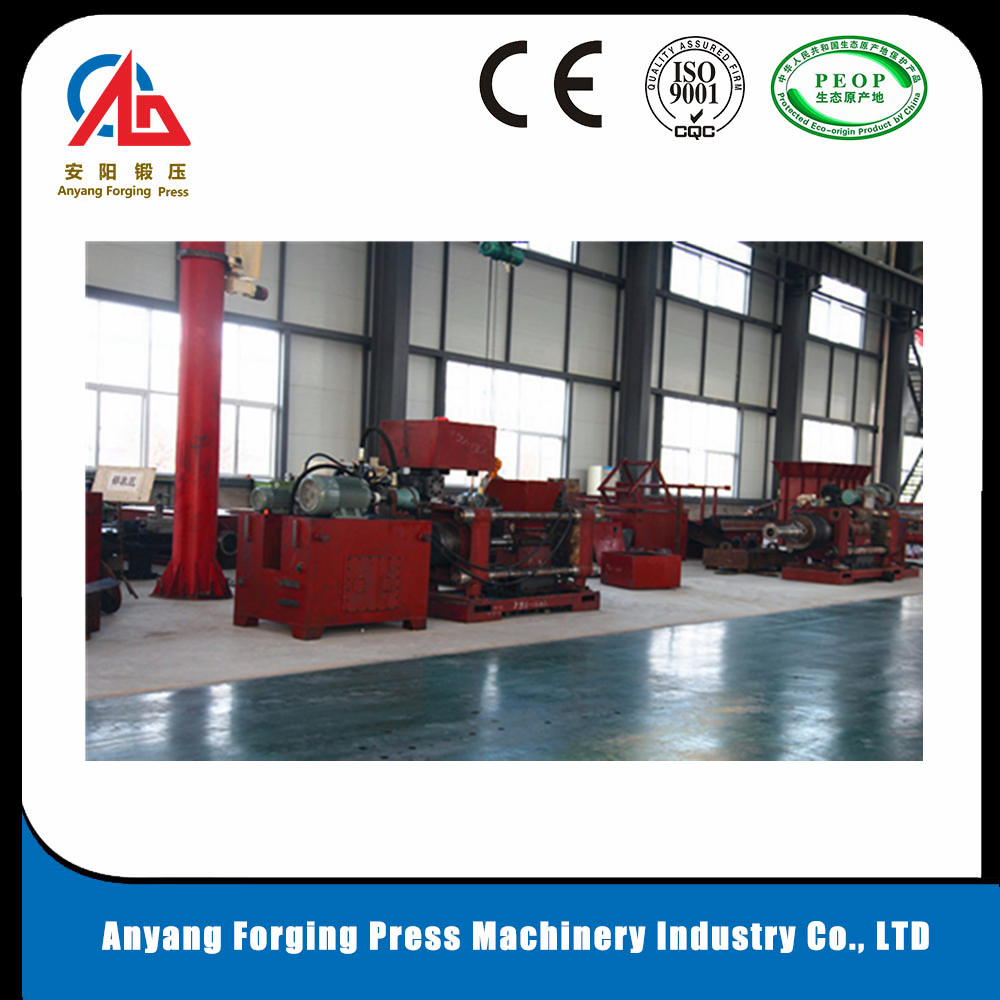

Introduction of The Metal Chip Press:
The metal chip press can be made of high density pressure block with the metal particles, such as cast iron, aluminum, copper, magnesium, titanium, molybdenum and other metal scraps..
- the equipment is hydraulic control, the main control part of the appliance is controlled by PLC, and the whole working process can be realized automatically.
- the system is equipped with the manual work procedures, easy to move forward and backward, the mold, the mold closing action adjustment.
- the device is equipped with one and two feeding procedures, which facilitate the suppression of the large shape of the metal scrap.
- according to customer requirements can increase the automatic feeding device.
Product performance and parameters:
The electrical part adopts PLC control, strong anti-interference, automatic degree, simple operation. Hydraulic station with integral inheritance valve block and chase through the charging valve, to prevent the leakage of oil, reduce the temperature of the oil system, improve the stability of the system. The frame parts adopt the monolithic steel casting, put an end to the steel plate welding part, and improves the reliability and the life of the equipment.. The cylinder adopts series cylinder, and improves the movement speed and production efficiency. According to the condition of other users with helical chain type automatic feeder, automatic feeder, reducing the labor intensity of workers.
Y83 series briquetting press(horizontal type):
| Model | Y83-160 | Y83-230 | Y83-300 | Y83-850 | Y83-1000 |
| Nominal Force (KN) | 1600 | 2300 | 3000 | 8500 | 10000 |
| Block size (mm) | ￠90x(60-110) | ￠110x(70-120) | ￠120x(70-120) | ￠180x(165-180) | ￠220x(200-250) |
| Block density (KG/m3) | ≥5200-5400 | ≥5200-5400 | ≥5200-5400 | ≥5200-5400 | ≥5200-5400 |
| Work pressure (Mpa) | 16 | 23 | 21 | 25 | 25 |
| Production Rate (Cast lron chip) (t/h) | 0.6-0.9 | 1.0-1.5 | 1.2-1.8 | 6-7.5 | 8.5-12 |
| Total Power (Kw) | 24.2 | 39.2 | 47.2 | 185 | 225 |
| Weight(Kg) | 6000 | 7500 | 8800 | 50000 | 60000 |
