Chinese Manufacturer Smart 1-Loop Fire Alarm Panel

Model:AF-AFP2188-100
Brand:AW/Asenware
Origin:-
Category:Security & Protection / Alarm
Label:Shenzhen Fire Alarm , African Fire Alarm , Nigeria Fire Alarm
Price: US $470 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Product Description

Chinese Manufacturer Smart 1-Loop Fire Alarm Panel

1.Analog intelligent automatic realtime fire alarm detection system

2.Non-polarity 2-bus wiring connection system

3.Optional 100/200/324 addresses & extensive loop cards

4.Single loop with optional 100/200/324 addresses to be programmed

5.R&D followed by LPCB/UL/EN54/VDS regualed involved

6.Automatic switch between mains power & backup 24V leadacid battery.

7.High compatibility with FM200 fire suppression system.

Applications:Commercial building,warehouse,school,factory,hotel,office,etc.

2.Functional Descriptions:

1) The working diagram of the whole addressable fire alarm system:

2).The Features:

Model No.:

AW-AFP2188-100/200/324

Data Processing

Collect data:through the internal microprocessors in the intelligent detectors & modules to realize digital filtering and auto-compensation functions.

Carry out data: based on fuzzy control theory and modern fire alarm theory to carry out data processing

Power supply system

an AC-DC master-standby power supply system

  • Real-time printing

Support mini-printer

  • Equipment connection

Support ten multi-line linkage control/monitoring points to control and monitor important equipment.

For the users

be equipped with eight bus manual control points, which makes Easy for user sto control related equipment.

  • Service Environment

industrial & civil buildings

factories, hospitals, restaurants, hotels, schools, business buildings, government buildings,etc.

Advantage

Accurate & efficient feedback, Humanized setting, Economic, User-friendly & convenient maintenance,etc.

3. Main Technical Parameters:

Main technical parameters:

AW-AFP2188 system capacity

100/200/324 points (non-polarity, two wire bus, fully mixed coding)

AC input voltage

AC 220V±20%  50Hz

DC power

DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series

AC input power

120W

Circuit bus

two-wire system

Total length

≤1500m

Voltage UL of the circuit bus

+20V≤UL≤+26V(when the DC power is operating)

+24V≤UL≤+26V(when the AC power is operating)

System working conditions



1. Temperature: -10°C~+50°C

2.Humidity: ≤95%

3.Power supply:  AC   220V    50HZ

                    DC    24V    6A

4.Output contact capacity: AC   220V   1A

                             DC   27.6V   3A



4. The diagram of the addressable fire alarm system:



5.Asenware Fire Deteion Alarm Panel Oversea Installation Demostration:



Photo taken from Server Room in Myanmar Huawei Data Centre

The standard addressable accessories involved below:

1) AW-ASD2188:Addressable Photoelectric Smoke Detector

2) AW-ATD2188:Addressable Fixed Temperature Heat Detector

3) AW-AMC2188:Addressable Manual Call Point

4) AW-ASS2188:Addressable strobe siren

5) AW-AIO2188-IN:Addressable input module to wire conventional devices.

6) AW-AIO2188-OUT:Addressable output module to control additional devices.

7) AW-CODER2188:Programmer to code the detectors





Where there is fire situation,where there is Asenware fire panels,the global professional fire alarm solution provider to secure your properties & assets.

Any inquires on fire alarm or fire suppression system,below is my contacts.

Freeman Zhou

Oversea Sales Director

Asenware Ltd.

Whatsapp/Viber/GSM:008613922805315

Wechat:13922805315

Skype:asenware.sales.1

E-mail:sales01@asenware.com

Web: www.asenware.com

Features:12-month free warranty,modularized design,simple installation,reliable performance,endurable life,wire-saving & flexible zone/loop extension margin,etc.
Installation Examples:5-star Simama Hotel,Lilongwe,Malawi,Hotel Africanna,Kampala,Uganda,Egyptian Bank & Bangladesh Garment Factories,etc.

News:Congratulations to ASENWARE for the approval of the FM certificate for fire doors.


Product Image

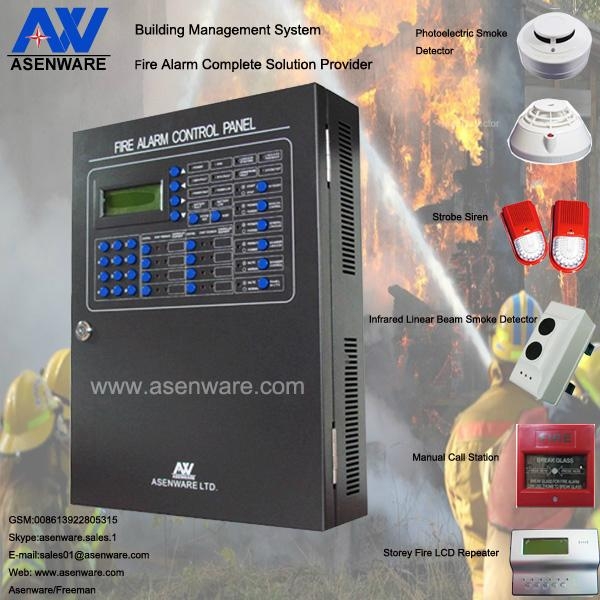

Chinese Manufacturer Smart 1-Loop Fire Alarm Panel  1
Img 1
Chinese Manufacturer Smart 1-Loop Fire Alarm Panel  2
Img 2
