Product simple introduction

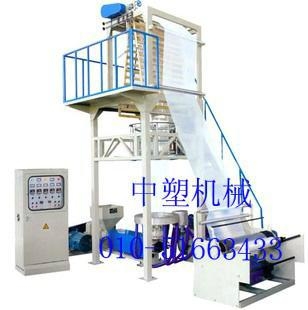

Used in blowing of various low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) and other plastic film. Widely used in industrial products, textiles, clothing packaging, food packaging, agricultural coverage, etc..
Product details
The machine barrel and screw of the extruder are made of high quality alloy steel, and have the best hardness and corrosion resistance by nitriding and precision machining..
The auxiliary machine has a platform table, which is easy to operate.
The coiling device adopts the torque motor, can keep the tension, the volume of the volume is neat, and the volume is convenient..
Main technical parameters:
Technical Variables: Main
Model
Model
ZS-600
ZS-800
ZS-1000
Screw diameter (mm)
Diameter Screw (mm)
45
55
60
Ratio of screw length to diameter (L:D)
Ratio Screw (L:D)
28:1
28:1
28:1
Screw speed (r/min)
Speed Screw (r/min)
10-100
10-100
10-100
Host power (kw)
Of Main Motor Power (kw)
7.5
11
15
Maximum extrusion amount (kg/h)
Extrude output Max (kg/h)
35
50
65
Film maximum reduction (mm)
Folding Width of Film Max. (mm)
600
800
1000
Thin film thickness (mm)
Thickness of Film Single-sided (mm)
0.006-0.10
0.006-0.10
0.006-0.10
Total power (kw)
Power Total (kw)
18
22
28
Weight (kg)
Of Machine Weight (kg)
2000
2200
2800
Dimension (L * W * H) (mm)
Dimensions Overall (mm)
1800 x 3600 x 4200
2000 x 4000 x 4400
2300 x 4200 x 4600
Model
Model
ZS-1200
ZS1500-
ZS-2000
Screw diameter (mm)
Diameter Screw (mm)
65
80
100
Ratio of screw length to diameter (L:D)
Ratio Screw (L:D)
28:1
28:1
28:1
Screw speed (r/min)
Speed Screw (r/min)
10-100
10-100
10-100
Host power (kw)
Of Main Motor Power (kw)
18.5
30
55
Maximum extrusion amount (kg/h)
Extrude output Max (kg/h)
70-80
80-90
160
Film maximum reduction (mm)
Folding Width of Film Max. (mm)
1200
1500
2000
Thin film thickness (mm)
Thickness of Film Single-sided (mm)
0.006-0.10
0.01-0.10
0.01-0.10
Total power (kw)
Power Total (kw)
32
52
80
Weight (kg)
Of Machine Weight (kg)
3300
4300
5800
Dimension (L * W * H) (mm)
Dimensions Overall (mm)
2500 x 4500 x 4800
2800 x 5000 x 5200
3300 x 6000 x 5800
