Multi-sensor infrared Thermal PTZ  Camera 1
  • Multi-sensor infrared Thermal PTZ  Camera 1

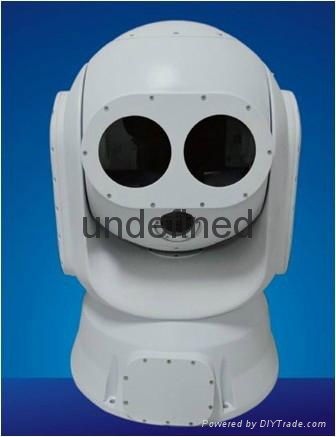

Multi-sensor infrared Thermal PTZ Camera

Model:TRC
Brand:Hope-Wish
Origin:Made In China
Category:Security & Protection / Surveillance Equipment
Label:PTZ Thermal , Thermal Camera , IR Camera
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Hope-Wish Photoelectronics

Free MemberShan Dong - China
Live Chat:Last Online:18 Oct, 2018

Product Description

To be confirmed

To be confirmed

Detection

Depends on different configuration;

Max. 15000m(vechile); Max. 5000m(human)

Thermal camera

336*256 resolution/640*512 resolution

25-75mm,21-105mm,31-155mm, 37-185mm,40-200mm, 275mm

Visible camera

36X box camera, 10-200mm, 12-320mm, 15-528mm, 25-750mm, 20-1000mm HD lens

Laser camera

500m, 1000m, 2000m, 3000m, 5000m laser

Laser ranging finder

5km, 8km, 15km pulse laser ranger, 1.57um(safe to human)

Accuracy: 3m

Multi-pulse: 10 times/min

GPS

Positional accuracy: 10m

Time accuracy: 0.001 second

Detection: 148dBm

Track: 165dBm



Electronic compass

0—360o; accuracy: 1o; resolution: 0.1o

Housing

Aluminum housing, IP66 ingress protection

PT

1. Optional 30kg/50kg duty PT

2. Integral aluminum alloy housing

3. Rotation speed: pan: 30°/s, tilt: 15°/s

4. Rotation angle: Pan: 360°continuous, tilt: ±45°

5. 128 preset, line scan

6. RS485*1,BNCvideo output*2

Power and environment parameters

1. Power supply: AC24V

2. Operational temperature: -25+60

3. Storage temperature: -40+85

4. Humidity: <90%

5. Anti-light, anti-surge, power voltage 4000V, commission signal 2000V

6. Salt spray test: PH 6.5-7.2, spray test 48 hours


Payment Terms:TT
