| Model: | 铁氟龙热缩管 |
|---|---|
| Brand: | AKITA HILL |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Insulation Material |
| Label: | PTFE HEAT SHRINKABLE , PTFE HEAT SHRINKABLE , PTFE HEAT SHRINKABLE |
| Price: |
US $0.7
/ m
|
| Min. Order: | 200 m |
| Live Chat: |  | Last Online:30 Aug, 2023 |

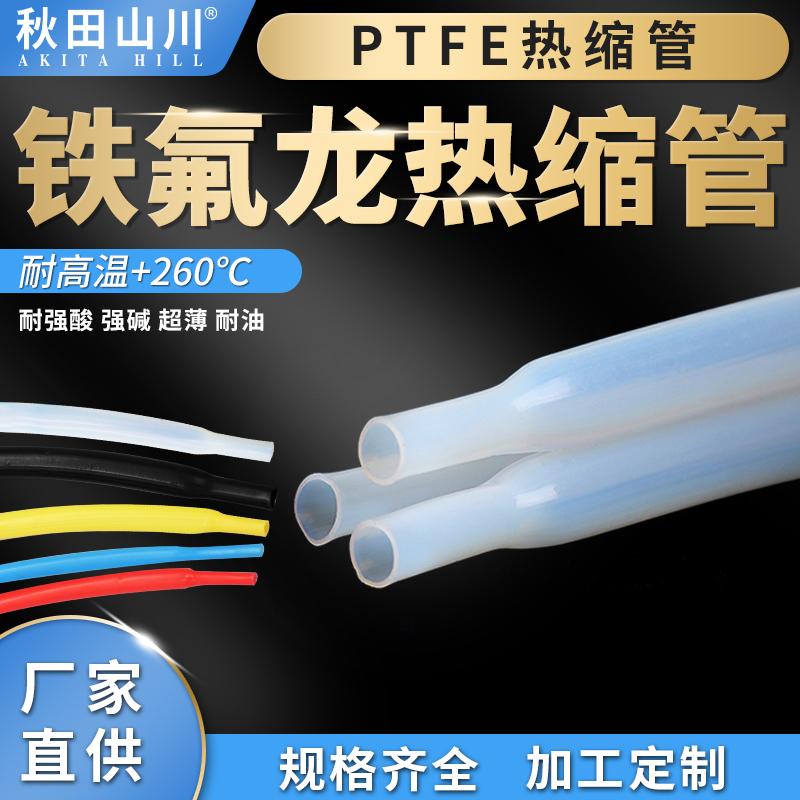

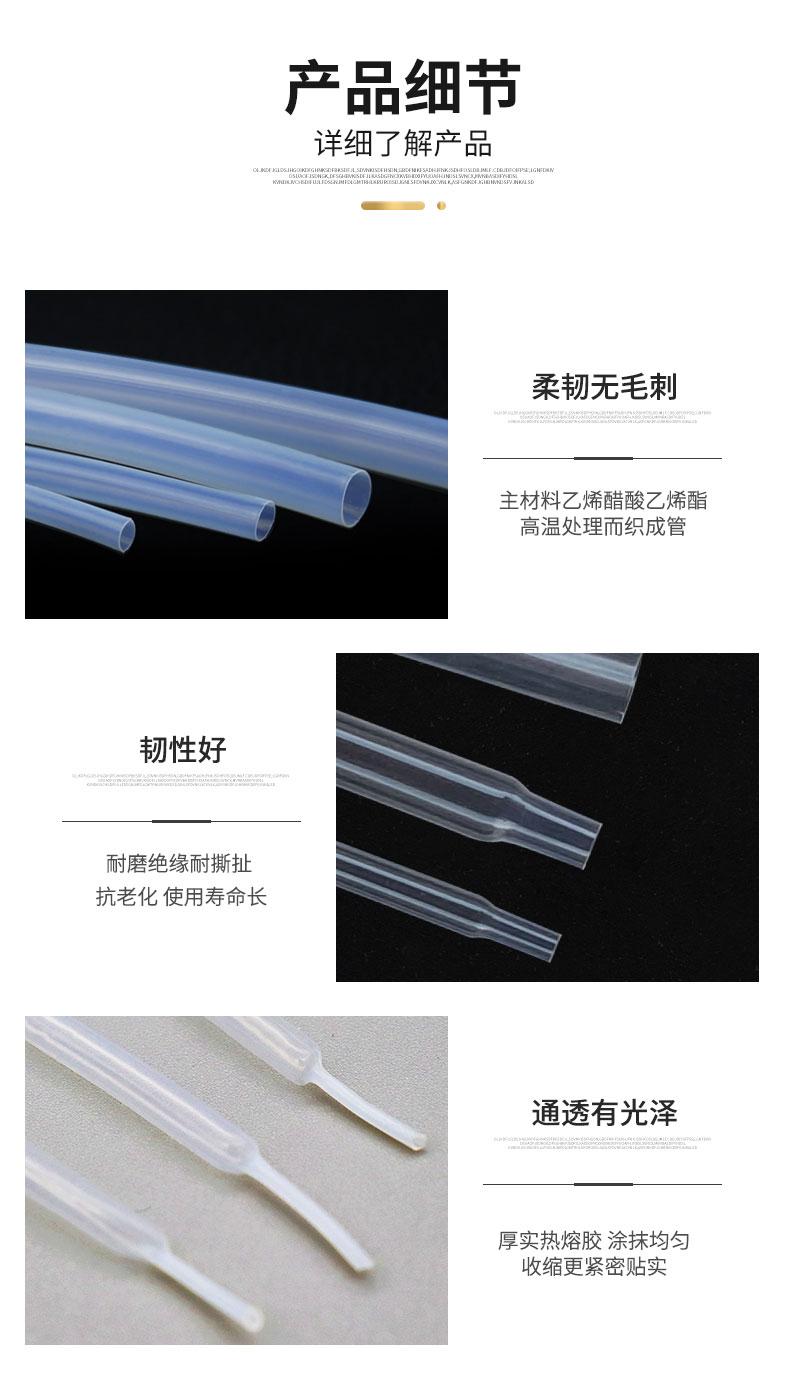

PTFE HEAT SHRINKABLE TUBING

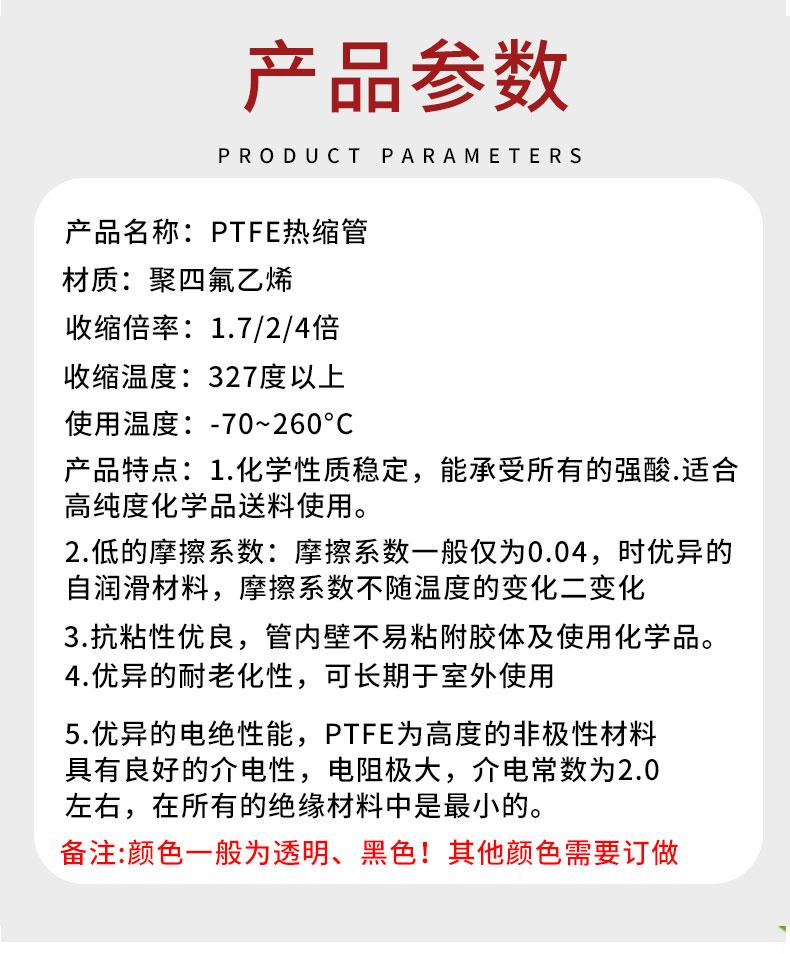

Grade:

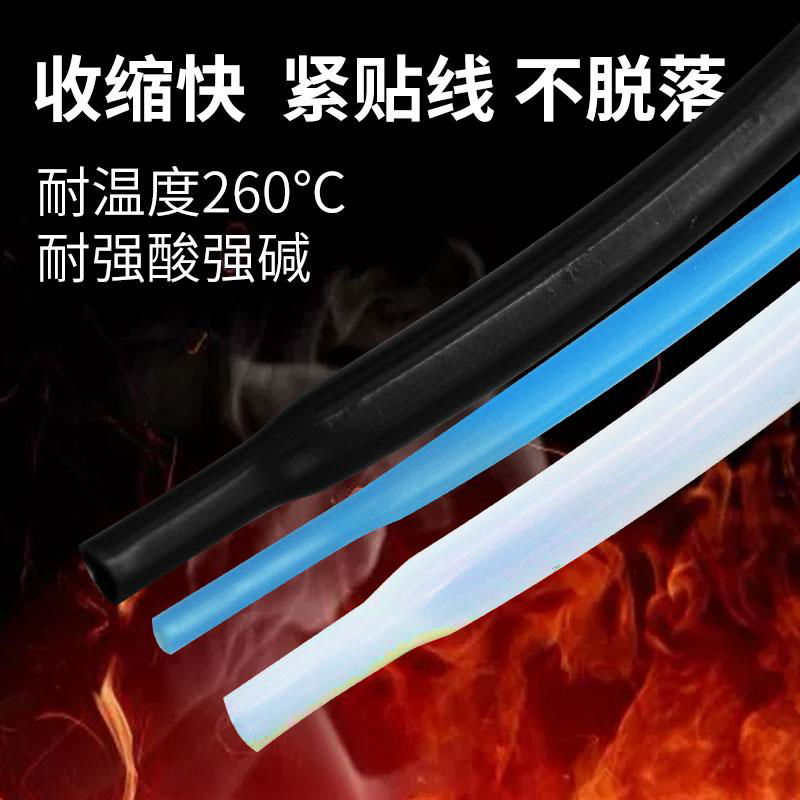

Temperature: -50℃ - 260℃
Shrink ratio: 1.7:1 ; 2：1 4：1
STRUCTURE:

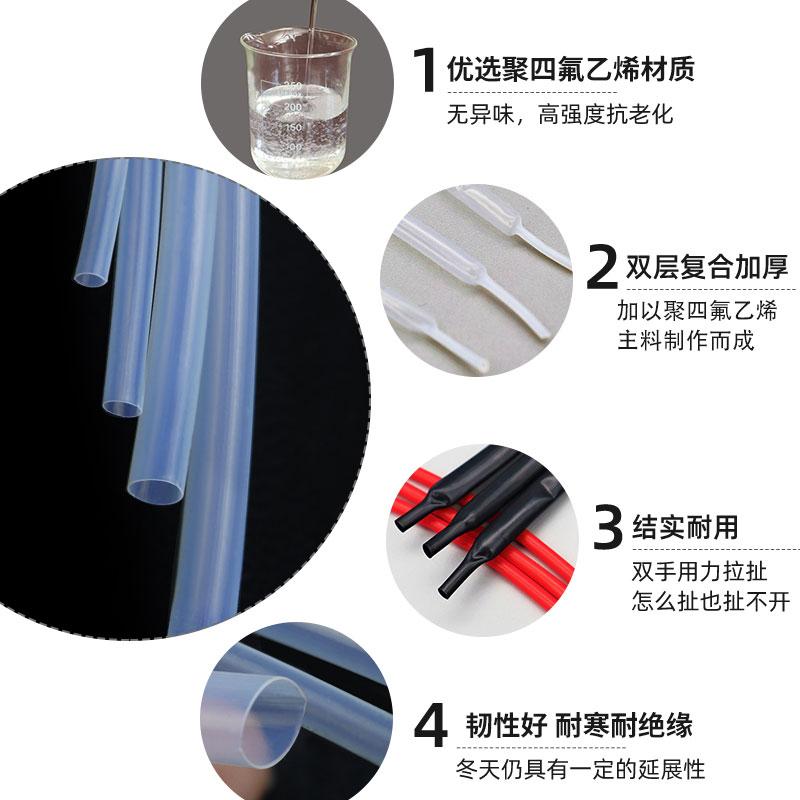

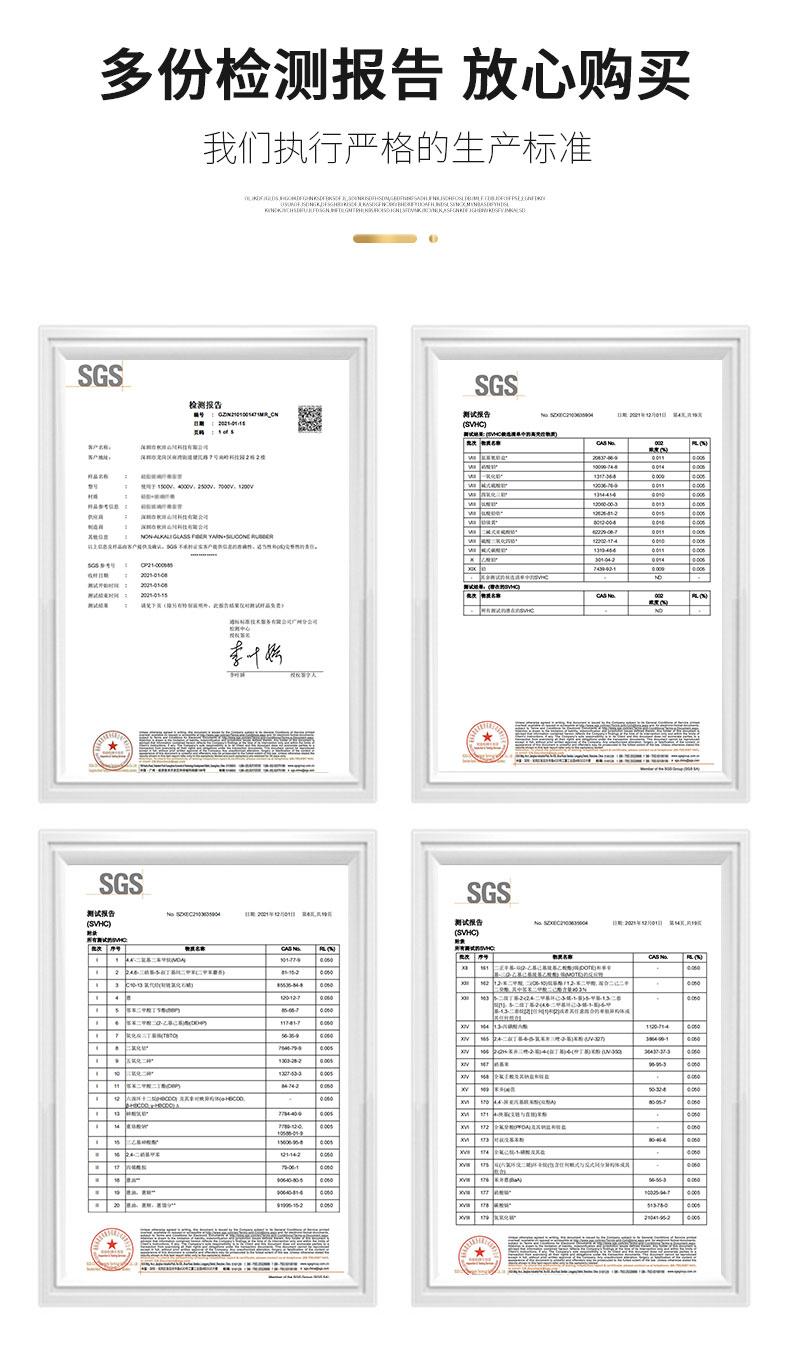

High temperature and voltage resistance, flame retardant, soft, SGS compliant
USAGE:
It is widely used in electrical protection, resistor,capacitor, aerospace, medical instrument etc.
|
Sizemm |
AS SUPPLIED |
Thinkness |
AFTER RECOVERY |
THINKNESS AFTER RECOVERY |
||
|
Thin Type |
Think Type |
Thin Type |
Think Type |
|||
|
φ0.5 |
0.7±0.2 |
0.10±0.05 |
0.15±0.05 |
≤0.40 |
0.15±0.05 |
0.25±0.05 |
|
φ1.0 |
1.0±0.2 |
0.10±0.05 |
0.15±0.05 |
≤0.50 |
0.15±0.05 |
0.25±0.05 |
|
φ1.5 |
1.5±0.2 |
0.10±0.05 |
0.20±0.05 |
≤0.90 |
0.15±0.05 |
0.25±0.05 |
|
φ2.0 |
2.0±0.2 |
0.10±0.05 |
0.20±0.05 |
≤1.30 |
0.15±0.05 |
0.30±0.05 |
|
φ2.5 |
2.5±0.2 |
0.10±0.05 |
0.20±0.05 |
≤1.50 |
0.15±0.05 |
0.30±0.05 |
|
φ3.0 |
3.0±0.2 |
0.15±0.05 |
0.20±0.05 |
≤1.80 |
0.20±0.05 |
0.30±0.05 |
|
φ3.5 |
3.5±0.2 |
0.15±0.05 |
0.20±0.05 |
≤2.0 |
0.20±0.05 |
0.30±0.05 |
|
φ3.8 |
3.8±0.2 |
0.15±0.05 |
0.20±0.05 |
≤2.0 |
0.20±0.05 |
0.30±0.05 |
|
φ4.0 |
4.0±0.3 |
0.15±0.05 |
0.20±0.05 |
≤2.5 |
0.20±0.05 |
0.30±0.05 |
|
φ4.5 |
4.5±0.3 |
0.15±0.05 |
0.20±0.05 |
≤2.8 |
0.20±0.05 |
0.30±0.05 |
|
φ5.0 |
5.0±0.3 |
0.15±0.05 |
0.20±0.05 |
≤3.0 |
0.20±0.05 |
0.30±0.05 |
|
φ6.0 |
6.0±0.3 |
0.15±0.05 |
0.25±0.05 |
≤3.8 |
0.25±0.05 |
0.38±0.05 |
|
φ7.0 |
7.0±0.3 |
0.15±0.05 |
0.25±0.05 |
≤4.0 |
0.25±0.05 |
0.38±0.05 |
|
φ8.0 |
8.0±0.3 |
0.15±0.05 |
0.25±0.05 |
≤4.8 |
0.25±0.05 |
0.38±0.05 |
|
φ9.0 |
9.0±0.3 |
0.15±0.05 |
0.25±0.05 |
≤5.0 |
0.25±0.05 |
0.38±0.05 |
|
φ10.0 |
10±0.3 |
0.15±0.05 |
0.25±0.05 |
≤6.0 |
0.25±0.05 |
0.38±0.05 |
|
φ11.0 |
11±0.3 |
0.15±0.05 |
0.25±0.05 |
≤7.0 |
0.25±0.05 |
0.38±0.05 |
|
φ12.0 |
12±0.3 |
0.15±0.05 |
0.25±0.05 |
≤8.0 |
0.25±0.05 |
0.38±0.05 |
|
φ13.0 |
13±0.3 |
0.15±0.05 |
0.25±0.05 |
≤9.0 |
0.25±0.05 |
0.38±0.05 |
dtf�/.p0�� �none;border-top:solid windowtext 1.0pt; mso-border-top-alt:solid windowtext .5pt;padding:0cm 5.4pt 0cm 5.4pt; height:21.95pt'>
0.25±0.05
0.38±0.05
