API/ANSI cast globe valve

Model:J41
Brand:STV
Origin:-
Category:Industrial Supplies / Machine Hardware / Valves
Label:cast globe valve , ansi globe valve , 150LB GLOBE VALVE
Price: US $50 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

wenzhou stvvalve co.,ltd

Free MemberZhe Jiang - China
Live Chat:
Last Online:18 Aug, 2020

Product Description

Gasket of Cover Flange
Stainless steel + flexible graphite wounded gasket is used for Class 150 and Class 300 globe valve. Stainless steel + flexible graphite wounded gasket is used for Class, and ring joint gasket is also optional for Class 600.Ring joint gasket is used for Class 900 globe valve. Pressurized seal design is used for Class 1500~Class 2500 globe valve.
Packing seal
Molded flexible graphite is used for packing material. PTFE or combined packing material can be also used if being requested by the customer. The internal surface of the stuffing box, of which area is contacted with the packing, is of excellent finish(Ra 3.2um).The stem surface ,contacting with the packing, should be rolled and pressed after being precisely machined, so as to reach to the high finish and compactness(Ra 0.8um)and ensure the reliable tightness of the stem area.
Belleville spring loaded packing impacting system
If being requested by the customer, the Belleville spring loaded packing impacting can be adopted for enhancing the durability and reliability of the packing seal.
Back seating design
All our globe valves have the back seating design. In most cases ,the carbon steel globe valve is fitted with a renewable back seat. For stainless steel globe valve, the back seat is machined directly in the bonnet or is machined after welding. When the globe valve is at fully open position, the sealing of the back seat can be very reliable. However, as per the requirement of API, it is not advisable to add or change packing by the mean of back seating when the valve is pressure containing.
Seat
For carbon steel globe valve, the seat is usually forged steel. The sealing surface of the seat is spray welded with hard alloy specified by the customer. Renewable threaded seat is used for NPS<8 globe valve, and welded on seat can be also optional if being requested by the customer. Welded on seat is used for NPS>10 carbon steel globe valves. For stainless steel globe valve, integral seat is usually adopted, or to weld hard alloy directly integrally. Threaded or welded on seat is also optional for stainless steel globe valve if being requested by the customer.
Stem design
The stem is of integral forged design. The minimum diameter of the stem shall per the standard requirement.
Stem nut
Usually, the stem nut is made of ASTM A439 D2.It is also can be made of copper alloy if being requested by the customer. For large sized globe valve, rolling bearing is fitted at the two sides of stem nut in order to minimize the open and close torque of the globe valve.
Special globe valve
Besides the common globe valves, We also makes cryogenic globe valve(Extended bonnet), bellow sealed globe valve, Jacketed globe valve, with bypass globe valve.By-Pass and Drain Connections,Indicator and Locking Devices ,etc.
Operation type
Handwheel,Gear, Electric actuator,Pneumatic actuator,Bare stem.
Standard
Design and Manufacture: BS1873 or ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5,ASME B16.47(API 605 ,MSS SP44)
Butt weld end dimension: ASME B16.25(BW)
Face to face,end to end: ASME B16.10
Pressure-temperature ratings: ASME B16.34
NACE: NACE 0175
Material
ASTM A216 WCB WCC;ASTM A217 WC1 WC6 WC9;ASTM A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M;.ASTM A352 LC1 LCB LCC LC3 or by customers
austenite; duplex stainless steel; ferrite; stainless steel;steel castings
(Cast Steel, Alloy Steel, Stainless Steel, Special Steel)
bolt bonnet globe valve,API valves,globe valve,valve,stop valve,cut-off valve,on-off valve,API globe valve,globe valve ASME B16.34,Rising Stem globe Valve,BS 1873 globe valves,globe valve BS 1873,API ventily,uzavírací ventil,ventil,stop ventil,uzavírací ventil na ventil,API Globe ventil,uzavírací ventil ASME B16.34,stoupající vřeteno uzavírací ventil,ventilů BS 1873,BS 1873 uzavírací ventil,API Ventile,Absperrventil,Armatur,Absperrventil, Absperrventil Schaltventil,API-Kugelventil,Kugelventil nach ASME B 16.34,steigende Spindel Absperrventil, Absperrventile BS 1873,BS 1873 Absperrventil API,valvola di globo,valvola,valvola di arresto,valvola di intercettazione on-off valvola,API valvola di globo,valvola Globe ASME B16.34, Rising Stem valvola a globo,valvole a globo BS 1873,BS 1873 Valvola a globo,API válvulas,válvula de globo,válvula,la válvula de retención,válvula de corte de encendido y apagado de la válvula,la API de válvula de globo,válvula de globo para ASME B16.34,صمام الكرة الأرضيةválvula de globo de aumento de madre,un Globo de válvulas de BS 1873,BS 1873 Válvula de Globo,API клапаны,вентиль, клапан,запорная арматура,отсечной клапан на клапан,API Globe клапан,Globe клапан ASME B16.34,поднимающего шпинделя арматуры глобус,Клапаны BS 1873,BS 1873 Запорный клапан,stop check valve,comprador válvula globo,Prehodni ventil,BS 1873 Prehodni ventil,ASME B16.34 Prehodni ventil,Prehodni ventil kupca,globe valve buyer,globe valve importer,Prehodni ventil uvoznik,globe valve distributor,Prehodni ventil distributer,afsluiter,Industrial Valve Manufacturer and Supplier in the China,glob vana,Válvulas Globo,supapa de glob,uzatváracie.šupátko,uzatvárací ventil,EMERGENCY SHUT OFF VALVE,emergency shut-off valves,Globe Vana,Çelik Döküm Globe Vana,seteventil,HP steam globe valves,Клапи спирателни,Absperrventil,ANSI Absperrventil,jacketed valvesummantelte Ventile,Globe Stop Valve,SDV MEMBRÁNOVÝ VENTIL SWISSFLUID,Absperrventile,Ventil s regulačnou kuželkou,Absperrventile,Afspærringsventiler,valves for water,spiral wound gasket,bolted bonnet valves,Cast steel bolted globe valves,válvula de compuerta,Válvulas de Globo.Uzavírací ventily ruční,robinet à soupape,Cast Steel Globe Valve,Cast Stainless Steel Globe Valve,Forged Steel Globe Valve,Forged Stainless Steel Globe Valve.válvula globo,Van cầu,Válvula Globo (ANSI)글로브 밸브,Ventil uzatvárací,วาล์วลูกโลก.UZAVÍRACÍ VENTILNoslēgventiļi.glboe katup.,GLOBE ANGLE CHECK VALVEברז גלובGLOBE CHECK VALVE。válvulas globo.Ventily uzavírací.Ventily regulační.Zawory grzybkowe。Zawór zaporowy grzybkowy staliwny.Spray Valve。Robinete de inchidere cu ventil din fonta R.I.V (R.V.D) Kolvslidventiler.Van cầu.BLOBE VALVE.Globe Vana Válvulas Esclusa Válvulas Globo Válvulas Esféricas Válvulas de Retención Llaves de Paso Filtros YVálvula Globo Válvulas de Compuerta Bem vindo a válvulas industriais,Válvula Globo de Aço Fundido Conexão Flangeada comhla cruinne Válvula de Globo.Pipes,Valves & Fittings - Indosaf Equipment & Supplies Limited throttle globe valves.Globo Bolted Bonnet Diámetros, Kelebek Vana İletişim SayfasıKelebek Vana Kelebek Vana Çeşitleri Lug Wafer Globe Vana Pistonlu vana,Kelebek vana,Küresel vana.changeover valves.changeover valves,Sampling Valves VÁLVULAS E CONEXÕES,Šoupátko rychločinné ASTM A494/494M CW6MC, Alloy 625 Casting,S.d.n.r. globe valve (screw down non return). Shut-off globe valve drawing,valve with parabolic plug, Double seated globe valve, Angle type globe valve etc


Payment Terms:.TT/LC/DP/DA

Product Image

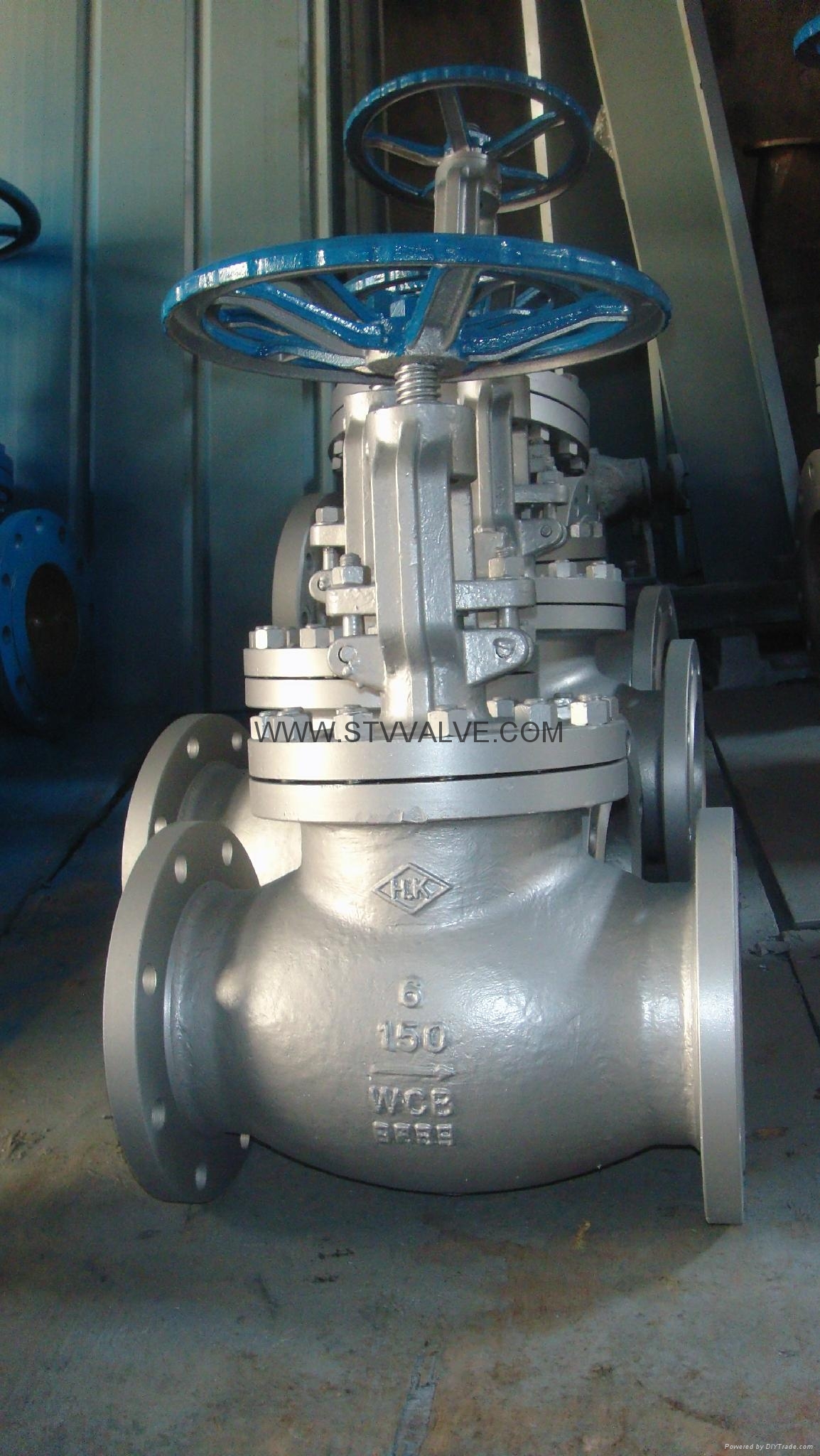

API/ANSI cast globe valve 1
Img 1

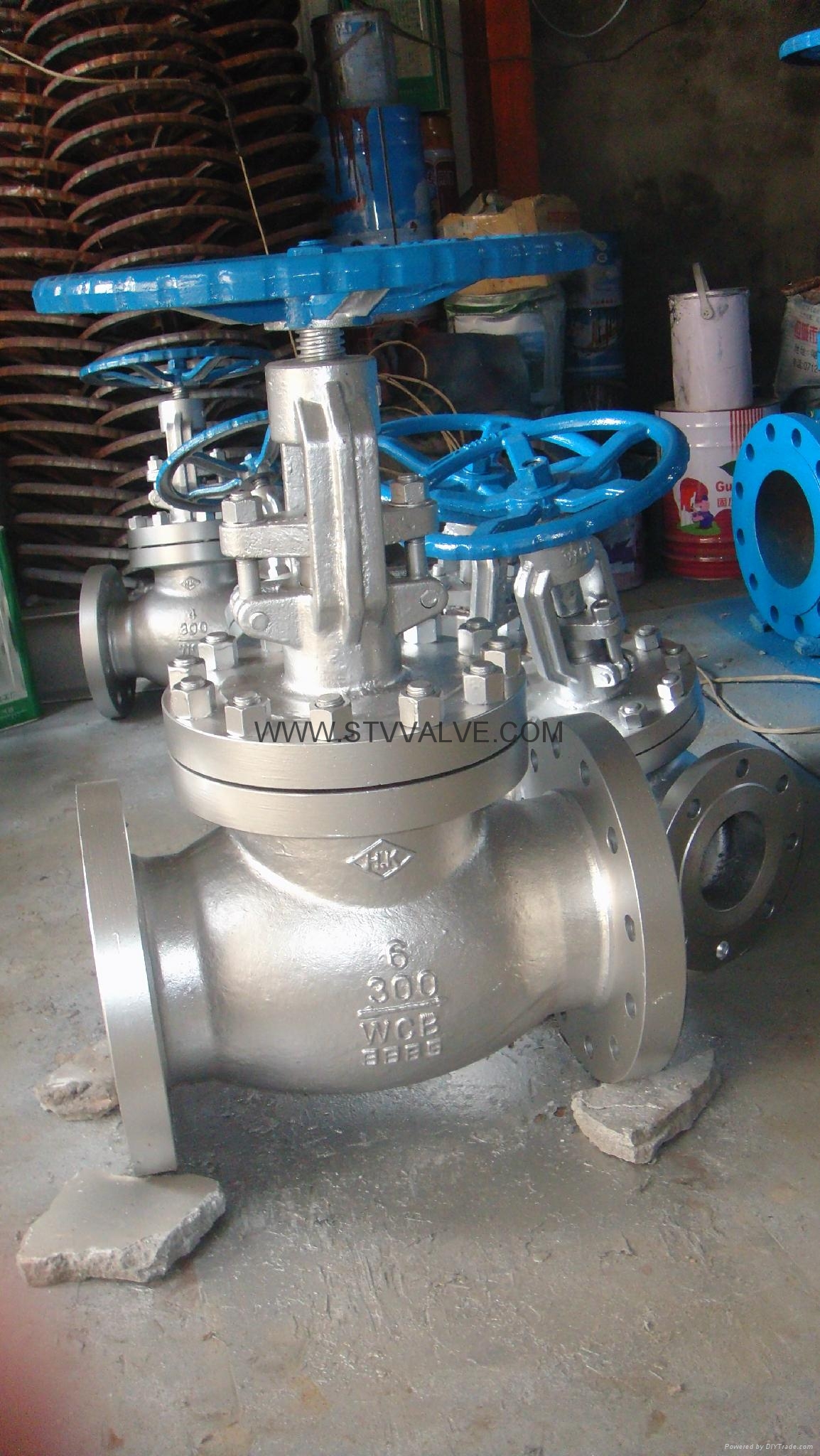

API/ANSI cast globe valve 2
