| Model: | VEC-PJS1D |
|---|---|
| Brand: | VEC |
| Origin: | Made In China |
| Category: | Transportation / Transportation Facilities / Parking Facilities |
| Label: | parking system , parking lift system , home parking system |
| Price: |
US $1800
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:04 Mar, 2017 |
Product advantage
The maximum lifting height can be 1750mm. Lifting weight can be 3200kg. This type parking lift is available for sedan and SUV.
The device size is according to customer’s requirement.
The mode of drive is hydraulic drive, steel rope lift.

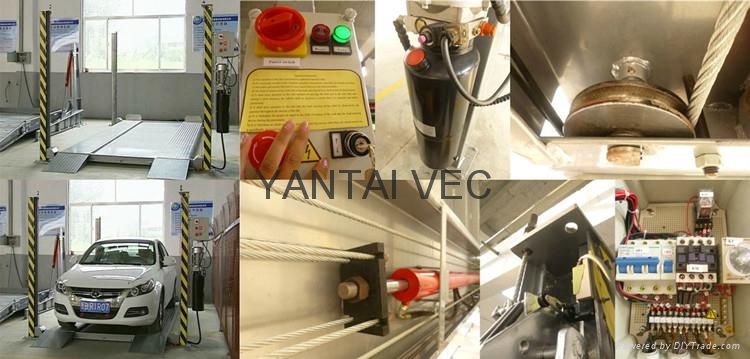

Single unlock by manual or four sides unlock automatically with anti-fall devices. The anti-fall blocks installed in the columns will prevent the car platform to fall informally to insure safety of the car.

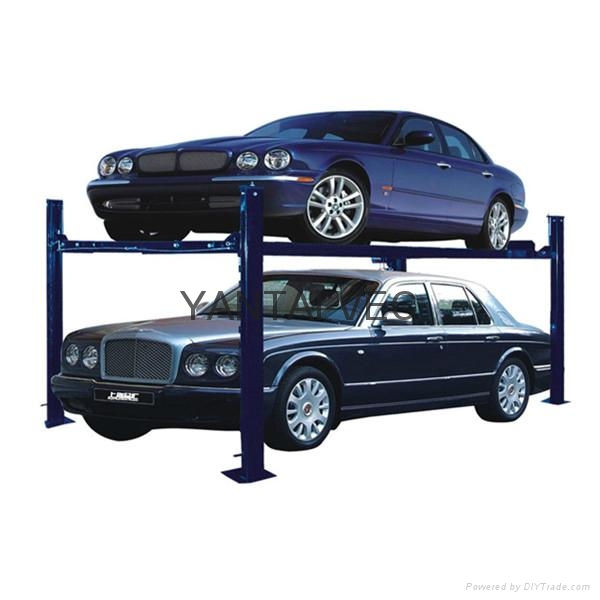

Four post parking lift is convenient and reliable, easy operation, quick installation, simple installation at site, low requirements of land area.
Four post parking lift can self lubrication bearing to guarantee the safety at any height.
Structure all adopts laser cutting, attractive appearance, easy installation, less questions, easy maintenance.
Slippery runways and the traction plate for convenient use. The distance between two runways plates are fixed, there is movable plate to receive oil in the middle.
It can be widely used in hotels, enterprises and public institutions and residential area.
Product Specification
|
Lifting capacity |
≤3200kg |
|
Parking cars |
2pcs |
|
Lifting mode |
Hydraulic drive +wire rope |
|
Voltage |
220V/380V 50Hz 1 Phase/3 phases (customized) |
|
Control voltage |
AC24V |
|
Lifting speed |
1.5m/min |
|
Falling speed |
1.8m/min |
|
Demision |
4810*2667*2080mm |
|
Track size |
473*4080mm |
|
Lifting height |
1750mm |
|
Motor |
2.2kw |
|
Mode of operate |
Button / IC card / Remote key |
|
Mode of control |
Hydraulic control / PLC control |
|
Unlock mode |
Electrical/Mannual unlock |
|
Surface treatment |
Galvanized /Powder coated |
|
Package size |
4200*630*630mm |
|
Weight |
750kg |
|
20 ft container load |
12 sets |
|
40 ft container load |
24 sets |
