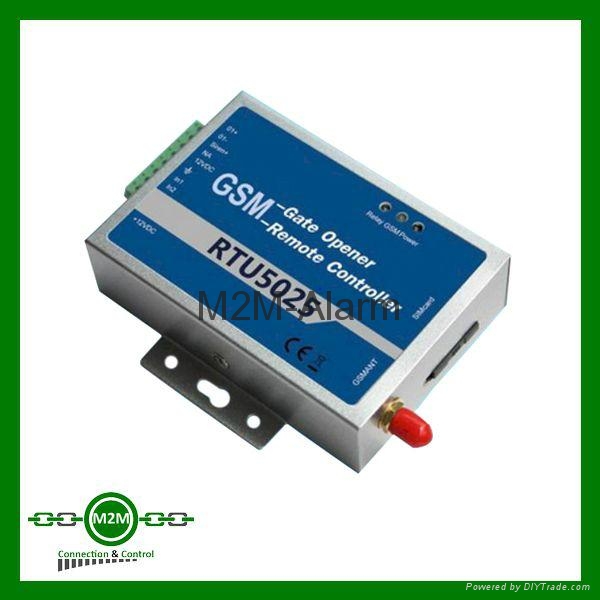

RTU-5025 GSM Door Controller
GSM Dorr Controller RTU-5025 can be used as:
●Home and garage owners
●Business companies
●Hotels ,Warehouses,Parking places
●Relay, Motor,pump,transfomrer,valves
●Remote control and switch
●Hospitals
●Other place need remote switching applications
●Security Alarm Systems applications
Features:
◆1. No call charges. The GSM Gate Opener rejects the call from authorized number then carry out the turn ON/OFF action on the first 'ring';
◆2. Multiple applications. (Gates,bollards,barriers,garage doors,shutters and access doors or machines);
◆3. Secure - Using caller ID for identification, unknown callers are ignored;
◆4. Can be operated from anywhere, no distance limit;
◆5. Add or Remove users by SMS Text command;
◆6. No need to provide a remote control for different users;
◆7. Up to 64 authorized phone numbers can be configured;
◆8. 2 Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message to you immediately;
◆9. Output relay rating 3A/240VAC for connecting the switch ON/OFF the door or machines;
◆10. The relay action will return a SMS confirmation to the owner, this function is editable by user;
◆11. Based on GSM Network, applied to many applications.
Specifications:
|
Parameter item |
Reference scope |
|
GSM Frequency |
Dual band 900/1800 MHz or 850/1900MHz |
|
Input |
2*Digital,NC/NO |
|
Output |
1*Relay, 3A/240VAC |
|
DC Power supply |
Standard adapter: DC12V/1A |
|
Power consumption |
12V input Max. 50mA/Average 50mA |
|
SIM Card |
Supporting 3V SIM Card |
|
Antenna |
50 Ω SMA Antenna interface |
|
Temperature range |
-20-+60 °C |
|
Humidity range |
Relative humidity 90% (condensation free) |
|
Exterior dimension |
110mm*90mm*40mm |
|
Net Weight |
600 g |
|
Parameter item |
Reference scope |
Standard Package list:
GSM Gate Opener * 1
Power supply adapter * 1
User Manual * 1
CD (Pc programmer tool) * 1
GSM Antenna * 1
Package Size: 110mm*90mm*40mm(W*D*H)
Weight: 600g
Optional Accessories:
Door Sensor,
Motion Sensor,
Temperature Sensors ,
and others.
