| Model: | 004 |
|---|---|
| Brand: | TSSC |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Bars, Rods, Angles, and Stainless Steel Shapes |
| Label: | steels , bars |
| Price: |
US $355
/ mt
|
| Min. Order: | 20 mt |
| Live Chat: | Last Online:25 Apr, 2015 |
SI
Founded in 1996, Tangshan Shengcai Steel Co., Ltd. Specialies in producing angles. Covering an area of 450 acres and with fixed assets around RMB800 million, there are totally three production lines including 850#, 650# and 550# and the annual capacity is 3,000,000 metric tons. There are about 950 employees in the factory at present.

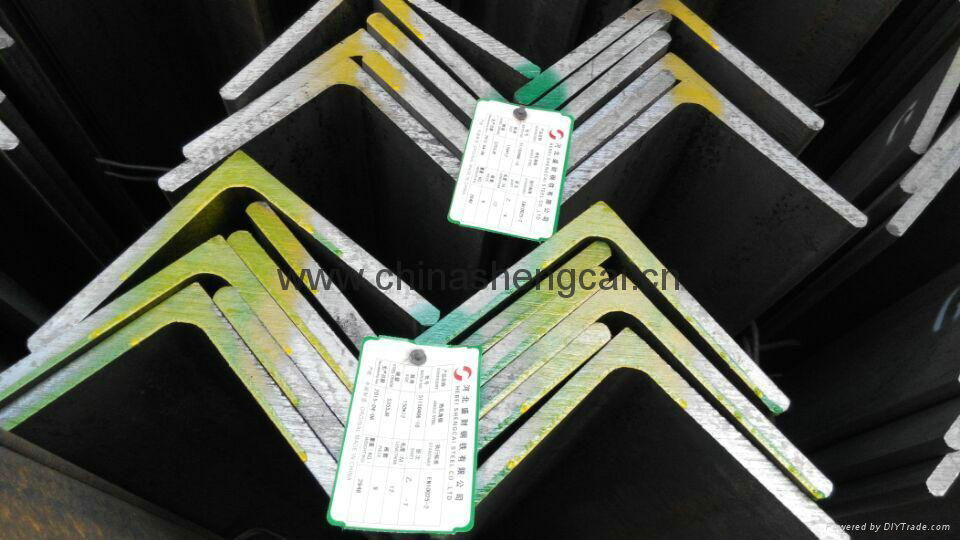

Shengcai steel now could produce various of angles, which is up to 2000 types. For the scope of production, angles from 20*20mm to 250*250mm. The usual grades here are Q235/Q345/Q420 of G/B standard; SS400/SS540 of JIS standard; S235JR/S275JR/S355JR/S355JO of EN standard; A36, A572 gr.50/60 of ASTM grades, etc. Now they are widely used in transmission towers, vessels and other architectures.
The factory focuses on quality improvement. Now the equipment for chemical composition & mechanical properties is of top-ranking in China. The products here have got improved by ISO 9001-2000, CCS, KS, BV, ABS, GL, LR, DNV and CE certification. Because of the stable quality and competitive prices, the products not only sell well in domestic market, but also export to Korea, Singapore, Malaysia, Indonesia, Vietnam, Saudi Arabia, UAE, Sudan, Nigeria, Chile, Peru and many other countries.
USUAL SIZES ARE AS FOLLOWS:
| Specification(mm) | Theoretical Weight(kg/m） | Specification（mm) | Theoretical Weight(kg/m） |
| 25*25*2.5 | 0.98 | 100*100*8 | 12.1 |
| 25*25*3 | 1.12 | 100*100*10 | 14.90 |
| 30*30*2.5 | 1.17 | 100*100*12 | 17.90 |
| 30*30*3 | 1.36 | 100*100*13 | 19.10 |
| 40*40*3 | 1.83 | 120*120*8 | 14.70 |
| 40*40*4 | 2.41 | 120*120*10 | 18.20 |
| 40*40*5 | 2.92 | 120*120*12 | 21.50 |
| 45*45*4 | 2.74 | 130*130*9 | 17.90 |
| 45*45*5 | 3.38 | 130*130*10 | 19.70 |
| 50*50*4 | 3.06 | 130*130*12 | 23.40 |
| 50*50*5 | 3.77 | 130*130*15 | 28.80 |
| 50*50*6 | 4.43 | 140*140*10 | 21.49 |
| 55*55*5 | 4.29 | 140*140*12 | 25.52 |
| 60*60*4 | 3.68 | 140*140*14 | 29.49 |
| 60*60*5 | 4.55 | 150*150*12 | 27.30 |
| 60*60*6 | 5.41 | 150*150*15 | 33.60 |
| 65*65*6 | 5.91 | 160*160*12 | 29.39 |
| 65*65*8 | 7.66 | 160*160*14 | 33.99 |
| 70*70*5 | 5.76 | 160*160*16 | 38.52 |
| 70*70*6 | 6.38 | 175*175*12 | 31.80 |
| 70*70*7 | 7.35 | 175*175*15 | 39.40 |
| 75*75*6 | 6.85 | 180*180*12 | 33.16 |
| 75*75*8 | 8.92 | 180*180*14 | 38.38 |
| 75*75*9 | 9.96 | 180*180*16 | 43.54 |
| 80*80*6 | 7.32 | 180*180*18 | 48.63 |
| 80*80*7 | 8.48 | 200*200*15 | 45.30 |
| 80*80*8 | 9.55 | 200*200*20 | 59.70 |
| 90*90*6 | 8.28 | 200*200*25 | 73.60 |
| 90*90*7 | 9.59 | 250*250*20 | 76.18 |
| 90*90*8 | 10.90 | 250*250*25 | 93.77 |
| 90*90*9 | 9.59 | 250*250*30 | 111.32 |
| 90*90*10 | 13.30 | ||
| 100*100*6 | 9.22 | ||
| 100*100*7 | 10.70 |
