3000Liter/Hr High Efficiency Insulation Oil Purification System Machine

Model:ZYD-30
Brand:ASSEN
Origin:Made In China
Category:Industrial Supplies / Machinery / Pumps Vacuum Equipment
Label:oil purification , oil purifier machine , vacuum oil purifier
Price: US $6000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Chongqing Assen Power Equipment Co.,LTD

Free MemberChong Qin - China
Live Chat:Last Online:27 May, 2020

Product Description

Pls contact: Jay Ai

Email:assenoilpurifier@hotmail.com

jay.ai@assenpe.com

Tel/Fax:+86-23-88703683
Mob:+86-13883284301
Skype:assenoilpurifier@hotmail.com

http://www.assenpe.com

 http://www.oilrecondition.com



Keywords: insulation oil purification, oil purifier, transformer oil filtration,Ultra high voltage oil regeneration plant, oil purifier, transformer oil regeneration,





Application:

Moisture is one of the most important contaminants that affect the performance of the dielectric fluid and ultimately affect the life of the transformer. ASSEN ZYD high efficiency insulation oil purification unit combines unique advanced vacuum dehydration, degassing components and three-stage filtration system to quickly and efficiently separate water, gas, particles and oil to restore the performance of insulating oil.







Features:

1. ZYD machine is equipped with two-stage vacuum pumping speed and advanced dewatering and degassing system. It adopts large-area three-dimensional flashing technology to remove harmful components such as moisture, impurities and hydrocarbons in oil quickly and efficiently, and improve the flash point and dielectric strength of insulating oil.

2. The ZYD equipment is capable of oiling and vacuuming the transformer body during installation or overhaul.

3. ZYD is equipped with a high precise filtration system, which uses high-quality filter elements and multi-stage filtration step-by-step encryption to effectively remove mechanical impurities in the oil and configure automatic detection of filter contamination.

4. ZYD machine is equipped advanced automatic thermostat control system, automatic liquid level control system, automatic defoaming control system, and automatic pressure protection system to ensure high performance operation of the equipment.

5. ZYD machine is user-friendly, low noise, easy to operate, long maintenance interval, low energy consumption and low operating cost.

6. ZYD machine is equipped with interlocking safety protection system, which is connect with oil discharge system, vacuum dehydration system, and heating system to avoid the adverse effects caused by misoperation.





● With filter replacement indicator and filter saturation stop device.

● It is equipped with leakage and overload stop devices to protect the motor.

● With phase sequence, phase loss protection function, sudden shutdown safety control system.









Optional Model:

  1. Optional P.L.C. intelligent panel control, touch screen operation and dynamic display according to user needs.
  2. Optional Online PPM Meter, Optional flow meter with accumulator function.
  3. Optional frequency converter, you can adjust the flow according to your needs
  4. Optional external port design for transformer vacuum pumping
  5. The whole structure can be made into mobile, fixed, fully enclosed, concealed, canvas, open type.
  6. Optional three stage high vacuum system for higher vacuum degree work.

Payment Terms:Please contact:jay Email:assenoilpurifier@hotmail.com for more details.

Product Image

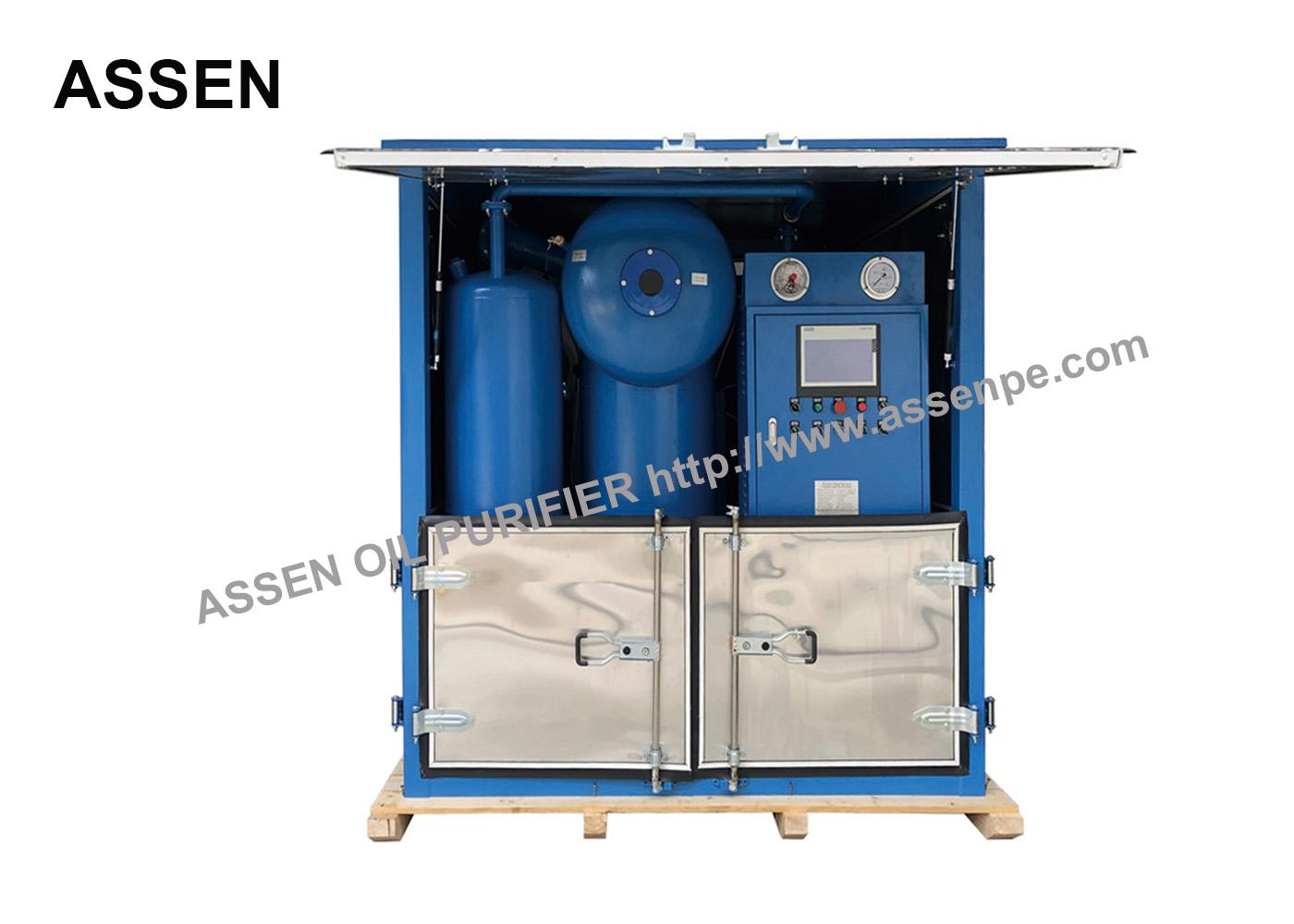

3000Liter/Hr High Efficiency Insulation Oil Purification System Machine 1
Img 1
3000Liter/Hr High Efficiency Insulation Oil Purification System Machine 2
Img 2
