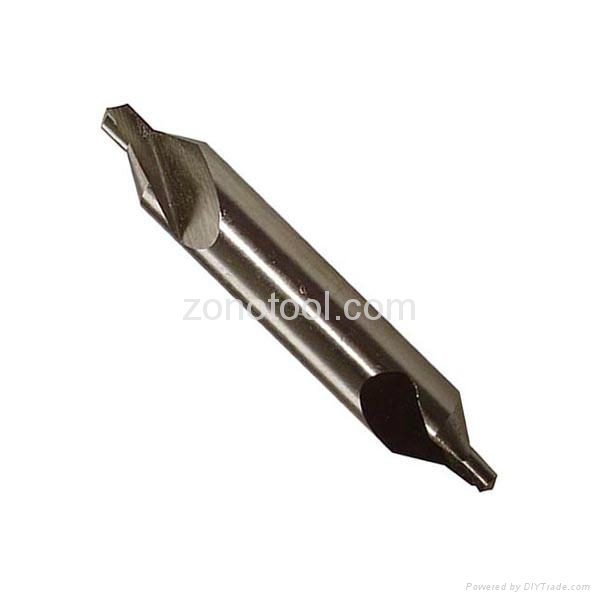

HSS Center Drills, Plain Type
* Plain Type HSS Center Drills are designed to produce accurate center holes in components
which require machining between centers.
* All Center Drills are Fully Ground, Spiral Flute, right hand, 60º included angle.
* Left hand , 82º & 90º included angle are available on request.
* HSSCo Center Drills are available on request.
* Titanium Coated are available on request.
* Center Drills Set are available on request.

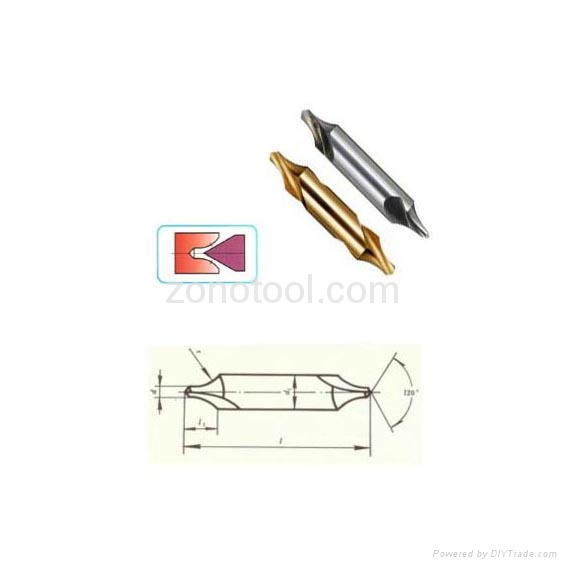

Metric Size: ( DIN333 Type A, Plain Type )
|
Item No. |
Drill Dia. |
Body Dia. |
Flute Length |
Overall Length |
|
CDH1001 |
1.0mm |
3.15 |
1.9 |
31.5 |
|
CDH1002 |
1.25mm |
3.15 |
2.2 |
31.5 |
|
CDH1003 |
1.6mm |
4 |
2.8 |
35.5 |
|
CDH1004 |
2.0mm |
5 |
3.3 |
40 |
|
CDH1005 |
2.5mm |
6.3 |
4.1 |
45 |
|
CDH1006 |
3.15mm |
8 |
4.9 |
50 |
|
CDH1007 |
4.0mm |
10 |
6.2 |
56 |
|
CDH1008 |
5.0mm |
12.5 |
7.5 |
63 |
|
CDH1009 |
6.3mm |
16 |
9.2 |
71 |
|
CDH1010 |
8.0mm |
20 |
11.5 |
80 |
|
CDH1011 |
10.0mm |
25 |
14.2 |
100 |
Inch Size: ( Plain Type )
|
Item No. |
Size # |
Drill Dia. |
Body Dia. |
Flute Length |
Overall Length |
|
CDH2001 |
1# |
3/64" |
1/8" |
3/64" |
1-1/4" |
|
CDH2002 |
2# |
5/64" |
3/16" |
5/64" |
1-7/8" |
|
CDH2003 |
3# |
7/64" |
1/4" |
7/64" |
2" |
|
CDH2004 |
4# |
1/8" |
5/16" |
1/8" |
2-1/8" |
|
CDH2005 |
4-1/2# |
9/64" |
3/8" |
9/64" |
2-1/2" |
|
CDH2006 |
5# |
3/16" |
7/16" |
3/16" |
2-3/4" |
|
CDH2007 |
6# |
7/32" |
1/2" |
7/32" |
3" |
|
CDH2008 |
7# |
1/4" |
5/8" |
1/4" |
3-1/4" |
|
CDH2009 |
8# |
5/16" |
3/4" |
5/16" |
3-1/2" |
|
CDH2010 |
9# |
11/32" |
7/8" |
11/32" |
3-5/8" |
|
CDH2011 |
10# |
3/8" |
1" |
3/8" |
3-3/4" |
