Features:

Smart designed with elegant curves. Anti-vandalism, Special painting.

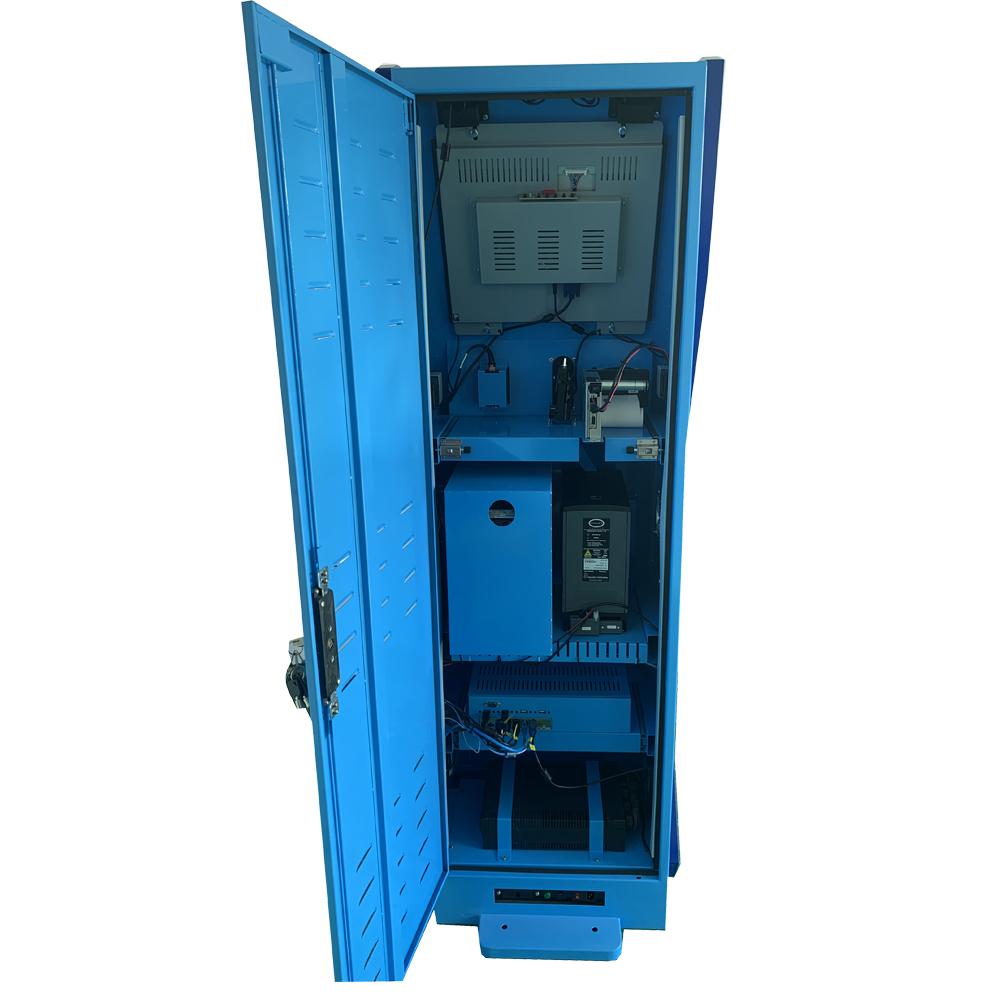

Kiosk enclosure:

High quality steel construction with 14 gauge steel.

Optional lower front accessible - hydraulic arm support
Finish: powder coat or brushed metal front laminate option
Optional full-color graphic front
Optional powder coat color - all colors available
Lock-secured chassis for all components
Ability to bolt to floor or wall (with bracket)
UL approved power supply and Ethernet port

Functions:

Payment, Information search, slot card, payment, shopping guide, treatment

guide, navigation, etc

1. Internet/information access

2. Account inquiry and transfer

3. Retail/ordering/payment

4. Ticketing/photo card printing

5. Photos,ring tones download

6. Product information release

7.  Advertising display

8. Inforamtion search

 Configuration:

 touch screen+lcd monitor+embed computer+enclosure(kiosk case)+bill acceptor+thermal printer
TFT LCD :

Grade A+ LCD display:

Resolution: 1280*1024

Screen size: 15, 17, 19, 22, 32 inch Grade A+ LCD monitor

Brightness: 300cd/m2

Contrast ratio: 1000:1

Response time: 5MS

Monitor: Samsung/LG original brand

Infrared Touch screen or Resistive touch screen:

Water proof,dust proof,vandal-proof SAW touch screen ,or resistive or infared technology touchscreen.

Material: standard pure glass with thickness of 3mm

heat tempered glass with thickness of 6mm (optional)

Resolution: 4,096 x 4,096 pixels.

Deviation of error: <2mm

Light transmittance: ≥92%

Surface hardness: 7 MoHs scale

Lifetime: 50,000,000 times at one single location

Response time: less than 16 ms

Touch activation force: 10 to 100g

Computer

Industrial mainboard with Intel G1037 CPU

(or Intel H61 mainboard with Intel G2030 CPU)

500GB HDD, 2GB Ram, cooling fans, video card,

10/100m net card, power supply, RJ45 interface, USB&RS232 port
