| Model: | RTU5020~RTU5022 |
|---|---|
| Brand: | King Pigeon |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | GSM SMS , Remote Switch , Timer Controller |
| Price: |
US $10
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:04 Aug, 2022 |
Model: RTU5020~RTU5022

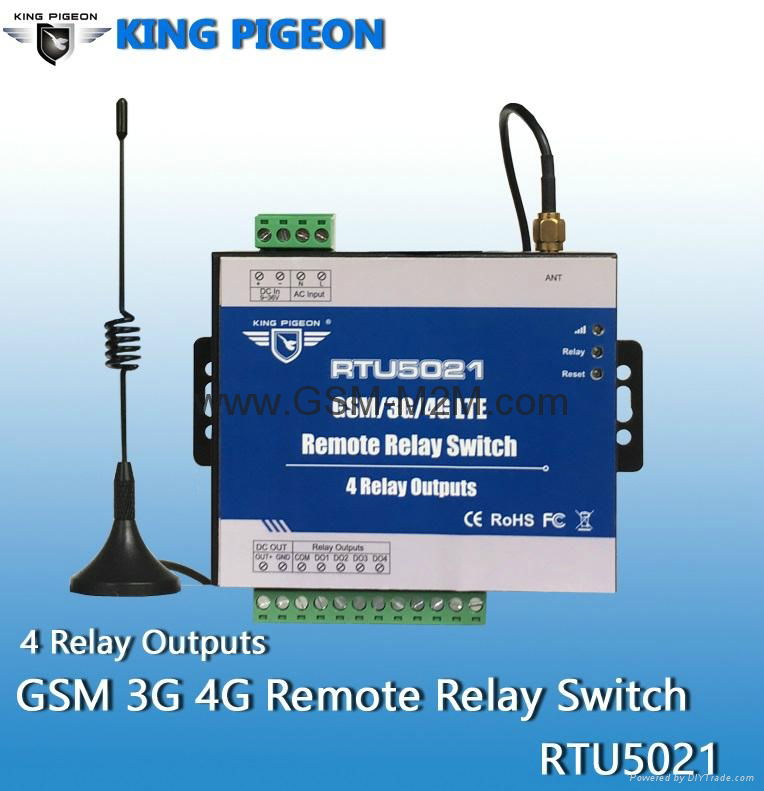

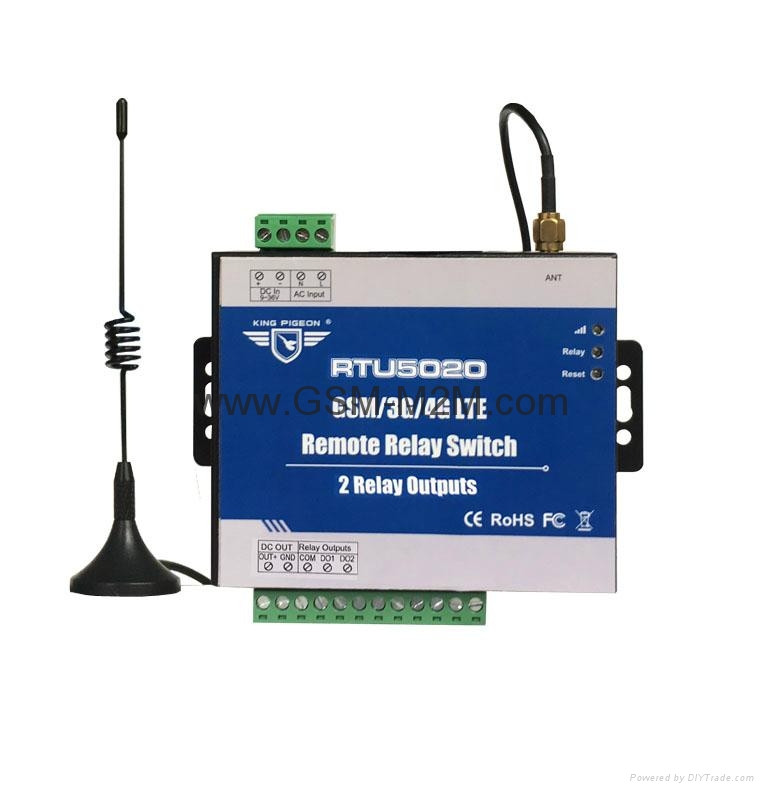

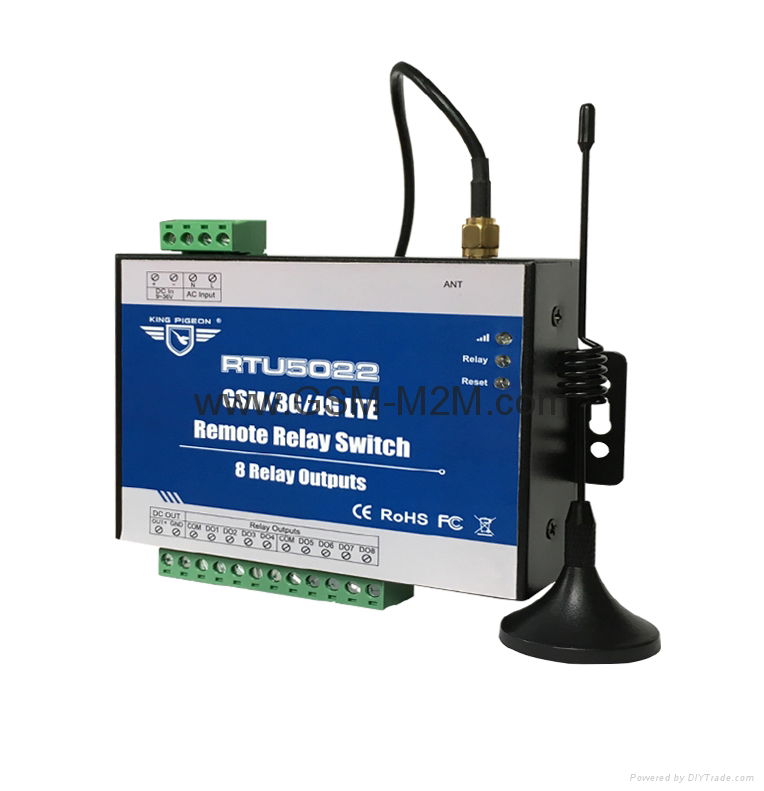

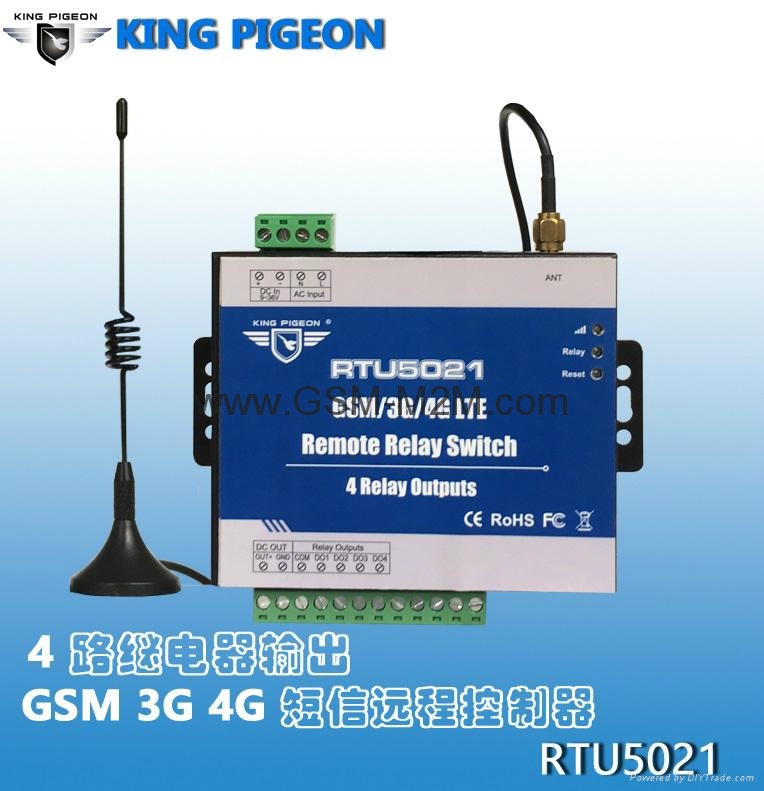

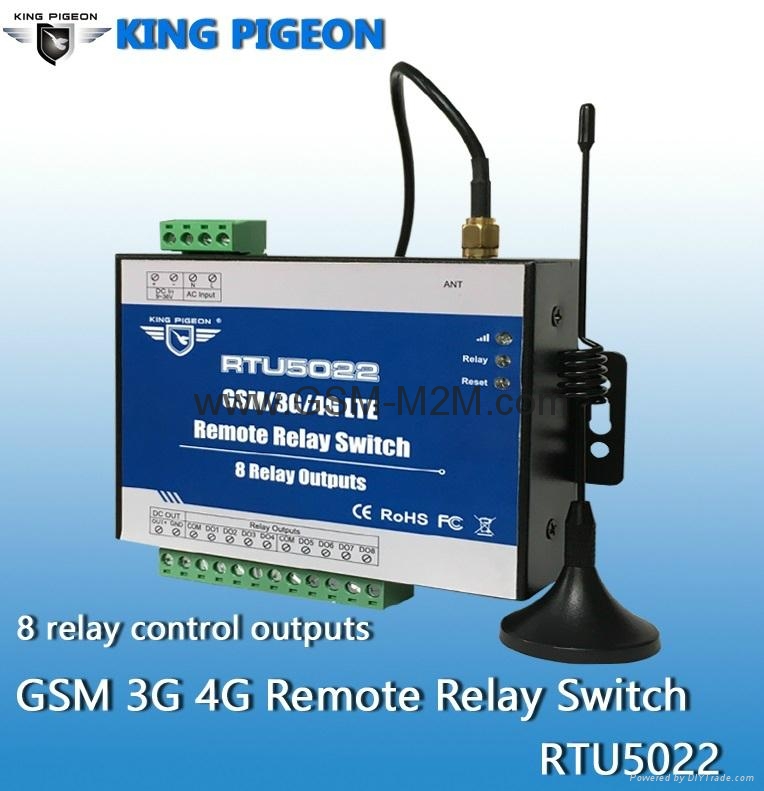

Name: GSM/3G/4G SMS Remote Relay Switches
The GSM SMS Remote Switches inbuilt GSM/3G WCDMA/4G LTE Module, equipped 2/4/8 Solid Relay inside, special for remote switch ON/OFF onsite devices by SMS or internet or timers automatically. The GSM/3G/4G Remote Switches can be used as a remote switch, and timer switches, it suitable for lots of applications that need remotely switch ON/OFF devices, e.g.: Street Light control.
|
Model |
GSM |
GPRS |
3G WCDMA |
4G LTE |
Relay Outputs |
Record |
|
RTU5020 |
V |
V |
V |
V |
2 |
2000 |
|
RTU5021 |
V |
V |
V |
V |
4 |
2000 |
|
RTU5022 |
V |
V |
V |
V |
8 |
2000 |
|
Notice |
1． Default version is GSM； 2． For 3G WCDMA and 4G LTE version, please tell our sales where would you like to use them. |
|||||
1. Inbuilt industrial GSM module, 3G WCDMA and 4G LTE Module are optional;
2. Widely Rated voltage range, default is 9~36VDC, optional: 110~220VAC@50Hz and 9~36V DC;
3. 2 /4/8 Relay outputs, 5A/30VDC,5A/250VAC;
4. Up to 10 timers to program the Relays switch ON/OFF automatically;
5. Supports Switch ON/OFF by SMS commands or GPRS commands;
6. Supports pulse outputs by SMS Commands, the pulse width is 0~999seconds;
7. Supports remotely restart the device, and configure it by SMS commands remotely;
8. Supports daily report status to users automatically;
9. Supports over voltage protection and phase-reversal protection;
10. 10 SMS Alert user numbers, can program to receive daily report.
