2'-10' ANSI Layer cuplock scaffold system for heavy loading construction

Model:WK-A
Brand:HSS
Origin:Made In China
Category:Construction & Decoration / Construction Accessories
Label:ring lock scaffold , scaffold system , frame scaffolding
Price: US $1400 / ton
Min. Order:19 ton
Inquire Now Add to Basket

Member Information

Detail

Changsha Xiangjia Metal Material Co., LTD

Free MemberHu Nan - China
Live Chat:Last Online:04 Aug, 2020

Product Description

Details:

1. Material: Q345 for the standard, Q235 for other components or as your request
2. Diameter: 48.3mm
3. Thickness of the tube: 3.25MM Standard

4. Rosette: Q345, 10MM thickness

5. Components: Standard, Ledger, Brace, intermediate transon, Plank, Ladder, Base jack, Start collar
6. Standard with spigot, ledger and brace with forged connect point
7. Having our own HDG workshop. we can control the zinc thickness much better
8. Port of loading: Tianjin
9. Payment Terms: 30% payment in advance, 70% against the copy of B/L
10. Samples are available



Model No. Name                                     Specification                          Unit Weight
LBS/PCS
Cuplock Vertical Standard:  OD 48.3* TK3.2mm, Q345 steel tube, Hot Dip Galvanized
WK-VS-1.0 Vertical with spigot 1000mm (3'3'') 12.93
WK-VS-1.5 Vertical with spigot 1500mm (4'11'') 18.84
WK-VS-2.0 Vertical with spigot 2000mm (6'6’') 23.7
WK-VS-2.5 Vertical with spigot 2500mm (8‘2’‘) 30.2
WK-VS-3.0 Vertical with spigot 3000mm (9'10'') 34.6
Cuplock Horizontal Leger:  OD 48.3* TK3.2mm, Q345 steel tube, Hot Dip Galvanized
WK-HL-2 Horizontal 610mm (2') 5.52
WK-HL-3 Horizontal 914mm (3') 7.96
WK-HL-4 Horizontal 1219mm (4') 10.43
WK-HL-5 Horizontal 1524mm (5') 12.89
WK-HL-6 Horizontal 1829mm (6') 15.36
WK-HL-8 Horizontal 2438mm (8') 20.26
WK-HL-10 Horizontal 3048mm (10') 25.19
Cuplock Diagonal Brace:  OD 48.3*TK2.4mm, Q345 steel tube, Hot Dip Galvanized
WK-DB-3 Diagonal Brace 914mm (3') 15.4
WK-DB-4 Diagonal Brace 1219mm (4') 16.06
WK-DB-5 Diagonal Brace 1524mm (5') 17.1
WK-DB-6 Diagonal Brace 1829mm (6') 18.2
WK-DB-8 Diagonal Brace 2438mm (8') 20.8
WK-DB-10 Diagonal Brace 3048mm (10') 23.8
Cuplock Intermediate Transon: OD 48.3* TK3.2mm, Q345 steel tube, Hot Dip Galvanized
WK-IM-3 Intermediate Transon 914mm (3') 10.97
WK-IM-4 Intermediate Transon 1219mm (4') 13.5
WK-IM-5 Intermediate Transon 1524mm (5') 16
WK-IM-6 Intermediate Transon 1829mm (6') 18.57
WK-IM-8 Intermediate Transon 2438mm (8') 23.62
Scaffolding planks, Aluminum decking Unit Weight (LBS)
AD-AP3 Aluminum Planks 914mm (3') 14.6
AD-AP4 Aluminum Planks 1219mm (4') 18.2
AD-AP5 Aluminum Planks 1524mm (5') 21.8
AD-AP6 Aluminum Planks 1829mm (6') 25.5
AD-AP7 Aluminum Planks 2134mm (7') 29
AD-AP8 Aluminum Planks 2438mm (8') 32.7
AD-AP10 Aluminum Planks 3048mm (10') 40
   Steel scaffold deck, scaffold plank, steel walkboard Unit Weight (LBS)
YP-P-3 Steel scaffold plank 914mm (3') 14.83
YP-P-4 Steel scaffold plank 1219mm (4') 18.88
YP-P-5 Steel scaffold plank 1524mm (5') 22.92
YP-P-6 Steel scaffold plank 1829mm (6') 26.97
YP-P-7 Steel scaffold plank 2133mm (7') 31.02
YP-P-8 Steel scaffold plank 2438mm (8') 35.07
YP-P-10 Steel scaffold plank 3048mm (10') 43.56



Company Information

Why US



Tianjing Heshunchang Scaffolding Co. Ltd is  a leading manufacturer of American-type frame scaffolding,

system scaffoldings and accessories,galvanized steel pipe,Frames,steel props, metal planks, Aluminum planks, and other related products.



• 7 years experience, sales volume reaches 1.5 billion US dollars.
• Good quality control in production process, ISO9001:2008,SGS,BV approved.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
•Our factory is close to the port-Xingang,Tianjin.



ADTO Scaffolding Accessoreis as below:

1. Ringlock System Scaffold

2. Cuplock Scaffold System

3. Sidewalk Sheds & Shoring Post

4. Frame Scaffold & Pipe scaffolding

5. Tube and Clamps

6. Aluminum decking, Aluminum polywood scaffold deck,

    Steel Scaffold Plank, Wood walkboard, OSHA Scaffold Planks

    Screw Jack, U-head Jack, base plate



Contacts



Welcome to join in ADTO family, we are ready for any of your construction materials.

  Tel: +86-731-89706529

  QQ: 3224559354

  Cell/whatsapp/wechat: +86-135-10448495

  Attn: Sophia Hou

  E-mail: sophia(at)hsssteel.com


Payment Terms:T/T, L/C

Product Image

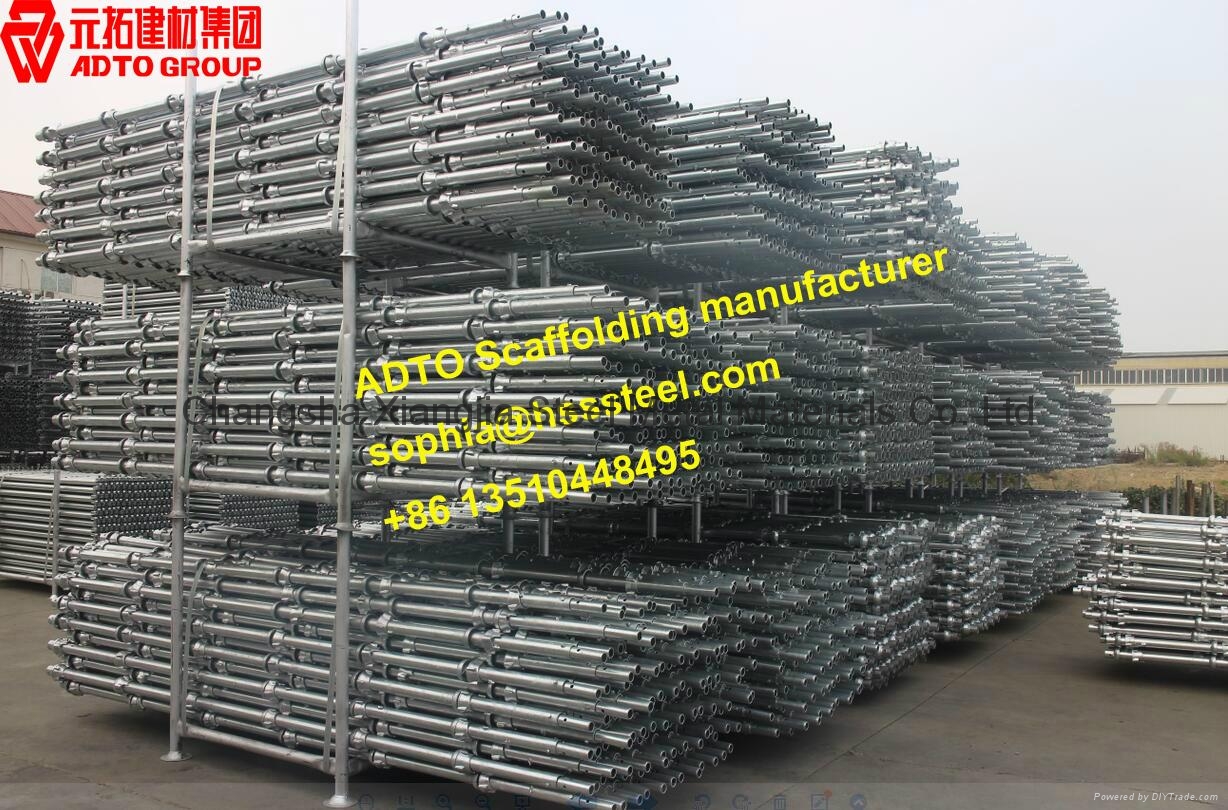

2'-10' ANSI Layer cuplock scaffold system for heavy loading construction 1
