GPS test software NS - 87 vehicle positioning terminal plug-in module
Product Description
Compatible with GR - 87 and the M - 87 and ET - 387 plug-in NS - 87 - a detailed description of the GPS module:
Compatible HOLUXGR - 87, the M - 89, the M - 91, the M - 87, the M - 89, the M - 91, GR - 87, ET - 387, etc
˙ chipset: SiRFStar Ⅲ ˙ frequency: L1, 1575.42 MHz
˙ C/A code: 1.023 MHz channel ˙ : 20 satellite channel
˙ sensitivity: - 159 dBm ˙ positioning: 10 meters, 2 d RMS, 5 meters, 2 d RMS, WAAS open
˙ speed: 0.1 m/s ˙ : 1 millisecond satellite synchronization time
˙ coordinates: the WGS - 84 ˙ relocation: an average of 0.1 seconds
˙ hot boot: an average of 1 second ˙ warm boot: 38 seconds on average
˙ cold boot: an average of 42 seconds ˙ height limit: 18000 meters (60000 feet) is the largest
˙ speed limit: 515 meters/SEC (1000 knots) largest ˙ speed restrictions: less than 4 g
˙ shaking restrictions: 20 m/c * * 3 ˙ power input: 3.3 V, 5 V DC input
˙ power consumption: 42 ma (continuous) ˙ volume size: 25.4 mm * 25.4 mm * 7 mm
˙ transmission speed: 4800 to 4800 BPS can be adjusted
˙ output format: SiRF binary or NMEA 0183 GGA, GSA, GSV, RMC, vacations, GLL

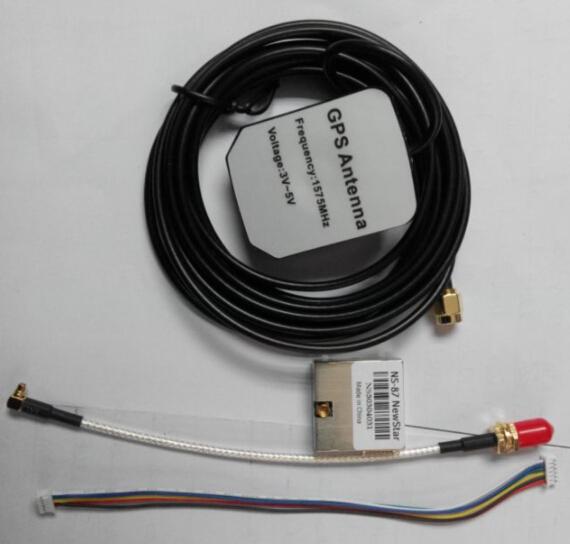

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
