ultra capacitor 120f high power super capacitor EDLC

Model:-
Brand:Alice
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Capacitor
Label:supercapacitor , ultracapacitor , cylindrical
Price: US $0.1 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Chengdu Z-Tech Polymer Material Co., Ltd.

Free MemberSi chuan - China
Live Chat:Last Online:23 Sep, 2015

Product Description

ultra capacitor 120f high power super capacitor



Product Description

Part number

Rated
Voltage
(V)

Rated
Cap.
(F)

Size

Max. ESR

Maximum
Continuous
Current(A)
(T=15°C)

Maximum
Peak
Current
(A)

Maximum
Leakage
Current
(72hrs/mA)

Power
Density
(W/kg)

Maximum
Energy
(W.h)

Energy
Density
(Wh/kg)

φD×L
(mm)

AC
(1kHz/mΩ)

DC
(mΩ)

ZNP2R7M107SS2245

2.7

100

22×45

8

12

8.09

61.3

0.300

3727

0.1013

5.2

ZNP2R7M207SS3050

2.7

200

30×50

6

9

11.6

96.4

0.600

2468

0.2025

5.1

ZNP2R7M257SS3055

2.7

250

30×55

6

9

12.1

103.8

0.650

2132

0.2531

5.6

ZNP2R7M367SS3560

2.7

360

35×60

4

5

16.8

173.5

1.000

2639

0.3645

5.5





Advantages

1,          Our company has independent intellectual property rights of ultracapacitors 4 invention patents, 3 utility model patents;Lithium ion battery diaphragm 3 invention patents, 1 utility model patents

2,          Our company has independent research team,With Sichuan University, Southwest JiaoTong University, Chengdu branch ,Chinese Academy Of’ Sciences,Research Institute Of Tsinghua University and other colleges and universities academy,has established long-term close relations of cooperation.

3,          Our company has established lithium ion battery diaphragm laboratory, energy storage device laboratory, energy storage materials laboratory, testing and application laboratory

    PS:If you have any question you can call me  when you feel free.

         We can do according to your requirement.


Payment Terms:TT/LC/Paypal

Product Image

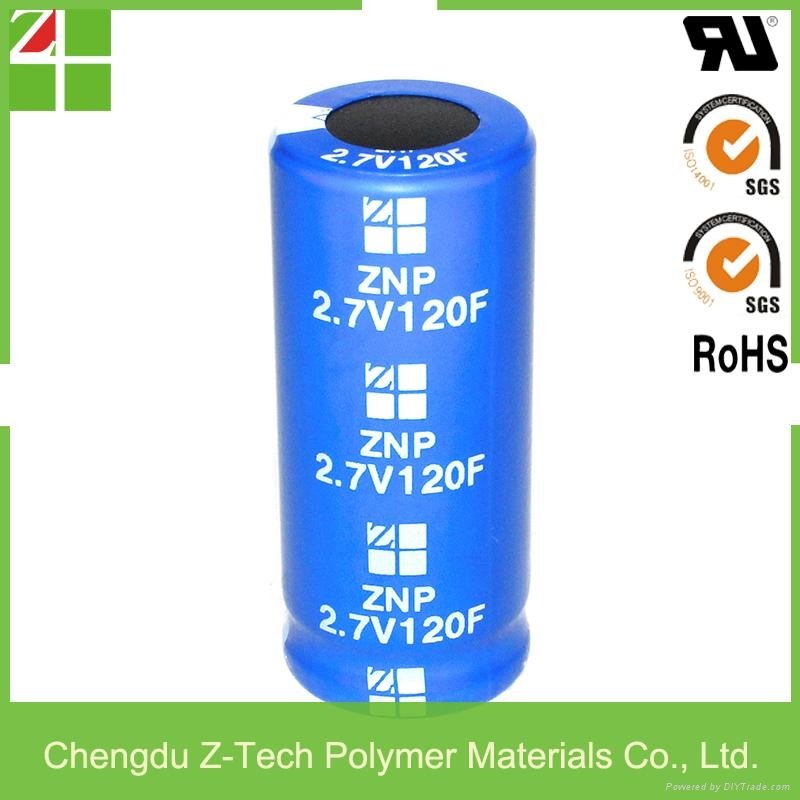

ultra capacitor 120f high power super capacitor EDLC 1
