20 Tubes Vacuum Tube Solar Collector

Model:XSK-VT-20
Brand:New Shuaike
Origin:Made In China
Category:Metallurgy , Mining & Energy / New Energy / Solar Energy
Label:solar collector , solar water heating , manifold collector
Price: US $289 / set
Min. Order:10 set
Inquire Now Add to Basket

Member Information

Detail

Shandong New Shuaike Energy Technology Co.,Ltd

Free MemberShan Dong - China
Live Chat:Last Online:03 Jul, 2017

Product Description

.jpgShandong New Shuaike Energy Technology Co.,Ltd

1. Evacuated Flat Panel Solar Collector Parameter

Items Materials and Specification
Vacuum Tube

a.materials:borosilicate glass;

b.three targets coating;

c.58/1800;

Aluminum Fin

a.materials:3003 aluminum;

b.thickness:0.25mm;

c.length:1620mm;

d.diameter:58

Heat Pipe

a.material:TP2 red copper

b.specification:

1.evaporation side:8x0.6mm

   condenser:14x1mm

2.evaporation side:8x0.6mm

   condenser:24x1mm

Sealing Plug

 a.wood or SUS 304 stainless steel with silicone ring

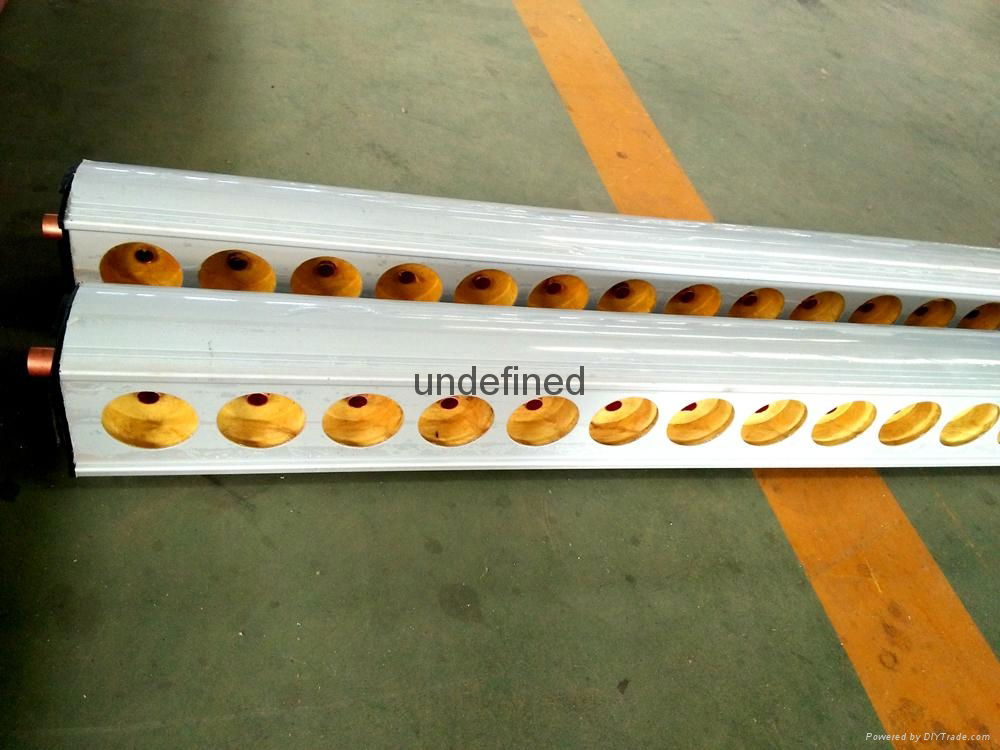

 Manifold







Aluminum Frame:

a.Tubes:20/30;

b.distance between:75mm;

c.material:alloy aluminum

  thickness:2mm

Glass Wool

Flow Pipe:

a.material:TP2 red copper;

b.specification:depends on customers' requirements

Side Cover:

a.material:nylon

 Tube Holder  a.material:nylon
 Package  carton box and foam
 Bracket

 a.material:aluminum

b.thickness:2.0mm

Accessories

(optional)

a.bolt material:SUS304 stainless Steel;

b.heat-conducting silicone grease;

c.depends on customers' requireemtns

2.Our advantage

  • own factory for custermizing and competitive price;
  • many years' producing experience ensures the quality;

3.Products Show


4.Company Show

company show.jpg

5.Workshop Show


6.Company Exhibition Show

Company Exhibition room.jpg

7.Export Loading


8.Contact Information

Marketing Manager: Nicolas Wang

Skype:newshuaike

QQ:2764455047

Should Any of the Above Information you have interest,please feel free to contact me.

.jpg


Product Image

20 Tubes Vacuum Tube Solar Collector 1
Img 1
20 Tubes Vacuum Tube Solar Collector 2
Img 2
20 Tubes Vacuum Tube Solar Collector 3
Img 3
20 Tubes Vacuum Tube Solar Collector 4
Img 4
20 Tubes Vacuum Tube Solar Collector 5
Img 5
