| Model: | - |
|---|---|
| Brand: | xinlun |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment |
| Label: | UHF/VHF Coupler , filter , Repeater |
| Price: |
US $18
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:19 Apr, 2024 |

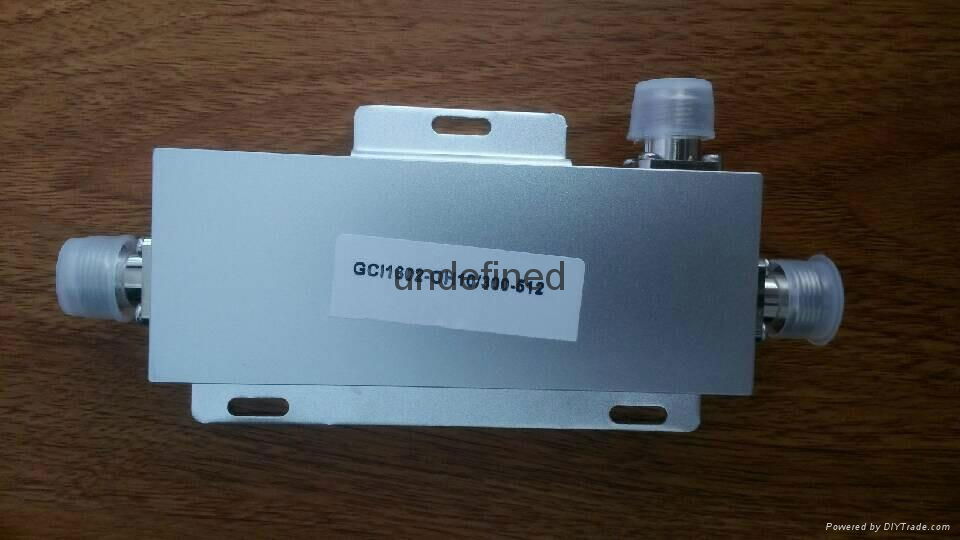

Coupler
|
Product N umber |
OHQ-400-10 |
OHQ-400-30 |
|
|
Electrical Specifications |
|||
|
Frequency Range |
300~500MHz |
300~500MHz |
|
|
VSWR |
＜1.3 |
＜1.3 |
|
|
Coupling |
-10±1dB |
-30±1dB |
|
|
Insertion Loss |
＜0.96dB |
＜0.3dB |
|
|
Isolation |
＞25dB |
＞25dB |
|
|
Maximum Input Power |
100W |
100W |
|
|
Normal Impedance |
50 |
50 |
|
|
Connector |
N-F |
N-F |
|
|
Operating Temperature |
-50℃~+70℃ |
-50℃~+70℃ |
|
|
Operating Humidity |
5%~95% |
5%~95% |
|
|
Mechanical Specificatios |
|||
|
Dimensions(L×W×H) |
157mm×79mm×31mm |
157mm×79mm×31mm |
|
|
Weight |
285g |
285g |
|
| Payment Terms: | T/T PAYPAL |
|---|---|
