|Origin:||Made In China|
|Category:||Consumer Electronics & Lighting / Lighting / LED Lighting|
|Label:||rgbw led strip , 24v rgbw led strip , rgbw led tape|
|Min. Order:||5 meter|

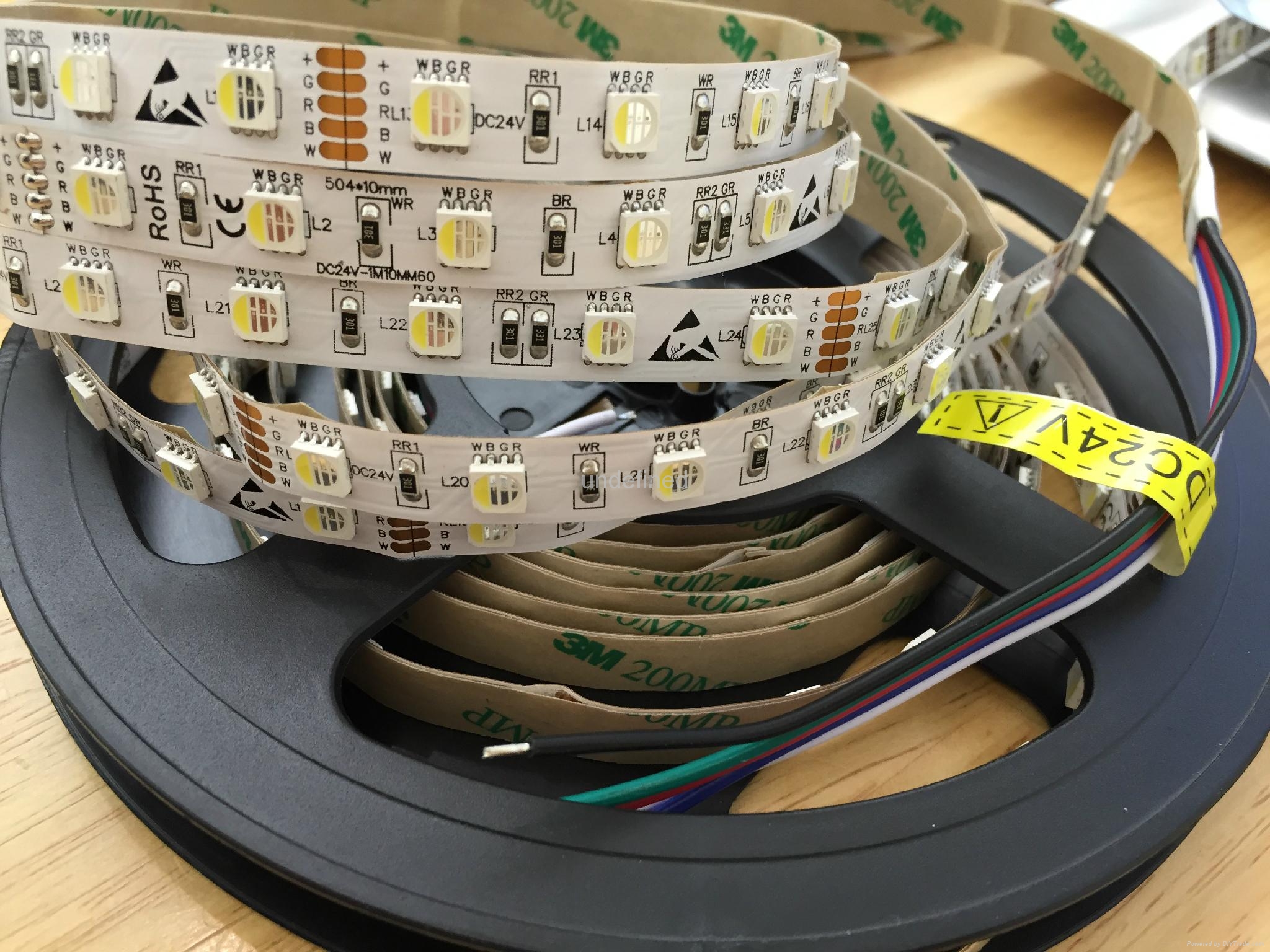

RGBW LED Strip Lights 24v (60 LED/14.4 Watt per meter) IP20 RGB+Cool White (all in 1 chip)
New Design RGBW LED Strip With Integrated RGBW LED chips, rated at 24V.
This is brighter than the standard RGB+W strips.
The quality of this product is superior (All chips with Ra>80)
Cutting length is every 6 LED's (10 CM)
RGBW LED Strip (4 in 1 integrated LED chip) has a power consumption of 14.4W per meter
That’s the consumption of all 4 colours together, meaning an average of 3.6W per colour per meter.
Note: Those are the average readings based on 5 meters length of strip, if the length is of strip is 1 meter the power consumption will be higher due to the reason that there is almost no voltage drop. We did a test for reference and the result is 18.48W or 0.77A (Load: 1 meter of RGBW LED Strip)
Every maximum of 5 meters RGBW LED strip is s est to be connnected with the LED controller directly using a separete 5 core cabling.
Never connect from one 5 meters roll to another even if our RGBW LED strips are supplied with 15CM wires both at the beginning and also at the end of every roll.
Cabling on both sides of the RGBW LED strip roll is usuful when you need to cut the roll into 2 different lenghts as an example 3+2 meters; in this case 15CM X cabels are ready for both pieces of the led strip and no extra soldering will be necessary.
