Waterproof LED Power Supply driver 12v for LED Strips

Model:YJP-V03012
Brand:YONGJIA POWER
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / Lighting Fixtures
Label:led power driver , led driver 12v , Led power supply 12v
Price: US $6 / pc
Min. Order:20 pc
Inquire Now Add to Basket

Member Information

Detail

SHENZHEN FUYONGJIA TECHNOLOGY CO.,LTD

Free MemberGuang Dong - China
Live Chat:Last Online:01 Dec, 2021

Product Description

30W Waterproof LED Power  driver

Specification

1.CE ROHS IP67 ceritificate.

2.High efficiency,save energy,friendly environment;High stability and low ripple

3.Integrity protection,over-loading,over-voltage ,over-current,and short circuit to keep the safety of power supply product and LED lamps

4.LED switching power supply using pulse width modulation(PWM) switching technology designed to ensure power supply stability and high efficiency.

5.The constant voltage output guarantees power source's stability,better LED lighting effects and a loger life

6. IP67 design for indoor or outdoor installations,Cooling by free air convection



30W Waterproof Led Power supply

Model

YJP-V03012

YJP-V03024

YJP-V03036

Output

Dc output voltage

12V

24V

36V

Output voltage tolerance

±3%

±3%

±3%

Rated output current

1.5A

0.75A

0.5A

Output current range

0~1.5A

0~0.75A

0~0.5A

Output power

30W

30W

30W

Ripple and the noise

100mVp-p

100mVp-p

100mVp-p

Start,rise,keep time

100ms,20ms,100ms/230VAC

Input

Input voltage range

90~264VAC 47~63Hz

Exchange input current

0.19A/230VAC

efficiency

92%

92%

90%

Impulse current

Cold start current 20A/230VAC

Leakage current

<0.5mA/240VAC

Protection

Short Circuit

Protection type:recovers automatically after fault conditions is removed

Overload

Overload protection@145~160%above peak rating

Over Temperature

protection type:shut down o/p voltage.re-power on to recover

Environment

Working temperature, humidity

-20C~+60C;20%~90%RH(Please refer to reduce the specified number load curve )

Keep temperature humidity

-40C~+85C;10%~95%RH No condensation

Vibrate resistance

10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis

Security

With stand Voltage

Compression sex

Between input and output:1.5KVAC

Insulation resistance

Between input and output:100M Ohms/500VDC

Security

Safety standards

IP67,CE Mark(LVD):EN 61547:2009; EN61000-3-2:2006+A1

EMC standard

EN55015:2006+A1:2007+A2:2009; EN 61547:2009; EN61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 61347-1:2008 EN 61347-2-13:2006

Connect the line request

Input:H03VV-F 3G*0.75mm Brown&blue&kelly VDE(200mm) Output:H03VV-F 2*0.75mm Black & Red VDE(200mm)

Other

Weight/Size

0.21kg/ 160*30*20(L*W*H)

packaging

Inner carton package, 100pcs cartaon box in a big outer carton box(100pcs/Box)

Note

1.All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25C conditions measuring income value.
2.Ripple and noise voltage is in 20 MHz bandwidth oscilloscope with 1 to 2 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3.Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.



Use areas:Suitable for LED electronic display screen, LED street lights, LED tunnel lights, LED bridge lights, LED panel lights, LED Spot Light, LED Flood Light,LED Garden Light, LED Industrial Mine Light, LED Wall Light, LED Ceiling Light, SMD Guardrail Tube, LED Bulb, LED Strips, LED Track Light, LED High Bay Light, LED Underground Light, LED Tunnel Light, LED the soft light bar, signboard lamp, wall lamp outdoor lamps and lanterns wash products, moving sign application, etc.



For more waterproof Power Supply available please visit our website:http://www.yj-power.com:We can design others according to customers requirement and OEM is welcome.

http://www.yj-power.com


Product Image

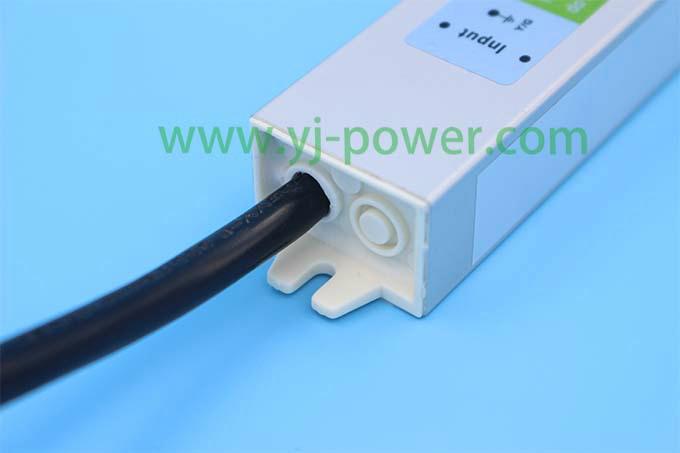

Waterproof LED Power Supply driver 12v for LED Strips 1
Img 1
Waterproof LED Power Supply driver 12v for LED Strips 2
Img 2
Waterproof LED Power Supply driver 12v for LED Strips 3
Img 3
Waterproof LED Power Supply driver 12v for LED Strips 4
Img 4
Waterproof LED Power Supply driver 12v for LED Strips 5
Img 5
