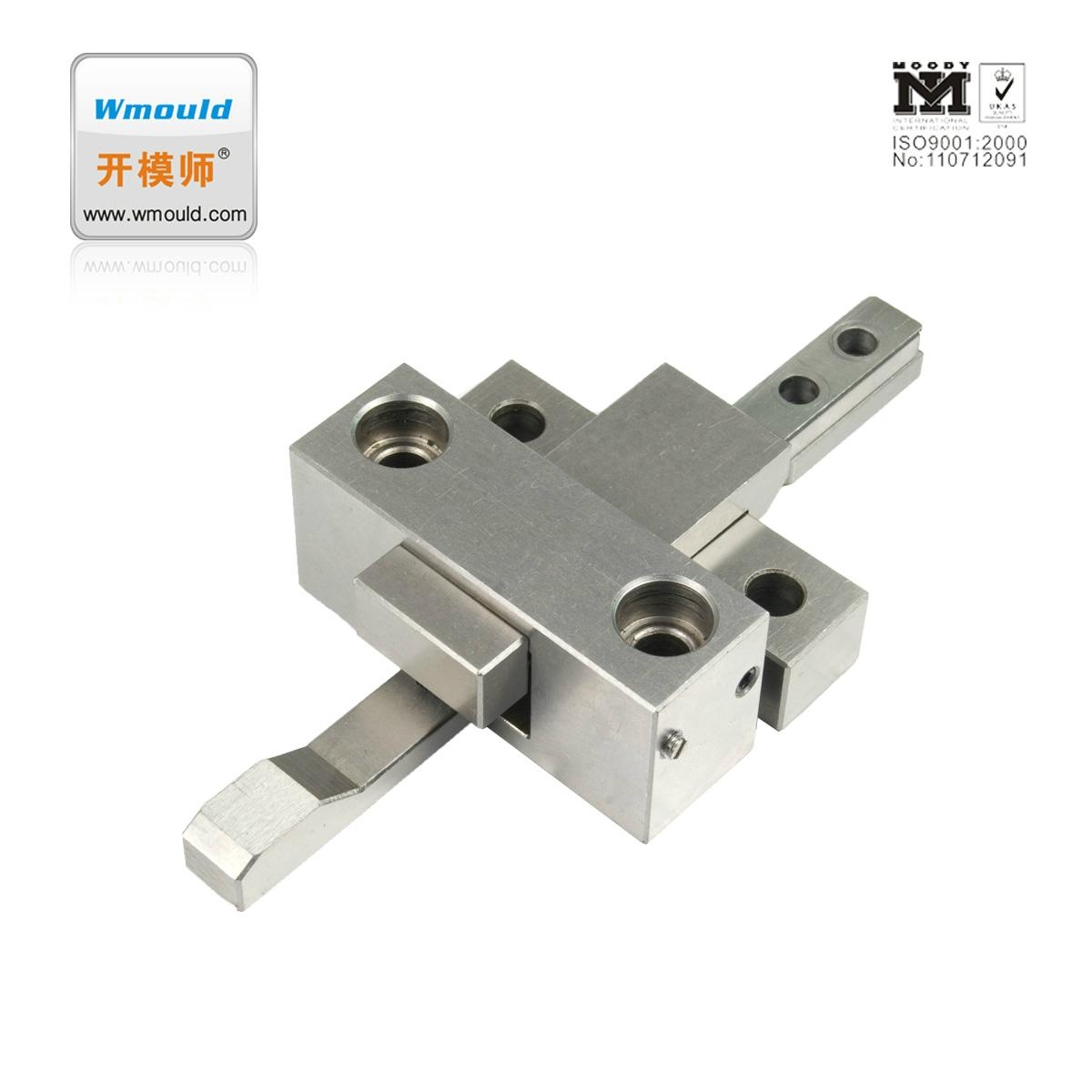

Mold latch lock with plastic injection mould component
Product Description
1.Material:steel
2.Product:mold component
3.Shaping Mode:Plastic injection Mould
4.Certification:ISO9001
Features: |
1.Due to double-sided locking system, safe and reliable. |
2.High-frequency heat-treatment,easy to process mounting hole on the tail of latch bar and control bar.
Installation Guidelines: |
Please install the housing in parallel to the parting line first. |
Before install the control bar, please cut it to the necessary length, form the bolt hole.Please tighten the screw when mold closed. |
(Please note: Make sure in a fully position mold before fix the control bar , and eliminate the clearance between the control bar and locking roller.) |
Please cut the latch bar to the necessary length , and installation in parallel to the parting line. |
Please install the latch lock symmetrically, otherwise, it would be fractured with the unbalanced force due to only one side of lock set be forced. |
Allows control of the mold plate opening sequence on mold bases, but not control of mold plate closing sequence function. |
If mold need to maintain, please remove the latch locks first. |
After installed, carry out a functional test, check whether the individual parts of the latch lock units moves smoothly, the stroke is applicable.Recommend testing on matched Molds machine or Injection machine, no lifting Machine. |
|
Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
