Product Description
| Features: |
| 1.Due to double-sided locking system,safe and reliable. |
| 2.The key parts are made of SKD11,with high wearproof, more durable. |
| 3.With the extended HV stroke latch bar, extensively usage. |
| 4.Big locking force,choose corresponding quantity and code according to mould size and load. |
|
(reserve three code to choose)
| Installation Guidelines: |
| Installed ball slide, request parallel with joint face to install. |
| Installed insert bar, cut off insert bar length according to real demand,and processing screw holes.make sure mould completely closed mould before locking screw, at the same eliminate the space between insert bar and ball, then to do with dowel pin holes. |
| Ball slide and insert bar symmetrical install on the mould,according to stroke to confirm body length. |
| Ensure various parts intall correctly and normal running, then to do with body and install fixed position dowel pin holes. |
| Every mould s est to symmetrical installed 2sets or above 2sets,please notes same stroke and symmetrical install during opening mould, if no symmetrical install or different stroke will cause latch lock break. |
| Coordinate function test,check these parts of latch lock structure whether smoothly and stroke coincide or not. |
| First remove latch lock device to follow-up operation if need maintenance and change. |
|
Product Image

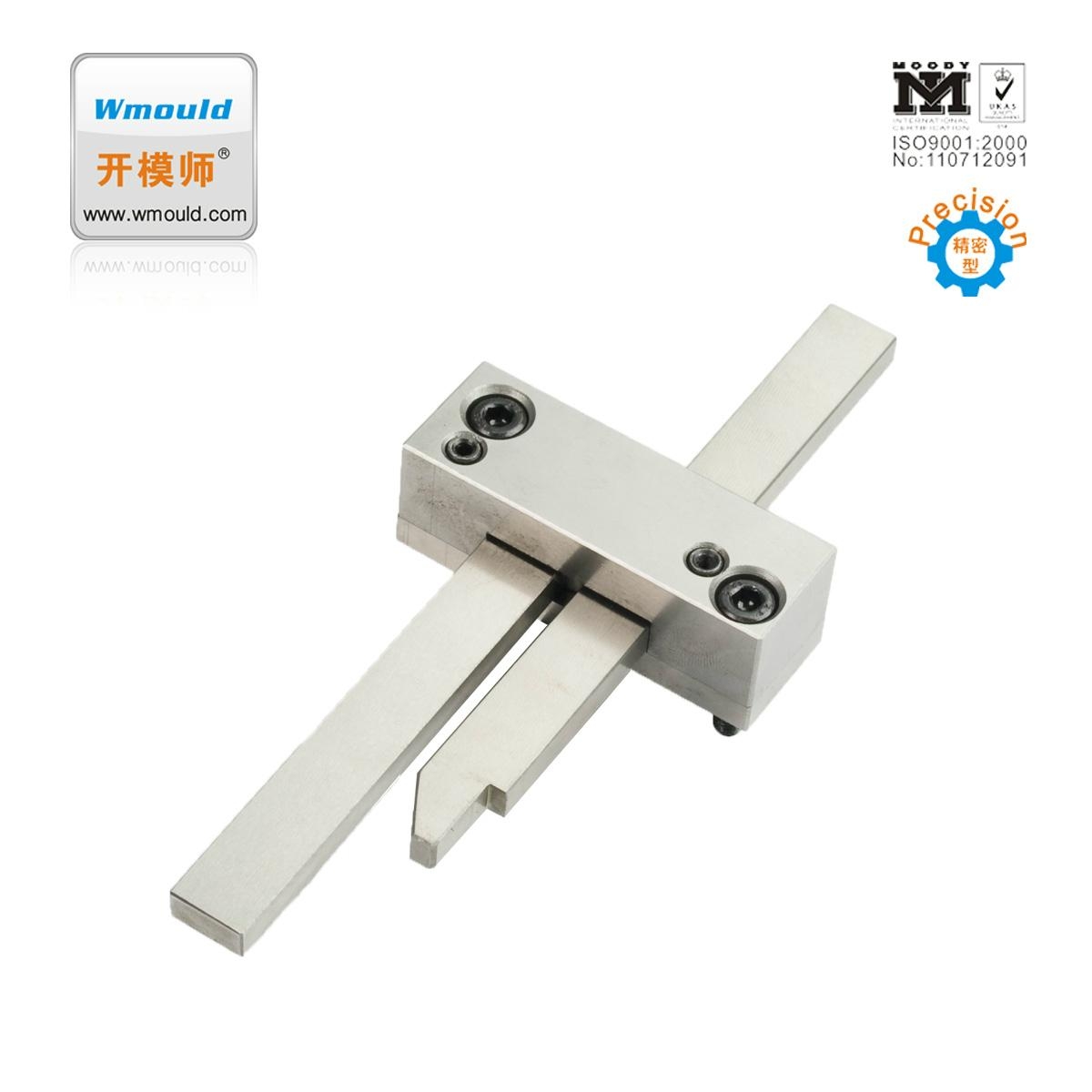

Img 1
Img 2
Img 3
Img 4
Img 5
