M24064A-B5,24064 Graphics LCD Module, 240x64 Display, STN blue

Model:M24064A-B5
Brand:MARVEL
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Display Parts
Label:LCD Module , graphic LCD Module , STN Yellow-Green
Price: US $26.5 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Marvel Electronics Co., Limited

Free MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:02 Sep, 2015

View all products. (20)

Product Description

M24064A-B5

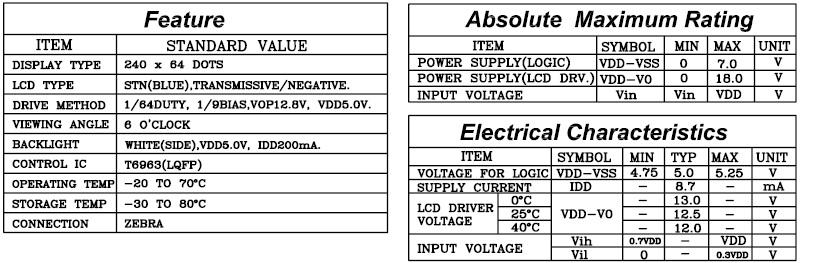

Display type: 240X64 dots

LCD type:   STN BLUE, transmissive/negative
Drive Method:1/64duty, 1/9bias, VOP 12.8V, VDD 5.0V
Backlight:  White(side), VDD +5.0V, Idd 200mA
Drive IC: T6963C(LQFP)
Viewing angle: 6 O’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA

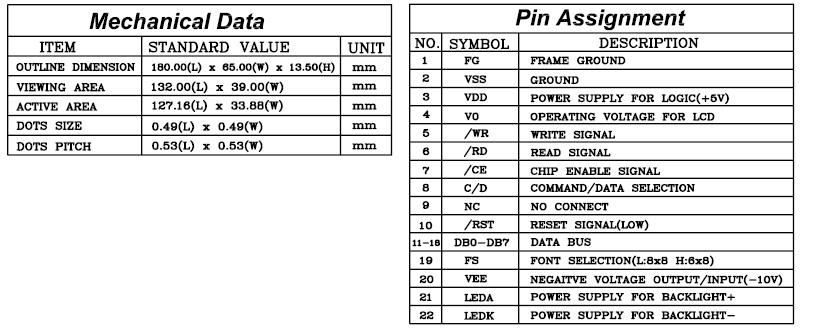

Outline dimension: 180.00mm(L)*65.00mm(W)13.50mm(H)
Viewing area:      132.00mm(L)*39.00mm(W)
Active area:      127.16mm(L)*33.88mm(W)
Dots size:         0.49mm(L)*0.49mm(W)
Dots pitch:        0.53mm(L)*0.53mm(W)

Warranty: 12 months



M24064AB2(1)M24064AB(1)M24064AM24064A-B5-1M24064A-B5-2M24064A-B5-3


Payment Terms:TT, PAYPAL

Product Image

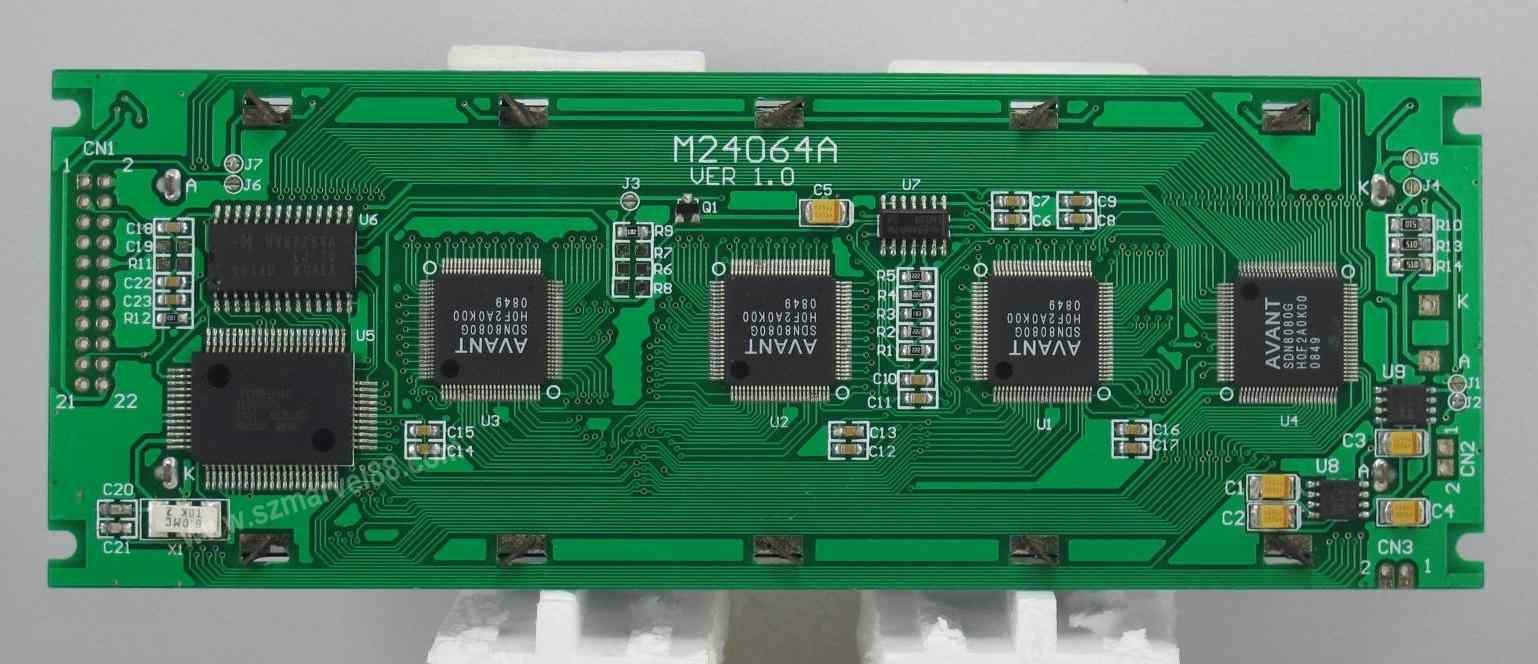

M24064A-B5,24064 Graphics LCD Module, 240x64 Display, STN blue 1
