GSM GPRS sucker attenna P2

Model:P2
Brand:SZHR
Origin:Made In China
Category:Electronics & Electricity / Antenna
Label:module Antenna , gsm antenna , module accessories
Price: US $1 / pc
Min. Order:1000 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Hurryup Technology Co., Ltd

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:12 Oct, 2023

Product Description

Products Name: External GSM-Cellular Magnetic Mount

Feature:
     ◆ Delivers high performance for all 2G/3G/3.5
     ◆ Networks worldwide.
     ◆ 800MHz to 2200MHz.
     ◆ Magnetic mount
     ◆ Custom cables and connectors available
     ◆ RoHS

Specification:
Communication System
Penta-band Cellular
AMPS
GSM
DCS
PCS
UMTS
Frequency(MHz)
824~896
880~960
1710~1880
1850~1990
1710~2170
Average Efficiency
(free space)
35%
45%
21%
22%
22%
Average Efficiency
(mount on metal)
44%
40%
24%
26%
26%
Gain(dBi)
(free space)
2.6
5.0
-2.2
-2.3
-2.1
Gain(dBi)
(mount on metal)
0.1
-0.3
-1.0
-1.0
-0.7
Impedance
50Ohm
Radiation Pattern
Omni-directional
Polarization
Linear
VSWR
<2.0:1
Operation Temp
-40℃~ +85℃
Storage Temp
-40℃~ +105℃
Antenna Material
300 series stainless steel with black Duracoat finish
Antenna Height
12cm
Weight
60g without cable connector
Cable Available
RG-174 / RG-178
Connector Available
SMA / SMB / SMC / TNC / FME / MCX / MMCX / N-type / Fakra



Payment Terms:TT; WU ;PAYPAL

Product Image

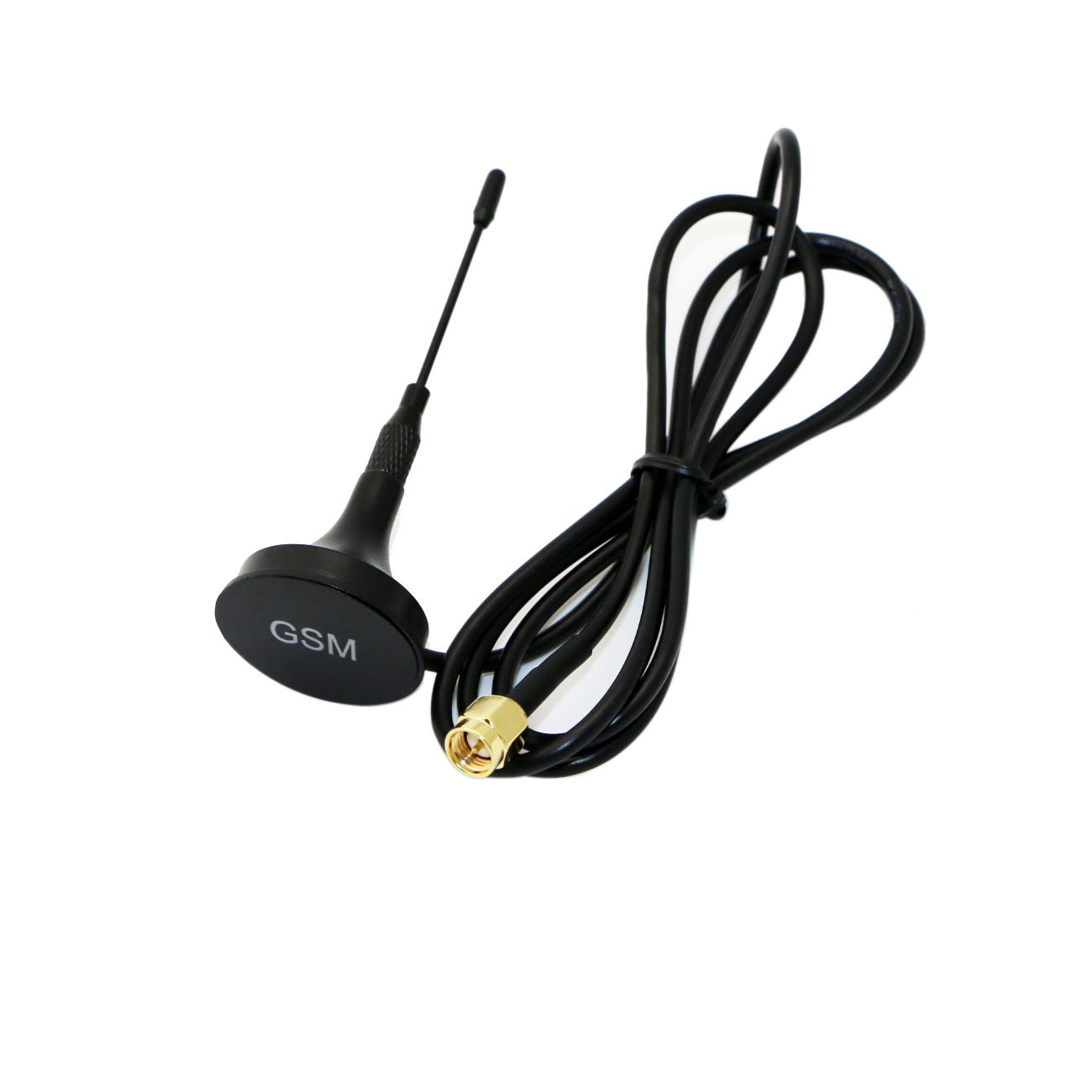

GSM GPRS sucker attenna P2 1
Img 1

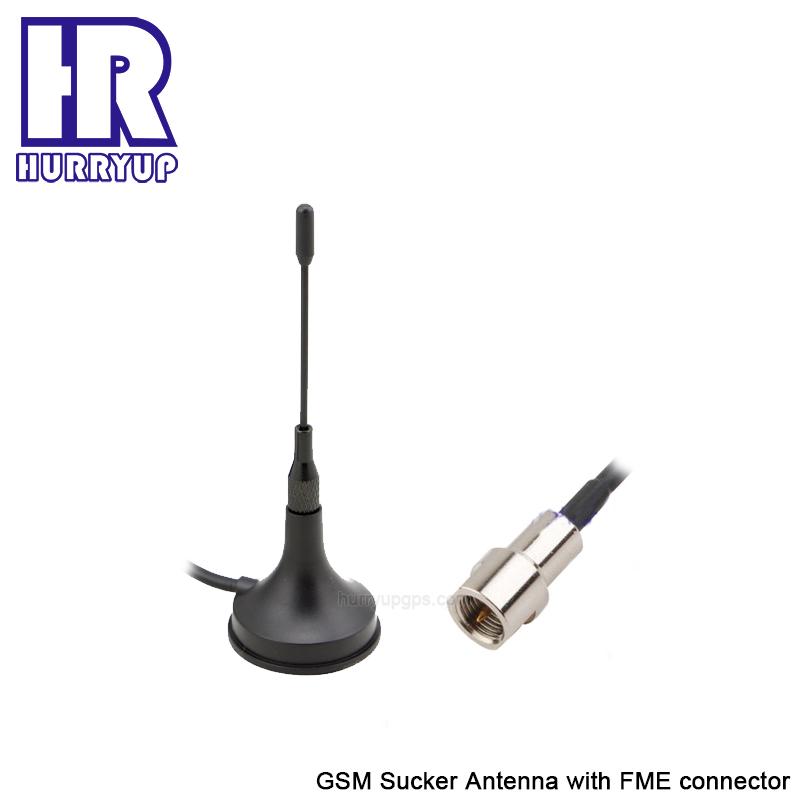

GSM GPRS sucker attenna P2 2
Img 2
GSM GPRS sucker attenna P2 3
Img 3
