| Model: | 1100 |
|---|---|
| Brand: | kexinda |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | Glazed Tile machine , Forming Machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:13 Jan, 2015 |

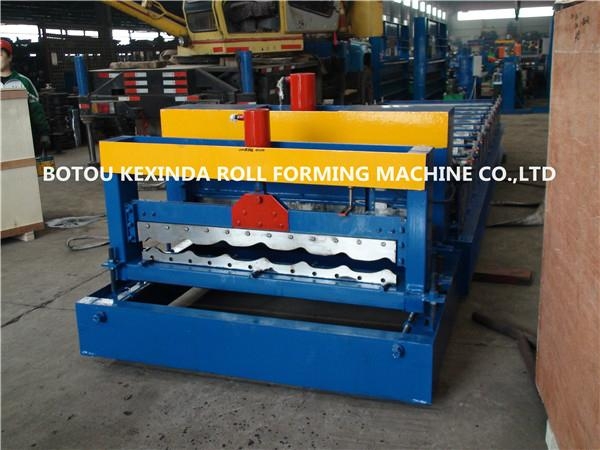

Glazed Tile Forming Machine
Model:1100 Arc Bias Glazed Tile
|
Configurations |
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
|
Control System |
PLC Delta Inverter |
|
Main Frame |
300mm H-Beam |
|
Main Power |
7.5 kw |
|
Pump Power |
5 kw |
|
Power Supply |
380V, 3-Phase,50Hz |
|
Forming Speed |
8-10m/min |
|
Roll Station |
16 stands |
|
Roller Diameter |
80mm |
|
Hydraulic Pressure |
10-12MPa |
|
Forming Size |
1100mm |
|
Feeding Thickness |
0.3-0.8mm |
|
Feeding Width |
1250mm |
|
Backboard Thickness |
14mm |
|
Chain Size |
33mm |
|
Cutter Standard |
Cr12 |
|
Roller Standard |
Cr12 |
|
Cr-Plating Size |
0.05mm |
|
Overall Size |
8700×1800×1500mm |
|
Total Weight |
7.5T |
All technical parameters can be changed, according to user s need.
