| Model: | LC-IPC2151T-5R |
|---|---|
| Brand: | Anrecson |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computers / Embedded Computer & SCM |
| Label: | all in one , industrial PC , touch panel PC |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:20 Jun, 2016 |
|

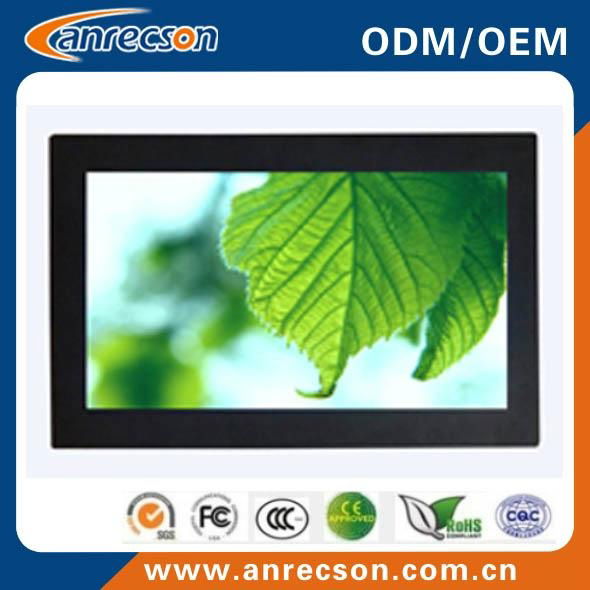

LC-IPC2151T-5R Panel PC all in one |
||
|
Specifications |
||
|
Item |
Project |
parameter |
|
LCD Display |
Display Type/Size |
Color TFT LCD/21.5″ |
|
Active Display Area (mm) |
476.64mm(W)×268.11mm(H) |
|
|
Display Mode |
16:9 |
|
|
Max Resolution |
1920×1080 |
|
|
Support Color |
16.7M |
|
|
Luminance(cd/m2) |
250cd/m² |
|
|
Backlight |
LED |
|
|
Contrast Ratio |
1000:1 |
|
|
Response Time |
5ms |
|
|
Pixel Pitch |
0.248(H)×0.248(V) |
|
|
Viewing Angle |
170/160(H/V) |
|
|
Processor System |
Chip set |
Intel N2600+NM10 |
|
CPU |
N2600 |
|
|
Video |
Intel GMA3650，640MHz |
|
|
Internal memory |
DDR3（800/1066/1333MHz）Typ. 2G (Max 4G)(optional) |
|
|
Hard disk |
16GB high speed solid state disk (optional) |
|
|
HDMI ports |
1xHDMI Ports |
|
|
COM ports |
Defaultx2 COM(optional) |
|
|
Ethernet ports |
2xRJ45 Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) |
|
|
Audio |
Realtek HD ALC269Q
|
|
|
Touch Type |
USB ports |
Defaultx4 USB(Max x6) |
|
TouchScreen Type |
Resistive( 5-wire) |
|
|
Optional Touch Type |
IR |
|
|
Power supply |
TouchScreen interface |
Serial (RS232) or USB |
|
Input Voltage |
DC12V 4A |
|
|
Temperature Range |
Output Rating |
≤28W |
|
Operating Temperature |
-20～60℃ |
|
|
Relative Humidity |
20(%RH)～90(%RH) |
|
