Product Description

Product Name Launch TLT240SBA Luxurious Floor Plate Two Post Lift



Introduction:

Launch TLT240SBA Luxurious Floor Plate Two Post Lift (Rated Capacity: 4.0Ton);



Features

     CE certificated;

     *  Fully automatic unlocking safety device is adopted for operating only with UP/DOWN button;

    * The cable and oil pipe are fully concealed; with decent and elegant appearance;

     Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting andlowering

Wire rope equalization system forces synchronous;

    * Movement of two carriages and effectively prevents vehicle form tilting;

    24V low voltage control box(IP54 level)ensures operator's safety;

    Cylinder travel limit switch effectively protects cylinder and extends its lifespan;

    Emergency lowering valve can be manually operated to make lift lower safely in case power is off;

    Flow-control valve is deployed to make lift slower or stop lowering for the case of oil explosion              ,thus protects operator's safety and vehicle not being damaged;

    CE-STOP function with safety alarm beep would;

    * Automatically warn operators to keep safe distance from lift when it lowers to about 250mm high              from ground;

    Door rubber pad protects car door from being damaged in collision;

    More lifting pads with different height meets the requirements for light lorries and SUVs;


Asymmetric swing arms are optional;

    Passed 115% dynamic loading test and 150% static loading test;


Specification

    1. Rated load:4000kg

    2.Lifting height:1950mm

    3.Initial height:   110mm

    4.Lifting time:≤50s

    5.Lowering time:≥20s≤40s

    6.Passing width:2486mm

    7.Overall width: 3370mm

    8.Overall height:2860mm

   9.Motor power :2. 2kw

  10. Motor voltage:3 phase/380v or Single phase/220V

  11. Working noise:≤75dB(A)

  12. Working oil pressure: 18M Pa


After Sale Service :

Three years product quality warranty

1) Free update during three years;

2) Free repair and maintenance service in one year;

3) Free technical support by internet or via phone.

If you have any interests in it, pls contact us directly.

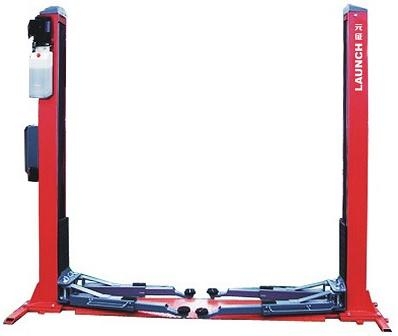

Product Image
