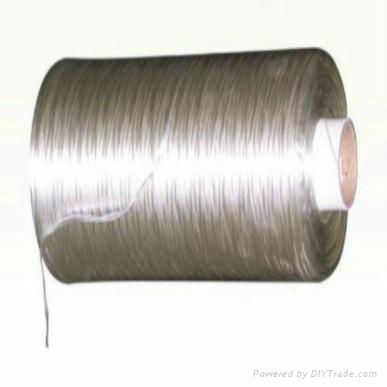

Low dielectric loss glass fiber
Low dielectric names D glass fiber, have D3, Dk series. It is low density, low dielectric constant and low dielectric loss. It is an ideal reinforcement for making light weight and high performance radomes with high wave permeability and wide frequency band and print circuit board etc...
Specifications D glass fiber
|
Items |
D3 |
Dk |
|
Density g/cm3 |
2.30 |
2.30 |
|
Strength of virgin filament Mpa |
≥2600 |
≥2600 |
|
Elastic modulus GPa |
﹥55 |
﹥55 |
|
Dielectric constant 22℃10^10HZ |
≦4.5 |
≦5.0 |
|
Dielectric loss 22℃10^10HZ |
﹤0.0035 |
﹤0.0035 |
D glass fiber fabric
|
Specification |
D3 |
Dk |
|
|
Thickness mm |
0.22 |
0.22 |
|
|
Weight g/m2 |
210 |
210 |
|
|
Breaking strength N/100*25 |
Warp |
≥1350 |
≥1450 |
|
Weft fill |
≥1000 |
≥1050 |
|
