ZSY Hard gear face cylindrical gear speed reducer

Model:ZSY Series
Brand:TAILONG DECELERATOR
Origin:Made In China
Category:Industrial Supplies / Machinery / Transmission
Label:TAILONG DECELERATOR , TAILONG REDUCER , JIANGSU TAILONG
Price: US $147300 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

JIANGSU TAILONG DECELERATOR MACHINERY CO.,LTD

Biz MemberJiang Su - China
Live Chat:
点击这里给我发消息Last Online:03 Apr, 2020

Product Description

Summarization:
This product is an outer meshed involute helical tooth cylindrical gear speed reducer.
It is widely applied to the fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc.
The suitable scope of speed reducer is as follows:
1.The rotation of high speed shaft should not be more than 1500rpm;
2.The circumferential velocity of gear transmission should not be more than 20,/sec;
3.The temperature of work environment should be -40-45℃. If below 0℃, before start, the lubricating oil should be pre-heated to above 0℃. This speed reducer can be run at clockwise and counterclockwise direction.

Characteristics:
1.The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance;
2.High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;
3.Smooth and stable in run, low noise;
4.Compact, light, long life, high bearing capacity;
5.Easy to disassemble, inspect and assemble.

Type, specification of speed reducer and its expressed method

1. The type has ZSY three-stage cylindrical gear speed reducer
2. Specification has: Three-level: 160, 180, 200, 224, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710, 800,900

3. Ratio:
   1:22.4    1:25   1:28   1:31.5   1:35.5  1:40   1:45    1:50    1:56    1:63    1:71     1:80      1: 90    1:100


Price Terms:FOB Shanghai
Payment Terms:TT / LC
Packing: plywood case
Lead Time:35 days
SKU:80
Standards Certificate:ISO9002

Product Image

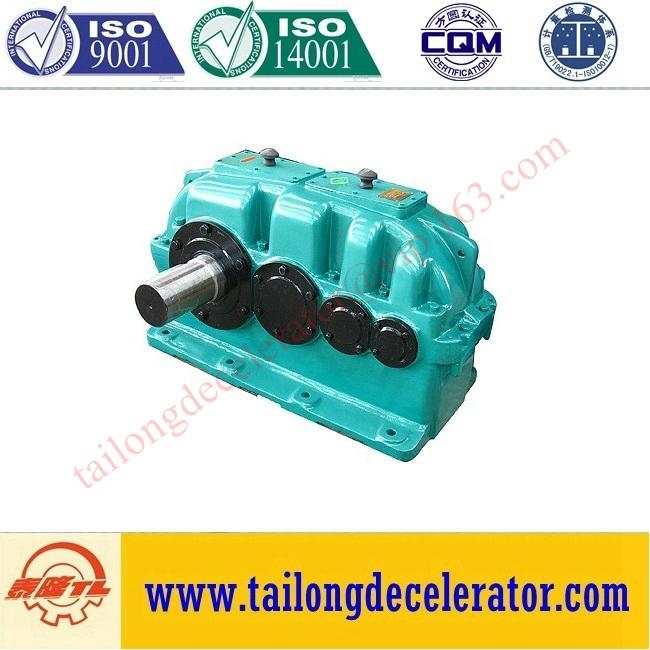

ZSY Hard gear face cylindrical gear speed reducer 1
Img 1

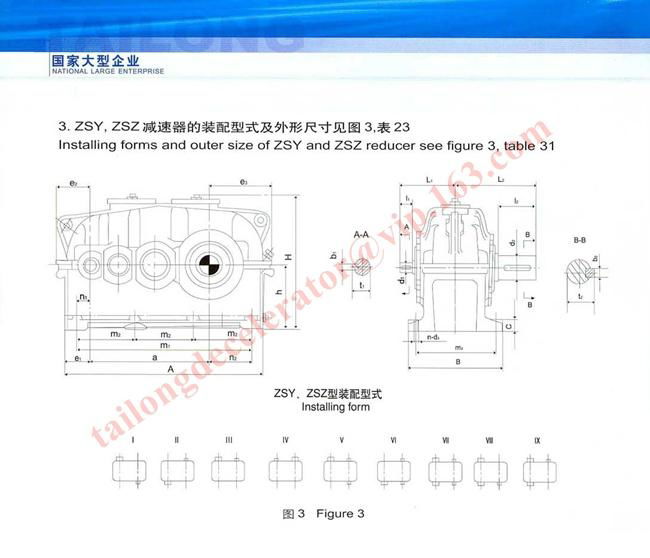

ZSY Hard gear face cylindrical gear speed reducer 2
Img 2
ZSY Hard gear face cylindrical gear speed reducer 3
Img 3
ZSY Hard gear face cylindrical gear speed reducer 4
Img 4
ZSY Hard gear face cylindrical gear speed reducer 5
Img 5
