Nagra3 Azamerica S922 HD dvb-s2 Satellite Decoder
Product Description
Nagra3 Azamerica S922 HD dvb-s2 Satellite Decoder
General Specifications of Azamerica S922:
v Twin tuner with IKS&SKS receiver
v Full HD DVB-S2 Support 1080P and MPEG-4
v Support CAS/USB/PVR
v Support Etherent/wifi
- Ø Acess¨®rios entree (SMB.003.0X), 42 keys IRcontrolador USB HDD Box (customer's choice) board configuration MIPS 396MHz CPU, 128MB DDR400 RAM, speed mem¨®ria 198Mhz, 2MB flash s¨| rie, ¨²nico tuner demodulator DVB-S2
- Ø Power Supply Input 100V ~ 240V 50 / 60Hz
- Ø Power Consumption 30W Max / 1W Standby
- Ø Standard Receiver DVB-S2 standard (ETSI EN 302 307)
- Ø Frequ¨ºncia Input Range 950MHz ~ 2150MHz
- Ø N¨ªvel input-25dBm ~ -65dBm
- Ø Demodulation QPSK, 8PSK, 16APSK
- Ø Transport Stream MPEG-2 ISO / IEC 13818 Transport Stream Specification
- Ø Profile N¨ªvel MPEG MPEG2 SD, MPEG2 SD, HD H 264 / AVC, H264 / AVC HD
- Ø LNB Power & Polarization Vertical 13.5V, 18V Horizontal, Current: 500mA ¢ m ximo
- Ø Multi Sat¨|lite switcher receive 22K, DiSEqC 1.0, DiSEqC1.2, USAL
- Ø Conditional Access System two common interface slots
- Ø Sa¨ªda A / V ports YPbPr, RCA with CVBS, SCART with CVBS, HDMI (HDCP), Left / Right sa¨ªda
- Ø ¨ ¢ anal¨®gica audio (RCA), sa¨ªda ¨ ¢ digital audio (SPDIF with coaxial or fiber)
- Ø Auto Aspect Ratio, Pillar Box 16: 9, 4: 3 Pan & Scan, 4: 3 Letter Box
- Ø Decoding MPEG1 Audio Layer I, MPEG1 Layer II, MPEG1 Layer III
Packing :
1xS922 receiver
1x remote control
1*User Menual
1*AV line

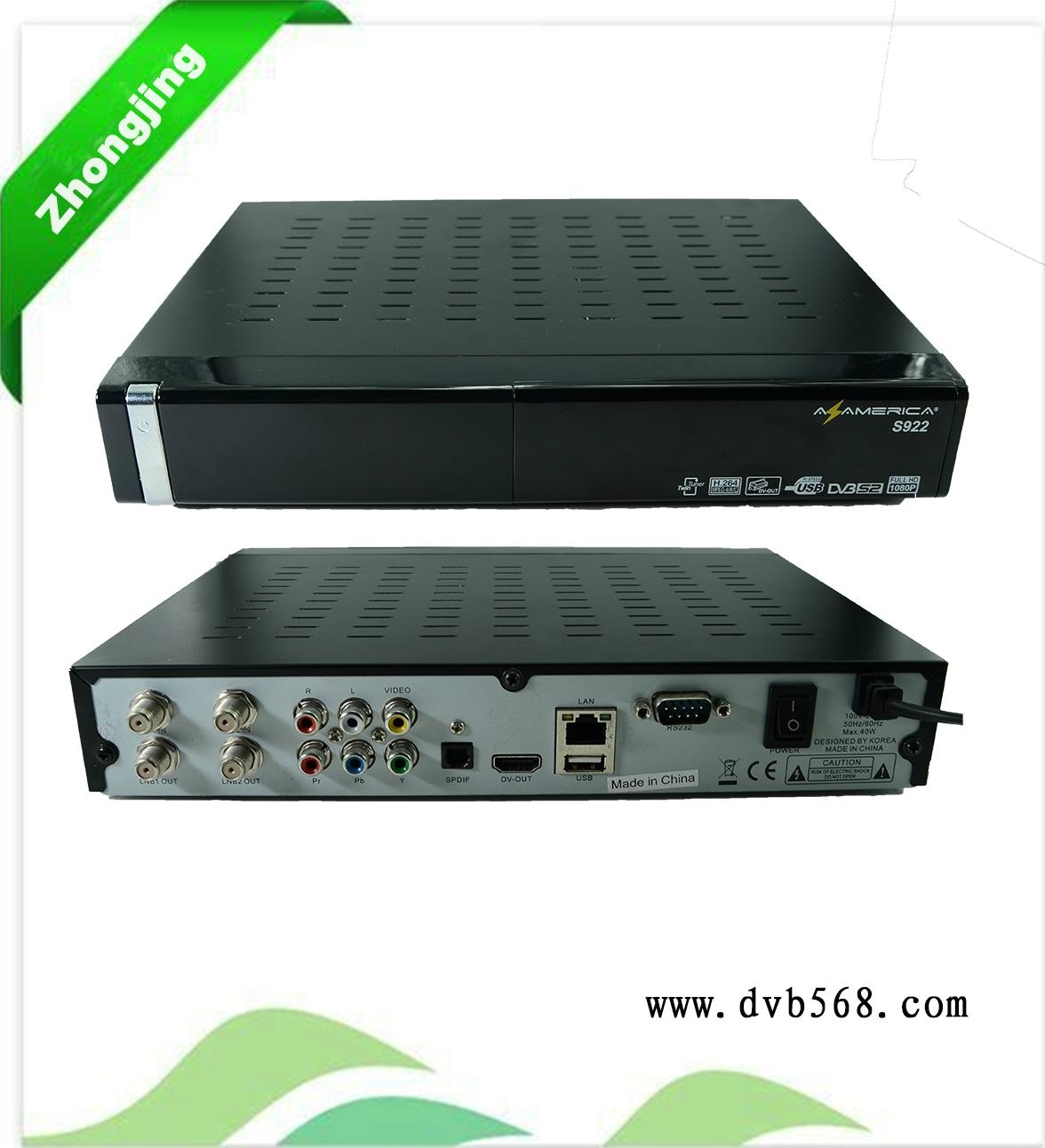

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
