EcoPura Engage in Reverse Osmosis ( RO ) Water Treatment Plant, Ultrafiltration Water System, Brackish Water Purification System, Water Filter System, Water treatment Equipment, Water Desalination System, Water Purifying Solutions.

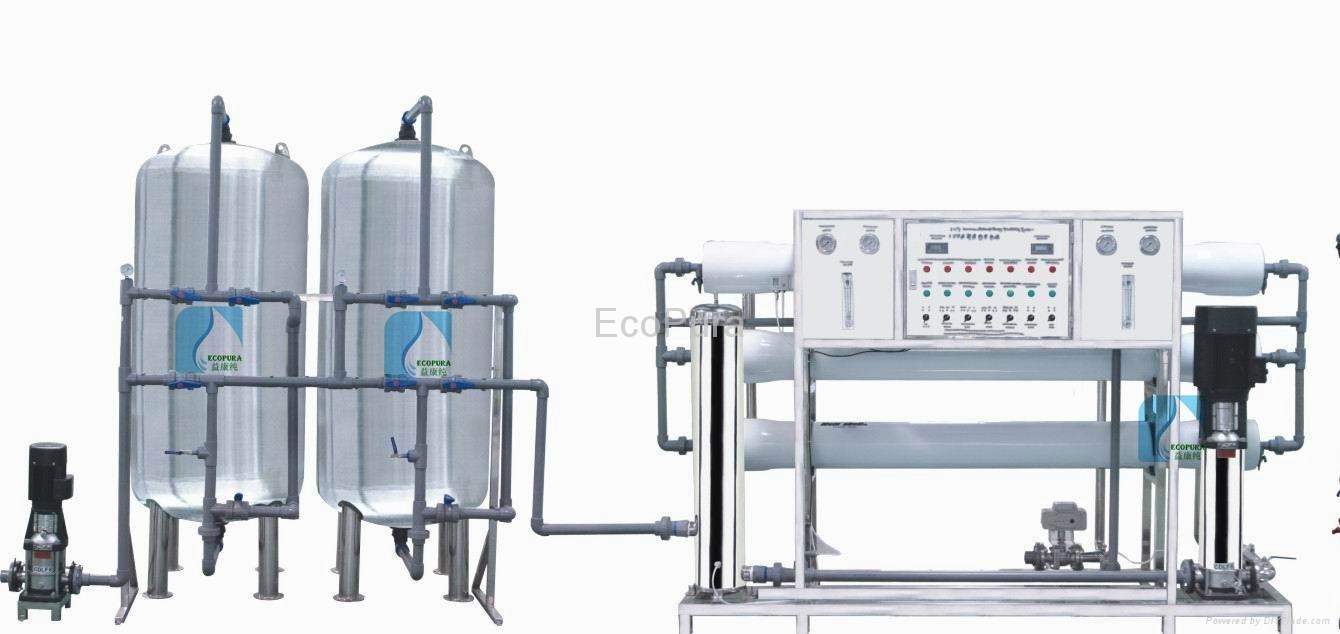

Reverse Osmosis water treatment machine: RO-1000I(8, 000L/H)
Multi-stage media filtration for pre-treatment, and RO unit for main filtration, polishing treatment of UV system and Ozone system.
General features:
1) RO system automatic control for flush and backwash. With Auto water softener.
2) C. I. P. Chemical cleaning system for RO membrane.
3) Chemical dosing port for unti-scaling and pH adjustment for optional choice.
4) U-PVC pipe and fitting for low pressure part, SS304 pipe for high pressure part.
5) LG PLC control system with water level control, Touch Screen Avialable
6) Auto pump protection for electric shortage, pressure protection, water level protection.
Water application:
1) Suitable water source: Tap water, surface well water
2) Inlet water TDS limit: Below 2000ppm (for other water source, please provide us water report for detailed analysis for choosing other brand of RO membrane)
3) Water recovery ratio: 70%
4) RO membrane salt rejection ratio: 99.6%
5) Treated water TDS range: 30 to 50ppm. (Bottled water standard)
| Parameters | |
| Product | Single Pass RO(Reverse Osmosis) water treatment system |
| Model | RO-1000i(8000L/H) |
| Pure Water Production Capacity | 8000 litre per hour(25°C) |
| Input water quality | TDS≤12000PPM(recommended) |
| Salt Rejection Rate | ≥97% |
| Recovery Rate(pure water : inlet water) | 50~75% |
| Working Temp. | 5~35°C |
| Input Power(standard) | AC380V / 50Hz / 15.0KW |
| Pre-treatment | |
| Quartz Sand Filter | Fiber glass tank Φ1000×1800mm×1PC including 1500KG quartz sand Or optional Φ1000×2000mm(t3.0mm) SUS304 stainless tank |
| Active Carbon Filter | Fiber glass tank Φ1000×1800mm×1PC including 500KG activated carbon Or optional Φ1000×2000mm(t3.0mm) SUS304 stainless tank |
| Water softener | Φ530×1500mm fiber glass tank with 200L food-grade resin and 180 automatic control valve (Total hardness≤300PPM) |
| Micron PP Filter | SUS304 tank Φ330×1000×t1.5 (including 5u×1000 PP filter × 8PCS) |
| Booster Pump | China Nanfang CHL16-30 pump×1PC / 3.0KW
Or optional Denmark GRUNDFOS CR15-3 pump×1PC / 3.0KW |
| Multi-stage Pump | China Nanfang CDL8-140 pump×1PC / 11.0KW
Or optional Denmark GRUNDFOS CR15-12 pump×1PC / 11.0KW |
| RO System | |
| Membrane | U.S. DOW FILMTEC BLACKISH Water Series BW30-400×8PCS
or HYDRANAUTIC ESPA1-8040×8PCS |
| Housing | SUS304 stainless steel 4040 housing×4PCS |
| Accessories | |
| Piping | U-PVC quick connection |
| Structure | Full SUS304 stainless steel 40160 housing×2PCS |
| Electrical Parts | China Tengen
Or optional SIEMENS / MISTSUBISHI / ABB |
| Others | Flow metre, TDS metre, pressure metre, electromagnetic valve, etc. |
| OPTIONAL | Chemical dosing system, UV sterilizer, ozone sterilizer, and built-in RO membrane washing device |
