| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter |
| Label: | Vortex flow meter , gas flow meter , flow meter |
| Price: |
US $196.72
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:30 Oct, 2015 |

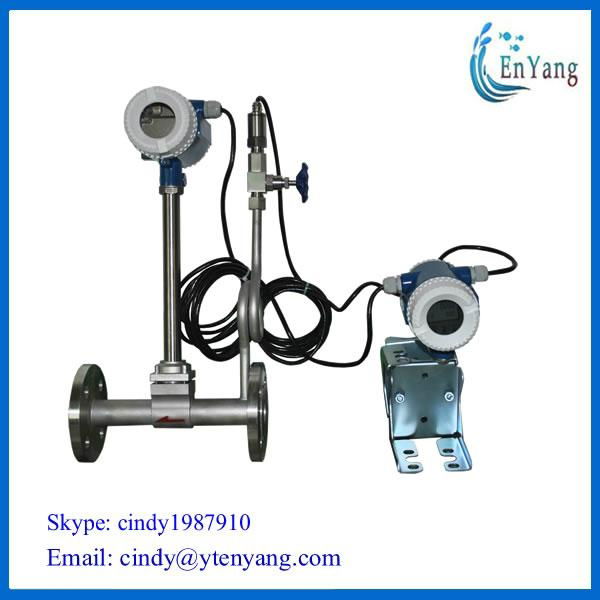

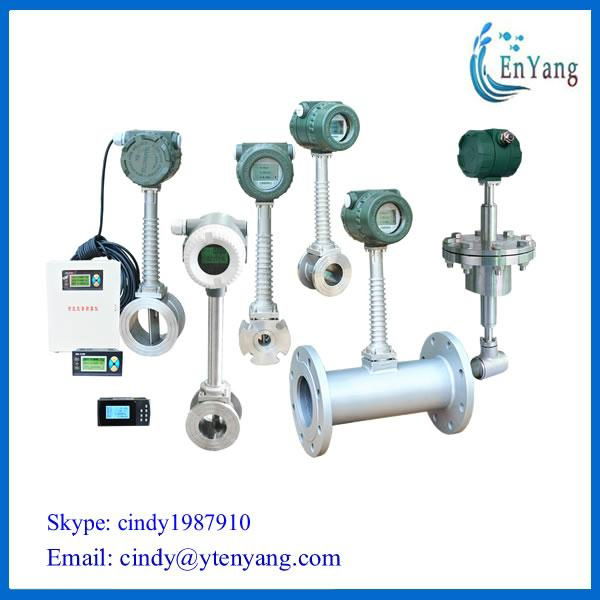

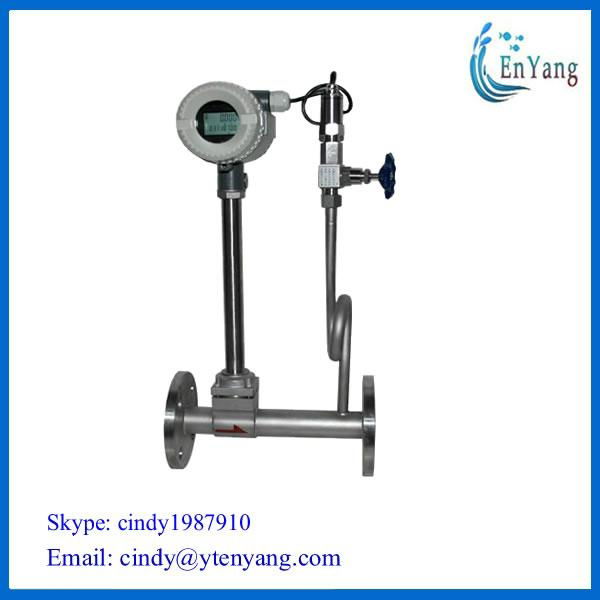

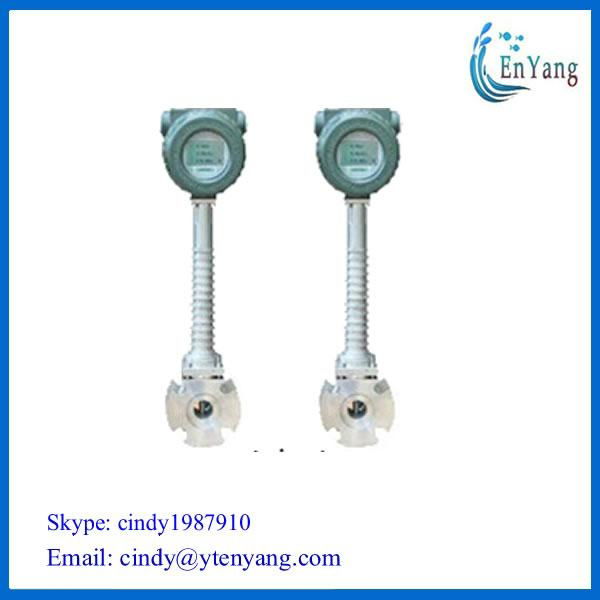

Vortex Flow meter
Vortex Flowmeter is used to measure the flow of liquids, Gases or Steam in pipelines. Its characteristics are no pressure loss, no moving parts and no maintenance. Though it is similar to Electro Magnetic Flowmeter the one advantage Vortex Meter has over EMF is the medium need not be conductive as in the case of EMF. This flowmeter adopts piezoelectric sensor, has high reliability, and works with in –200C to +2500C. It gives standard analogue signal (4 ~ 20mA) or Digital pulse signal outputs. It is compatible with digital systems like Computer, DCS Systems, Dataloggers, etc.
Features:
-Medium: Superheated Steam, Saturated Steam, Compressed Air, water, other gases and liquids.
-Accuracy: +/-1.0% (liquid), +/-1.5% (gas)
-Rated Pressure (optional): 1.6MPa, 2.5MPa, 4.0MPa
-Temperature of Medium: -40°C~+350°C
-Operated Power: 24V DC, Built in battery (can work lasting for 2 years)
-Output Signal (optional): 4-20mA, RS-485, HART
-Protection Grade: IP65
-Ambient Temperature: -40°C~+60°C (without LCD), 0°C~+60°C (with LCD)
-Ex-proof: Exd II BT3-6
- oil flow switch, gear flow meter, oval gear flow meter
Technical Specifications:
|
Standard adopted |
Q/YHC0401-2001 JB/T6807-93 |
|
||||||||
|
Medium |
Gas, liquid, steam |
|
||||||||
|
Diameter: Wafer Type (mm) Flange Type Insertion Type |
15, 25, 30, 40, 50, 65, 80, 100 125, 150, 200 200 ~ 2000 |
|
||||||||
|
flow measuring scope |
Normal flow velocity range |
Gas 5~50m/s liquid 0.5~7m/s |
|
|||||||
|
Normal flowrate range |
Liquid, gas, steam and insertion type flow range refer to table 2,3,4 |
|
||||||||
|
Accuracy |
±1% depending on the site conditions |
|
||||||||
|
Medium temperature |
0 0 Routine temperature –25 C ~ 100 C; High temperature - 0 0 25 C ~ 250 C |
|
||||||||
|
Working pressure |
1.6MPa; 2.5MPa; 4.0MPa (Supplied as per order) |
|
||||||||
|
Output signal (signal cable connection is M20×1.5 ) |
Pulse voltage output signal |
High level8~10V Low level0.7~1.3V (Ex-proof version: High level 4~5V, Low level 0.7~1.3V) Duty ratio of pulse is about 50%, transmission distance 100 meters |
|
|||||||
|
Standard current output signal |
Allowable external load resistance less than600Ω(24V DC) Transmission distance is 3000 meters |
|
||||||||
|
Working environmental condition |
0 0 0 Temperature: -25 C ~ +55 C; Humidity: 5~90% RH50 C |
|
||||||||
|
Material |
Meter body:1Cr18Ni9Ti Converter housing: AL-alloy |
|
||||||||
|
Power supply |
12V DC±10%; 24V DC±10%; or dual lithium battery 3.6V 7.5Ah |
|
||||||||
|
Explosion supply grade |
Intrinsically safe class iaIIc T1-T5 |
|
||||||||
|
Protection Grade |
IP65 |
|
||||||||
|
Requirement of straight lengths |
Upstream≥15~35DN; Downstream ≥10DN |
|
||||||||
|
Flowrate Range of Liquid, Gas (on working condition) Table 2 |
|
|||||||||
|
Media Liquid Air |
DN mm m3/h m3/h |
15 0.3~4 5~30 |
25 1.2~13 10.2~80 |
32 1.5~18 15~150 |
40 2.25~30 22~220 |
50 4~50 35~350 |
65 5.9~84 60~600 |
|
||
|
Media Liquid Air |
DN mm m3/h m3/h |
80 9~120 90~900 |
100 14~200 140~1400 |
125 22~280 220~2200 |
150 28~400 300~3000 |
200 65~700 550~5500 |
|
|
||
