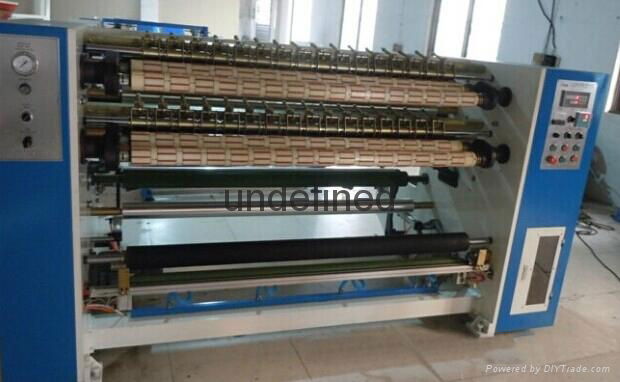

Application：Using for Bopp tape slitting
Technical Data：
Efficate width: 1350mm(1600mm)
 Maximum unwinding diatmeter: 700mm
 slitting widh: 8-1280mm
 paper core diameter: 3″（1″）
 rewinding diameter  four shafts≤150mm
            two shafts≤300mm

slitting knives  δ0.2mm
 speed: 0-180M/min
 power: 5HP

voltage： 3 phase 380V
 dimension：2.3×1.5×1.4M
weight：1600KG

Features:
1. The three sections of the electronic counter to control the length precision.
2. Automatic and manual two types of exchange axis mode, simple operation.
3. The use of inverter variable speed control operations, concentrated panel operation, easy to understand.
4. arch flattening roll for wrinkle materials.
5. The raw materials used on the rear upload, ease of handling semi-product, pneumatic braking, easy adjustment.
6. imports of electrical, safety and reliability.
